Precision Stainless Steel Welded Pipe Mill

Product Description

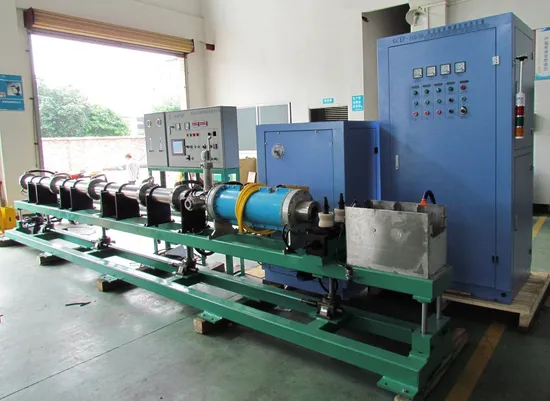

Precision Stainless Steel Welded Pipe Mill
Precision stainless steel welded pipe mill adopts precise forming machine. It processes the steel sheet to the pipe. After welding, welding seam internal grinding, industrial black rust annealing, the industrial stainless welded pipe is produced. The welding seam of this pipe is very strong, no matter bending or flatten. It will not have the crack.
Precision stainless steel welded pipe mill is mainly used for manufacturing the industrial pipe in chemical, car, oil, and other fields. The pipe requirement on the material and quality is very strict. The machine has internal welding seam leveling treatment, solution annealing, X-ray detector, UT detector, high pressure hydrotester, and other detector equipments and art craft.
Model:

No.	Model	OD (mm)	Speed (m/min)	Thickness (mm)	Capacity(kw)	Area(M2)
1	HNBXG-32	Φ15~Φ32	0.1~2.0	1.0~2.5	~40	18×100
2	HNBXG-50	Φ21~Φ50	0.1~2.0	1.0~4.0	~45	18×100
3	HNBXG-60	Φ25~Φ60	0.1~2.0	1.5~4.5	~50	18×100
4	HNBXG-76	Φ32~Φ76	0.1~2.0	1.5~5.0	~55	18×120
5	HNBXG-89	Φ36~Φ89	0.1~2.0	2.0~6.0	~60	18×120
6	HNBXG-114	Φ50~Φ114	0.1~1.8	2.0~7.0	~70	18×120
7	HNBXG-127	Φ50~Φ127	0.1~1.8	2.0~7.0	~70	18×120
8	HNBXG-140	Φ60~Φ140	0.1~1.8	2.0~8.0	~75	18×120
9	HNBXG-165	Φ76~Φ165	0.1~1.8	2.0~8.0	~80	18×150

Process:
Uncoiler-Cutting and Welding-Small Accumulator-Forming-PPT Welding-Internal Welding Seam Leveling-Online Annealing-Water Cooling-Sizing-Cut to Length- Eddy Current Detector-Hydrotester-Solution Treatment-Acid Pickling Passivating-Weighting, Measuring, Marking-Pipe Collection
Packing & Shipping
1. We use steel wire and wooden frame to fix the pipe mill.
2. In addition, used shockproof film to protect the main motors.
3. We use containers for shipping.
4. Generally speaking, we start at Tianjin sea port, but we also can start at other port according to customers need.
Our Factory
Our Customer
Integrated Services
1. Provide customers with a reasonable investment plan, filter the appropriate models recommended to customers.
2. Free equipment drawings, customer plant equipment planning drawings.
3. Provide the base map required for installation free of charge.
4. Provide equipment installation and commissioning until the buyer operates normally.
5. Provide professional technical training, as soon as possible to allow the buyer's operator to master the operation and use of the equipment.
6. Provide and coordinate auxiliary equipment, accessories, and consumables.
7. The warranty period is one year, except man-damage. If you have any question in operation in operating the machines, you can call us or send emails, we will solve the problem for you asap.
