Complete 1T/H Wood Pellet Production Machine Cost
1. Complete 1T/H Wood Pellet Production Machine Cost Specification:
This 0.5-20T/H Complete wood pellet line for make pellet wood line can make the pellets from the rice husk, sunflower husk, wood chips, coffee husk etc . it also can collet the material , mix and adjust the quality to make small and roundish pellets. The technological process is rational in succession. Every unit's performance is good. the aricrew cooperation is compact. The whole line take small area and has small energy consumption. It also can make pellets from all kinds of wood shaving, sawdust too.
It mainly contains Chipping-Crush process-Drying process--- pellet making process---cooling process--- packing process and waste air handing process(optional), The final pellet has good quality and meet the europe standard.
The diameter of the pellets can be 6mm,8mm,10mm,12mm, the length can be adjusted according to the requirement of the client, for example 4cm,8cm,12cm
2. Complete 1T/H Wood Pellet Production Machine Cost Commercial Terms:
1. Packing : by full container .
2. Manufacturing time: in 30 days
3. Period of validity of the price: in 3 months. After this term, we reserve the right to revise our prices.
4. Time of delivery: In 1 month after receipting the deposit.
5. Payment Terms : 40% by T/T as deposit, the balance against the copy of B/L. or 100% by irrevocable L/C at sight .
3.Complete 1T/H Wood Pellet Production Machine Cost Flow chart & Details

Wood Debarking system	Debarking wood barks
Wood Chipping system	to chip the wood logs into small wood chips
Wood Crushing system	crush the wood chips into small sawdust
Drying system	the best moisture to make wood pellets is 12-15%, so the dryer use for drying the wet sawdust from moisture around 50% into 12-15%, our dryer is the three-layer dryer . save place and more high-efficiency

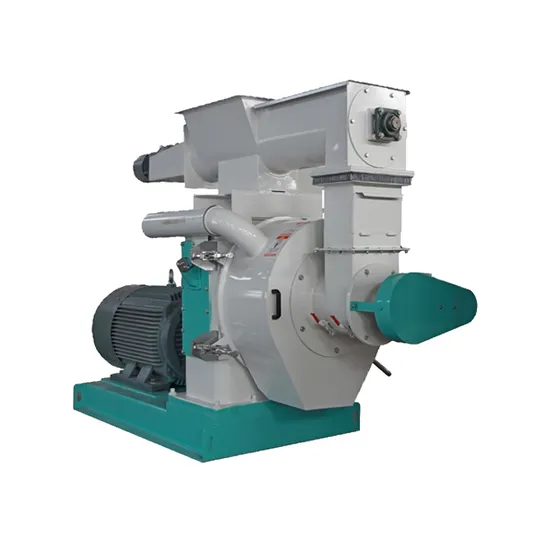

Wood Pelleting system	Main Machine, Make the dried sawdust into small wood pellets, the pellets diameter can be 6-12mm , just only change the ring die mould ( matrix) is ok . our wood pellet mill adopt gear driven , it is more strongly and higher capacity , the pellet machine already include the automatic lubrication machine ( automatic add grease for the bearings ), and the oil cooling device ( automaticlly cooling down the gear lubrication oil ), the main motor is 8 pole motor
Cooling system	after the wood pellets come out from pellet mill, it with high temperature , our counter-flow pellet cooler can cooling down the pellets to the room temperature . to ensure the wood pellets better storage , and wood pellets will not easy broken .
Screening system	screener can remove the dust from the wood pellets.
Packing system	packing machine can pack the wood pellets into small bags , packing range can be 15-50kg /bag . also can match the ton bags packing system .
Other machines	other machines will be include the conveyor, airfan, cyclone, connect pipes, silo, and so on .

Fow chart: Wood chipping-Crushing-Drying-Pelleting-Cooling-Packing System

(7) Waste air process system (optional) Dust collector :
Pluse Bag Dust Filter:
1.An unique jet device,which is equipped with a dismountable cabinet and built-in envelops,easy for maintenance.
2.Up to 1 m2 filtration area Of each bag enables its installation in a small space.
3.Compact design and high dusting efficiency(up to 99.5%),etc.
4.Widely applied for unit-machine dusting at a dump pit,a grinde,the inlet or for central dust control as well as for fines recovery in a pneumatic conveying system in grain milling and feed manufacturing industries.
5.AdditionaI applications for dust control in light industry,chemical industry,mines etc.
Our Service :
We can spply the CO, FORM A, FORME E, FORM F, FORM P certificate of original for you, it may can save you some import tax .
FAQ :
1. What kind of raw materials can be use for make pellets ?
any agriculture waste ,like wood logs, wood chips, wood shaving, sawdust, straw,rice husk and so on .
2. What about the capacity of the pellet plant you have ?
we have the pellet line from 200kg per hour till 10 ton per hour . can design according to customer requirement and raw materials.
Complete 1T/H Wood Pellet Production Machine Cost More Photos :
