High Performance 1800Mbps 5g 11ax Wireless Access Point for IoT Project

Product Description

Short Specification

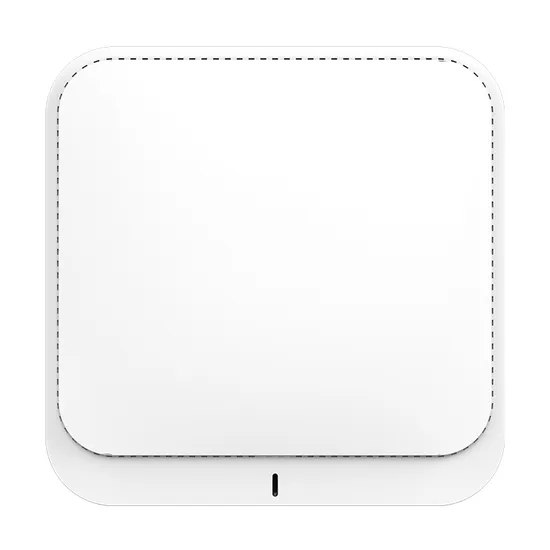

AX840 is an 11ax Wi-Fi standard Qualcomm Chipset high power industrial Ceiling Wireless Access Point support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming. Combined 1800Mbps Wi-Fi speed voer 2 radios: 2.4GHz(600Mbps 11ax 2*2)+5GHz(1200Mbps 2*2), equipped Gigabit WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation, faster Ethernet data rate and more users, then multiple users can upload or download multiple packets at same time, narrower subcarrier spacing and longer symbol time, improved the stability and data processing efficiency, publicly to be used in high density access environment such as university campus, concert venue, gymnasium, etc.
Main Features:
1. Comply with IEEE 802.11ax/ac/b/g/n, dual band, 1800Mbps Data Rate
2. With IPQ6000 , Flash: SPI NOR 8MB (1.8v) + NAND 128MB, greatly improved the data processing performance.
3. 1*10/100/1000Mbps WAN Port, 1*10/100/1000Mbps LAN Port, faster Ethernet.
4. With Skyworks power amplifier and FEM, 300mW high power, build in 3dBi MIMO antenna, stronger signal strength, more wireless coverage.
5. Support active IEEE 802.3at 48V PoE standard Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better
Hardware Specification

Model	AX840-P5
CPU	Qualcomm
Flash	SPI NOR 8MB
DDR3	512MB*1
Nand Flash	128MB
2.4G RF	QCN5022-2.4G external FEM
5.8G RF	QCN5052-5.8G external FEM
2.4G Frequency	2.4GHz - 2.484GHz
2.4G Protocol	802.11 b / g / n /ax
5G Frequency	5.150GHz~5.850GHz
5G Protocol	802.11 a / n / ac /ax
Antenna	4*2.4G/5.8G dual band: 3 dBi+
Data Rate	2.4G 574Mbps MIMO 2*2,5G 2402Mbps MIMO 2*2
2.4G TX Power	802.11b	11M	23±2dBm	1M	23±2dBm
	802.11g	54M	23±2dBm	6M	23±2dBm
	802.11n HT20	MCS7	22±2dBm	MCS0	23±2dBm
	802.11n HT40	MCS7	21±2dBm	MCS0	22±2dBm
	802.11ax HE20	MCS11	20±2dBm	MCS0	21±2dBm
	802.11ax HE40	MCS11	19±2dBm	MCS0	20±2dBm
5G TX Power	802.11a	54M	23±2dBm	6M	23±2dBm
	802.11n HT20	MCS7	22±2dBm	MCS0	22±2dBm
	802.11n HT40	MCS7	21±2dBm	MCS0	22±2dBm
	802.11ac VHT20	MCS9	21±2dBm	MCS0	22±2dBm
	802.11ac VHT40	MCS9	20±2dBm	MCS0	21±2dBm
	802.11ac VHT80	MCS9	19±2dBm	MCS0	20±2dBm
	802.11ax HE20	MCS11	20±2dBm	MCS0	21±2dBm
	802.11ax HE40	MCS11	19±2dBm	MCS0	20±2dBm
	802.11ax HE80	MCS11	18±2dBm	MCS0	19±2dBm
2.4G Receiving Sensitivity	802.11b	11M	-90dBm	1M	-98dBm
	802.11g	54M	-77dBm	6M	-93dBm
	802.11n HT20	MCS7	-72dBm	MCS0	-92dBm
	802.11n HT40	MCS7	-71dBm	MCS0	-90dBm
	802.11ax HE20	MCS11	-63dBm	MCS0	-93dBm
	802.11ax HE40	MCS11	-60dBm	MCS0	-91dBm
5G Receiving Sensitivity	802.11a	54M	-77dBm	6M	-95dBm
	802.11n HT20	MCS7	-75dBm	MCS0	-93dBm
	802.11n HT40	MCS7	-72dBm	MCS0	-91dBm
	802.11ac VHT20	MCS7	-74dBm	MCS0	-93dBm
	802.11ac VHT40	MCS7	-72dBm	MCS0	-91dBm
	802.11ac VHT80	MCS9	-62dBm	MCS0	-88dBm
	802.11ax HE20	MCS11	-63dBm	MCS0	-93dBm
	802.11ax HE40	MCS11	-60dBm	MCS0	-90dBm
	802.11ax HE80	MCS11	-56dBm	MCS0	-87dBm
2.4G EVM	802.11b: ≤-10 dB ;802.11g: ≤-25 dB ;802.11n: ≤-28dB ; 802.11ax: ≤-35 dB
5G EVM	802.11a: ≤-25 dB ;802.11n: ≤-28 dB ;802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB
ppm	±20ppm
WAN	1*10/100/1000M RJ45, support 48V PoE
LAN	1*10/100/1000M RJ45
Reset	Reset to factory settings by pressing 6-10 seconds
Indicators	WAN, LAN, tricolor LED(sys-red, 2.4G-green, 5.8G-blue)
Power	DC2.0 12V 2A,PoE 802.3at
Max Power Consumption	< 14W
Dimension	198mm×198mm×42.5mm
Weight	0.9kg
Temperature	Working: -20°C to 55°C;Storage: -40°C to 70°C;Humidity: 5%~95%(Non-Condensing)
ESD	Air:±8K, Touch:±4K
Electrical Surge	Common Mode: 2K, Differential Mode: 1K

Application
Accessory

AP	1
Lan cable	1
Mounting Accessories	1
Gift Box	1
