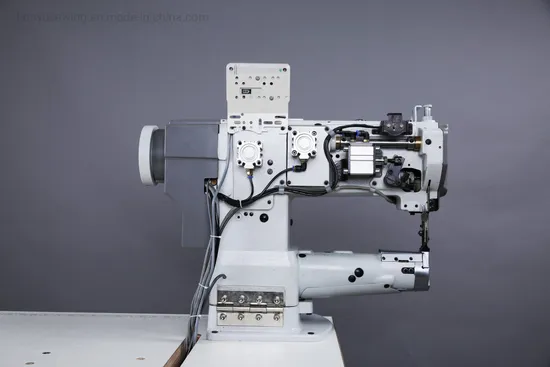

HY-1341B-7 Direct Drive Cylinder Bed, Single Needle Compound Feed Sewing Machine

Product Description

Walking foot leather industrial sewing machine, cylinder bed sewing machine
HY-1341B-7 Direct drive cylinder bed, single needle compound feed sewing machine

Model No.	HY-1341B-7
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2500 s.p.m
Shuttle diameter	Ф26mm
Diameter of cylinder	80mm
Applied needle	DP×17 #18-#23
Max stitch length	9mm
Max alternating presser foot	6.5mm
Max presser foot lifting height	16mm
Auto trimming	√
Auto back tacking	√
Auto oil system	√
Presser foot lifting height by air	√
DL function	√
Operation space	255×103mm

Product Description:
1. Integrated safe and sensitive direct drive servo motor and pneumatic controller components, more stable independent control box.
2. Automatic functions like auto trimming, auto back tacking, auto oil supply and pneumatic presser foot lifting,make the daily sewingeasier and more efficient.
3. Powerful and effective feeding system with alternating presser foot, feed dog and needle feeding.
4. It can adjust instantaneously internal and external presser foot alternating amount by shortcut button, which is helpful to sew various thickness of different fabrics.
Typical Field of Application:
It's suitable for bags or small material sewing.
Product Advantages:
1. Precise thread trimmer:The knife trimming structure makes the trimming more powerful and stable.
2. DL function:
(1) Transform the maximum presser foot alternating amount 6.5mm by one-click.
(2) When the sewing reaches the position between up and down step, pressing the DL switch can transform instantaneously maximum internal and external presser foot alternating amount, it will form the perfect stitch effect. 3.Pneumatic presser foot lifting:The lifting height of the presser foot can be up to 16mm, which is convenient and quick to place the sewing material.
4. Auto oil system:Automatic lubrication of important parts through the automatic oil supply system, reducing the number of routine maintenance.
