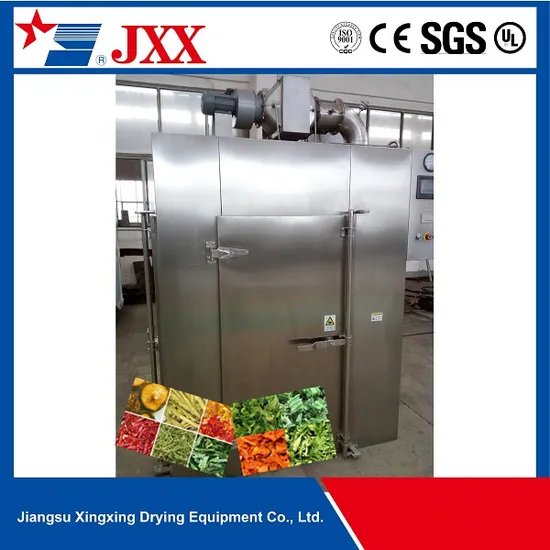

Stainless Steel Hot Air Mushroom Meat Drying Equipment

Product Description

Product Description
GENERAL DESCRIPTION
GR hot air circulating oven uses is equipped with low-noise and thermostable axial flow fan and automatic temperature control system. The entire circulatory system is sealed, improving the thermal efficiency of oven from traditional 3-7% in drying room to the current 35-45%, with the highest thermal efficiency up to 50%. The design success of GR hot air circulating oven make our hot air circulation oven has reached the advanced level at home and abroad. It has saved a lot of energy for our country and improved the economic efficiency of enterprises.
CHARACTERISTIC
1. Heating sources include steam, electricity, far infrared, dual-use of steam and electricity, all for users to choose;
2. Using temperature: steam heating 50 ~ 140ºC, the highest 150ºC;
3. Electricity, far infrared temperature 50 ~ 350ºC;
4. It is equipped with automatic control system and computer control system for users to choose;
5. Commonly used steam pressure 0.02-0.8Mpa (0.2 ~ 8kg / m2);
6. It is equipped with electric heating, valued 15KW calculated according to type I, practical 5-8kw / h;
7. If there is any special requirement please specify in order.
Price of non-standard oven is negotiable.
Please specify in order if using temperature is more than 140ºC or less than 60ºC.
Our baking car and baking tray are in uniform size, so they are interchangeable;
Baking tray size: 460 × 640 × 45 (mm)
FEATURES
Most of hot air loop inside the box so it is high thermal efficiency and energy-saving. It uses forced ventilation, with adjustable air divider plate in the box. The materials are dried uniformly. Heating sources offer a wide choice of steam, electricity, far infrared. Machine has low noise, auto-controlled temperature and convenient installation and maintenance and is stable in operation. It has wide application and can be used to dry various materials, so it is a commonly used drying device.

APPLICABLE MATERIALS
It is suitable for heat curing and drying and dehydration of materials and products of pharmaceutical, chemical, food, agricultural, aquatic, light industry and heavy industry, such as bulk drug, crude drug, Chinese medicine decoction pieces, extractums, powders, granules, electuaries, water-bindered pills, packing bottle, pigment dyes, dehydrated vegetables, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.
PARAMETERS

Model	GR-7	GR-14	GR-27	GR-41	GR-54
Each Drying Amount (kg/lot)	60	120	240	360	480
Evaporation Area (m2)	7	14	27	41	54
Radiator Area (m2)	15	23	48	72	96
Steam Consumption (kg/h)	10	23	44	66	86
Electrical Heating Power (kw)	6-9	12-15	24-28	42	55
Fan Power (kw)	0.45	0.45	0.45 × 2	0.45 × 3	0.45 × 4
Temperature Difference (ºC)	± 1	± 2	± 2	± 2	± 2
Outline Dimension (mm) (W × D × H)	1380 × 1200 × 2000	2260 × 1200 × 2000	2260 × 2200 × 2000	2360 × 3200 × 3000	4280 × 2200 × 2270
Trolley (sets)	1	2	4	6	8
Tray (pcs)	24	48	96	144	192
Total Weight (kg)	820	1580	1800	2100	2800
