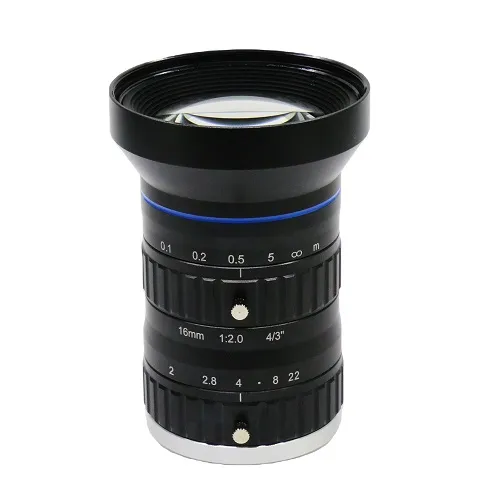

F2.0 16mm 4/3" 12MP C-Mount Fa Industrial Camera Machine Vision Lens
| US$96.00-120.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
02-008-082
Optical Zoom
Fixed Focus
Lens
Ccht
Image Stabilization
Image Stabilization
Imager Sensor
4/3"(23mm)
Wavelength
420~1000nm
FL
16mm
Interface
C-Mount
Fno
2.0
Thread
M58.0×p0.75
Control Mode
Manual
Transport Package
Carton
Specification
Φ 60.2
Trademark
CCHT
Origin
Sichuan
HS Code
9002909090
Production Capacity
20000/Month
Product Description
| Technical Parameters of Machine Vision Lens / FA Industrial Camera Lens | ||||||||||||
| No. | Model No. | Pixel | Sensor size | FL (mm) | Interface | Filter size (mm) | Control mode | FNO | RFL (mm) | FOV | Distortion | Working temperature |
| 1 | 02-008-001 | 2MP | 2/3" | 12~36 | C | M36×P0.5 | Manual | 2.8 | W:12.6 T:15.2 | W:50.9°×41.3°×31.3° T:17.1°×13.9°×10.5° | W: -3.43%@y=5.5mm T: 2.30%@y=5.5mm | -20ºC~+60ºC |
| 2 | 02-008-002 | 2MP | 2/3" | 12 | C | M30.5×P0.5 | Manual | 1.4 | 12.7 | 49.2°×40.1°× 30.3° | -1.75%@y=5.5mm | -20ºC~+60ºC |
| 3 | 02-008-003 | 2MP | 2/3" | 16 | C | M30.5×P0.5 | Manual | 1.4 | 11.6 | 37.7°×30.45°×22.9° | -0.95%@y=5.5mm | -20ºC~+60ºC |
| 4 | 02-008-004 | 2MP | 2/3" | 25 | C | M30.5×P0.5 | Manual | 1.4 | 13.6 | 24.8°×19.9°×15.1° | 0.26%@y=5.5mm | -20ºC~+60ºC |
| 5 | 02-008-005 | 2MP | 2/3" | 35 | C | M30.5×P0.5 | Manual | 1.4 | 14.7 | 17.8°×14.2°×10.7° | 0.32%@y=5.5mm | -20ºC~+60ºC |
| 6 | 02-008-006 | 2MP | 2/3" | 50 | C | M30.5×P0.5 | Manual | 1.8 | 12.94 | 12.6°×9.1°×7.5° | -0.20%@y=5.5mm | -20ºC~+60ºC |
| 7 | 02-008-011 | 3MP | 2/3" | 16 | C | M30.5×P0.5 | Manual | 1.4 | 11.6 | 37.7°×30.45×22.9 | -0.95%@y=5.5mm | -20ºC~+60ºC |
| 8 | 02-008-012 | 3MP | 2/3" | 25 | C | M30.5×P0.5 | Manual | 1.4 | 13.6 | 24.8°×19.9°×15.1° | 0.26%@y=5.5mm | -20ºC~+60ºC |
| 9 | 02-008-021 | 5MP | 2/3" | 55 | C | M43×P0.75 | Manual | 2.8 | 12.71 | 11.6°×9.3°×6.9° | 0.42%@y=5.5mm | -20ºC~+60ºC |
| 10 | 02-008-022 | 5MP | 1/1.8" | 4.5 | C | / | Manual | 2.8 | 10.5 | 89.0°×81.9°×52.3° | -1.2%@y=4.5mm | -20ºC~+60ºC |
| 11 | 02-008-031 | 8MP | 1/1.8" | 10~50 | C | M35.5×P0.5 | Manual | 2.8 | W:11.6 T:8.7 | W:48.5°×38.9°×28.8° T:10.0°×8.1°×6.0° | W: -5.32%@y=4.5mm T: 1.82%@y=4.5mm | -20ºC~+60ºC |
| 12 | 02-008-032 | 8MP | 2/3 | 35 | C | M30.5×P0.5 | Manual | 1.4 | 10.7 | 17.8°×14.3°×10.8° | -0.06%@y=5.5mm | -20ºC~+60ºC |
| 13 | 02-008-041 | 10MP | 1.0" | 8 | C | M67×P0.75 | Manual | 2.0 | 10.6 | 90.6×72.2×54.1 | -4.1%@y=8.0mm | -20ºC~+60ºC |
| 14 | 02-008-042 | 10MP | 1.0" | 12 | C | M37×P0.5 | Manual | 2.0 | 10.6 | 67.6°×56.7°×43.5° | -0.8%@y=8.0mm | -20ºC~+60ºC |
| 15 | 02-008-043 | 10MP | 1.0" | 16 | C | M34×P0.5 | Manual | 2.0 | 11.2 | 53.94°×43.92°×33.45° | -0.7%@y=8.0mm | -20ºC~+60ºC |
| 16 | 02-008-044 | 10MP | 1.0" | 25 | C | M30.5×P0.5 | Manual | 1.8 | 12.6 | 36.21°×29.08°×21.86° | -0.49%@y=8.0mm | -20ºC~+60ºC |
| 17 | 02-008-045 | 10MP | 1.0" | 35 | C | M30.5×P0.5 | Manual | 2.0 | 12.9 | 26.10°×20.83°×15.72° | 0.28%@y=8.0mm | -20ºC~+60ºC |
| 18 | 02-008-046 | 10MP | 1.0" | 50 | C | M37×P0.5 | Manual | 2.0 | 21.3 | 18.38°×14.70°×10.98° | 0.013%@y=8.0mm | -20ºC~+60ºC |
| 19 | 02-008-047 | 10MP | 1.0" | 75 | C | M37×P0.5 | Manual | 2.8 | 23.1 | 12.3×9.7°×7.4° | 0.72%@y=8.0mm | -20ºC~+60ºC |
| 20 | 02-008-051 | 10MP | 2/3" | 12~36 | C | M40.5×P0.5 | Manual | 2.8 | W:14.3 T:12.6 | W:50.9°×41.3°×31.3° T:17.1°×13.9°×10.5° | W:-3.43%@y=5.5 T:1.44%@y=5.5 | -20ºC~+60ºC |
| 21 | 02-008-052 | 10MP | 2/3" | 8 | C | M37×P0.5 | Manual | 2.4 | 12.71 | 66.7°×55.7°×43.3° | -3.02%@y=5.5mm | -20ºC~+60ºC |
| 22 | 02-008-053 | 10MP | 2/3" | 12 | C | M25.5XP0.5 | Manual | 1.8 | 15.1 | 48.6°×39.8°×30.4° | -2.05%@y=5.5mm | -20ºC~+60ºC |
| 23 | 02-008-054 | 10MP | 1", 2/3" | 16 | C | M28.5xP0.5 | Manual | 2.0 | 13.3 | 38.2°×31°×23.4° | -0.20%@y=5.5mm | -20~+60ºC |
| 24 | 02-008-055 | 10MP | 2/3" | 25 | C | M25.5XP0.5 | Manual | 1.8 | 12.7 | 24.8°×20.0°×15.0° | -0.70%@y=5.5mm | -20ºC~+60ºC |
| 25 | 02-008-056 | 10MP | 2/3" | 35 | C | M34xP0.5 | Manual | 2.0 | 13 | 17.9°×14.3°×10.8° | -0.15%@y=5.5mm | -20ºC~+60ºC |
| 26 | 02-008-057 | 10MP | 2/3" | 50 | C | M34xP0.5 | Manual | 2.4 | 21.4 | 12.6°×10.1°×7.6° | -0.012%@y=5.5mm | -20ºC~+60ºC |
| 27 | 02-008-061 | 10MP | 2/3" | 8 | C | M32.7×P0.5 | Manual | 2.8 | 10.7 | 69.7°×58.5°×45.5° | -0.81%@y=5.5mm | -20ºC~+60ºC |
| 28 | 02-008-062 | 10MP | 2/3" | 12 | C | M27×P0.5 | Manual | 2.8 | 8.43 | 49.2°×40.3°×30.8° | 0.037%@y=5.5mm | -20ºC~+60ºC |
| 29 | 02-008-063 | 10MP | 2/3" | 16 | C | M27×P0.5 | Manual | 2.8 | 8.63 | 37.9°×30.7°×23.3° | 0.29%@y=5.5mm | -20ºC~+60ºC |
| 30 | 02-008-064 | 10MP | 2/3" | 25 | C | M27×P0.5 | Manual | 2.8 | 10.31 | 24.78°×19.94°×15.0° | -0.016%@y=5.5mm | -20ºC~+60ºC |
| 31 | 02-008-065 | 10MP | 2/3" | 35 | C | M27×P0.5 | Manual | 2.8 | 13.63 | 18.39°×14.8°×11.1° | -0.172%@y=5.5mm | -20ºC~+60ºC |
| 32 | 02-008-066 | 10MP | 2/3" | 50 | C | M27×P0.5 | Manual | 2.8 | 14.24 | 12.57°×10.08°×7.57° | 0.094%@y=5.5mm | -20ºC~+60ºC |
| 33 | 02-008-071 | 10MP | 1/1.8" | 16 | C | M25.5xP0.5 | Manual | 2.8 | 13 | 31.0°×27.5°×15.7° | -0.5%@y=4.5mm | -20ºC~+60ºC |
| 34 | 02-008-072 | 10MP | 1/1.8" | 25 | C | M25.5xP0.5 | Manual | 2.8 | 12.2 | 20.4°×17.8°×10.0° | -0.1%@y=4.5mm | -20ºC~+60ºC |
| 35 | 02-008-073 | 10MP | 1/1.8" | 35 | C | M25.5xP0.5 | Manual | 2.8 | 11 | 14.7°×12.6°×7.2° | -0.09%@y=4.5mm | -20ºC~+60ºC |
| 36 | 02-008-081 | 12MP | 4/3" | 12 | C | M77×P0.75 | Manual | 2.0 | 18.8 | 89.1°×75.6°×61.2° | -2.05%@y=11.5mm | -20ºC~+60ºC |
| 37 | 02-008-082 | 12MP | 4/3" | 16 | C | M58.0×P0.75 | Manual | 2.0 | 21 | 73.1°×61.05°×47.5° | -1.93%@y=11.5mm | -20ºC~+60ºC |
| 38 | 02-008-083 | 12MP | 4/3" | 25 | C | M46.0×P0.75 | Manual | 2.0 | 22 | 49.8×40.6°×31.1° | -0.64%@y=11.5mm | -20ºC~+60ºC |
| 39 | 02-008-084 | 12MP | 4/3" | 35 | C | M46.0×P0.75 | Manual | 2.0 | 18 | 36.8°×29.7×22.5° | -0.52%@y=11.5mm | -20ºC~+60ºC |
| 40 | 02-008-085 | 12MP | 4/3" | 50 | C | M46×P0.75 | Manual | 2.0 | 20 | 26.0°×21.0×15.8 | -0.13%@y=11.5mm | -20ºC~+60ºC |
| 41 | 02-008-091 | 20MP | 1.1" | 12 | C | M37×PP0.5 | Manual | 2.8 | 10.6 | 70.6°x59.2°x45.4° | -0.85%@y=8.8mm | -20ºC~+60ºC |
| 42 | 02-008-092 | 20MP | 1.1" | 16 | C | M34×P0.5 | Manual | 2.8 | 11.2 | 58.6°×46.8°×35.2° | -0.73%@y=8.8mm | -20ºC~+60ºC |
| 43 | 02-008-093 | 20MP | 1.1" | 25 | C | M30.5×P0.5 | Manual | 2.8 | 12.6 | 39.4°×31.5°×23.6 | -0.59%@y=8.8mm | -20ºC~+60ºC |
| 44 | 02-008-094 | 20MP | 1.1" | 35 | C | M30.5×P0.5 | Manual | 2.8 | 12.9 | 28.2°×22.5×16.9° | -0.37%@y=8.8mm | -20ºC~+60ºC |
| 45 | 02-008-095 | 20MP | 1.1" | 50 | C | M37×P0.5 | Manual | 2.8 | 21.3 | 19..9°×15.9°×11.9° | -0.06%@y=8.8mm | -20ºC~+60ºC |
