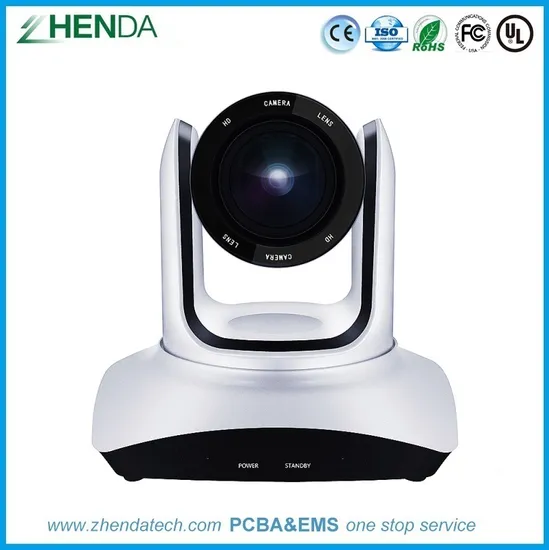

1080P HD/HDMI USB Video Conference Camera
Basic Info.
Model NO.
GV-40A
Optical Zoom
20X
Function
Projection
Spectral Rrange
Color Camera
Image Sensor
CMOS
WiFi
Not Support WiFi
Production Method
ENG
Product Positioning
Professional
Color
Silver/Gray
Specification
181*181*176mm
Trademark
Zhenda
Origin
China
HS Code
8473409001
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
183.00cm * 183.00cm * 178.00cm
Package Gross Weight
0.080kg
Product Description
Video Features: 1080P HD video, 20X Optical Zoom Optional, long-distance close-up capture Support USB 2.0 plug-and-play non-drive access, simple connection, suitable for all kinds of meetings and video applications HDMI mainstream interface, can support the mainstream device docking matching 355-degree Pan, can achieve multi-angle image acquisition Maximum 12X 72.5-degree ,12X 58.7-degree Wide Angle Lens, large field of view to address the needs of small scenes Multi-functional infrared remote control, with multi-functional OSD menu, can flexibly adjust the image effect, adapt to complex venue Environment Compatible with Sony Visca Protocol and Pelco P / D protocol Image Flip support (for desktop and ceiling installations) Parameter:| Sensor | SONY 1/2.8" Progressive CMOS |
| Effective Pixels | 3.5 Megapixels |
| Resolution HD | U2:MJPG/H.264:320*240,640*480,800*600,1280*720,1920*1080 |
| HDMI:1080P60/50,1080P30/25,1080i60/50,720P60/50 | |
| Signal System | PAL/NTSC |
| Lens | 12X f=3.9mm(W)~46.8mm(T) 20X f=4.7mm(W)~94.0mm(T) |
| Horizontal View Angle | 12X:72.5°(W) ~7.4°(T) 20X:58.7°(W)~3.2°(T) |
| Focus System | Auto/Manual |
| Minimum Illumination | 0.1Lux |
| Shutter Speed | 1/1~1/10000S |
| Gain | Auto/Manual |
| White Balance | Auto/Manual/ATW/One-click/Indoor/Outdoor |
| Image Effect | Full color/black and white/Electronic flip |
| S/N Ratio | ≥50db |
| Pan | 355°(max. speed:80°/s) |
| Tilt | -30° to +90° (max. speed: 60°/s) |
| Preset position | 9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC |
| Video Output HD | HDMI, USB 2.0 |
| Power | 12V DC(10.8~13.0V DC) |
| Operating Temperature | 0ºC~40ºC |
| Storage Temperature | -20ºC~60ºC |
| Dimensions | (L)181*(W)181*(H)176mm |
| Consumption | Max. 12W (DC 12V)) |
| Weight | 1525g |
| Color | Silvery White |
| Protocol | SONY VISCA,PELCO P/D |
| Control Mode | RS232, 422, 485 |
| Accessories | DC 12V power adapter, IR Remote Controller, Operation manual, RS-232C Cable, USB Cable,HDMI Cable, Ceiling bracket |
