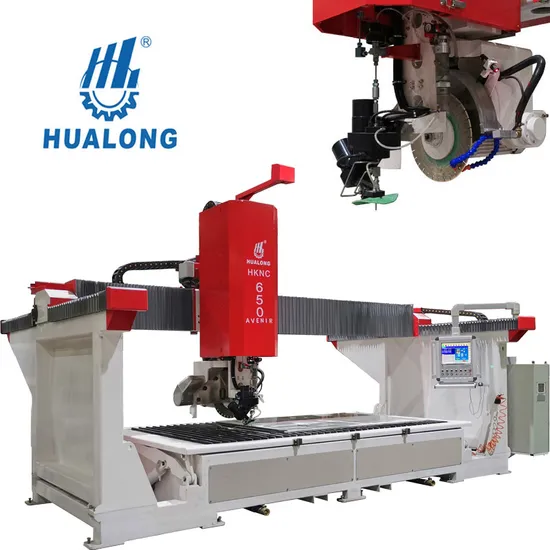

Hknc-650j Multifunctional Porcelain 5 Axis CNC Bridge Sawjet Slab Cutting Machine

Product Description

Main Features
5-axis Saw --- this machine is a fully interpolated 5 axis bridge saw * Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs.
* It can implement different complex curved surface processing and combines the functions of cutting, drilling, milling, engraving
into an oganic whole.
5-axis Waterjet ---this machine is a fully interpolated 5 axis waterjet either
* Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise
inside-corner fabrication for mitered edge.
* KMT-H20 JET50 super-pressure pump equipped with Siemens PLC and motor.


1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge
4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks. 5) CNC Sawjet & bridge saw can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files
6) Working platform can tilt 85 degrees, easy for slabs loading.
7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.

TECHNICAL DATA FOR HKNC-650J
Diameter of saw blade	ø350-ø650	mm
Dimension of working platform	410x220	cm
X axis stroke	3500	mm
Y axis stroke	2000	mm
Z axis stroke	500	mm
Max. cutting thickness	190	mm
Power of saw blade motor	15	kw
Power for abrasive waterjet	37	kw
Max. operating water pressure	60,000	psi
Water pressure required	35	psi
Water consumption	11.4-16.7	l/min
Gross weight	10000	kg
Dimensions (L x W x H)	620x390x340	cm

Details Images
Control system -- CNC
Brand: Esa Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
Digital Servomotor
Brand: YASKAWA
Original: Japan
A permanent magnet servomotor with intergrated drives, well matching with Esa's CNCs, creates a reliable controlling power for X, Y, Z, C and A axises
Laser Reticule Apparatus
Origin: China
Aid for accurate alignment at the begining of processing.
Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Linear Guide
Brand: Hiwin Original: Taiwan, ChinaFamous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
