MOOGE Brand Classic 2000 kg/hr Waste PET bottle recycling machines

MOOGE Brand Classic 2000 kg/hr Waste PET bottle recycling machines

US$80,000.00
1-2 Pieces
US$75,000.00
3-4 Pieces
US$70,000.00
5+ Pieces

Basic Info.

Model NO.
MT, MT Series
Material Processed
Plastic Bottle
Plastic Type
PET
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Final Products Size
8-16mm
Machine Material
Stainless or Carbon Steel
Manpower
8-10 Persons Required
Usage
Plastic Recycling
Capacity
300-3000kg/H
Plant Area
> 400-1000 Square Meter
Machine Color
Suitable for Your Factory
Water Consumption
About 2-3 T/Hr
Hot Washing Tank
Optional
Label Separation Rate
95% (for Round Bottle)
Invertor Brand
Teco (Made in Taiwan)
Final Moisture Content Remain
<1%
Crusher Screen Mesh Size
18mm or Customized
Transport Package
Standard Package Plastic Recycling Machine
Specification
customized
Trademark
Mooge plastic recycling machine
Origin
China Plastic Recycling Machine
HS Code
84778000
Production Capacity
customized

Product Description

Product Description

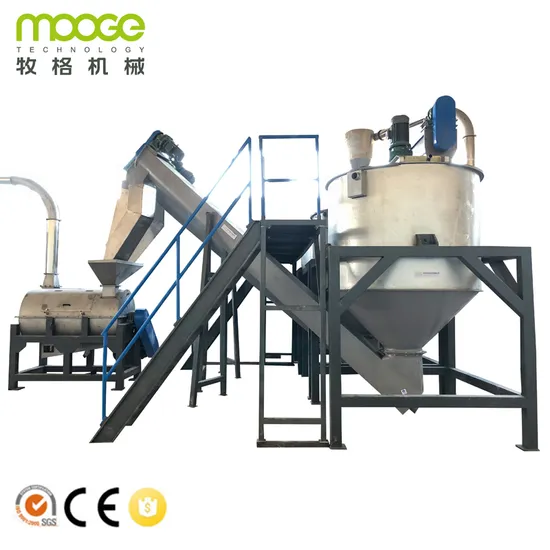

MT Series Plastic PET Recycling Line
China Factory Water Bottle Washing Machine Cleaning is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers. The Recycled waste cola bottle PET recycling machine can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.All your requirements of the Recycled waste cola bottle PET recycling machine will be customized
Product Parameters
We have 500-5000 kg/h MT Series Efficient plastic recycling machine.and We can design the layout according to your requirements.
Model Capacity Installed Power Steam use Water Supply Man Power Area Required
MT-500 500kg/hr 190 KW Optional 4-5 m3/hr 4-6 Person 60*5*5 m
MT-1000 1000kg/hr 260 KW Optional 6-8 m3/hr 8-10 Person 80*8*5 m
MT-2000 2000kg/hr 400 KW Optional 10-15 m3/hr 10-12 Person 80*8*5 m
MT-3000 3000kg/hr 600 KW 80,000 Kcal 20-30 m3/hr 12-16 Person 100*8*10 m
MT-4000 4000kg/hr 800 KW 100,000 Kcal 30-40 m3/hr 15-20 Person 135*10*10 m
MT-5000 5000kg/hr 1000 KW 120,000 Kcal 40-50 m3/hr 15-20 Person 135*10*10 m

Features At A Glance
De-Baling MachineFunction: Opening the PET bottle balesWith 4 roller cylinder to feeding the bottles equally. Claw steel is very strong and the thickness is 20mm.Machine chamber made by solid strong steel. Working chamber size can above 1600x1600mm(depth x width).Machine fixed with support over the sorting table

Trommel Machine
Function: loose pet bottle and remover caps, sand, soil and feeding the bottles out constantly.
The track and gear made by one unit steel with forging steel strong and heating treatment.
With high platform with dirty collecting chute, put the jumbo bags under the Trommel. Label Remover Machine
Function:remove the labels from the bottle and separate label out from bottles.
Blade made by alloyed steel for long time use.
Blade is fixed by screw on the rotor easy to adjustable and changeable.
The barrel is designed with doors opening on it very easy to opening and maintenance .
The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use. Plastic Crusher Machine
Function: crushing the bottles to PET flakes.
With water inlet do wet crushing. Chamber opened by screw motor.
Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet grinding can extension the blades use life, reduce the dust generation.
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use. Hot Washing Tank
Function: with hot water washing to remove oil/glue and other dirty from the flakes.
The tank made with insulation layer to save energy.
Feeding caustic soda/detergent to washing Its better Heating by steam,
You can buy a steam boiler to produce the steam.
The boiler can heating up by gas/diesel/petrol/LPG Floating Washing Tank
Function: Used to wash the flakes, with the top rollers automatic take out the caps/rings and other impurities, flakes sinking down and take out by screw.
With the rollers working will use less water to take out the caps/rings.
With double screw.
Rotor shaft made by seamless steel tube.
With drain hole on the bottom of tank. Final "Zig-zag" Label Separator
Function: Remove the final labels, dust and other mini material from the flakes to guarantee the PVC content.
Blower can be adjusted by inverter.
With inverter to control the air flux of blower.
Zig zag main chamber one set made by stainless steel.
Chamber with plexiglass window to open and check inside Installation Instructions
MT-500 PET recycling machine in Myanmar
MT-1000 PET bottle recycling washing machine in Korea
MT-2000 PET bottle recycling washing machine in Mexico
