Chinese Professional 5 Axis CNC Milling Machining Center Vmc
Basic Info.
Model NO.
HD630B
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Machine Type
CNC Vertical Machining Center
CNC or Not
CNC
Turning-Table Diameter
630mm
Max. Horizontal Load
500kg
X Axis Max.Travel
600mm
Y Axis Max.Travel
450mm
Z Axis Max.Travel
400mm
Rated Speed
3000mm
Max. Speed
12000rpm
Feed Motor Power(X/Y/Z)
2.3/2.3/2.3kw
Tool Selection Method
Two Way Proximity Selection
Tool Changer Capacity
24t
Max. Tool Length
300mm
Max. Tool Weight
8kg
Transport Package
Wooden Cases
Specification
2080*1540*1515mm
Trademark
HAIDI
Origin
China
HS Code
8457101000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
270.00cm * 380.00cm * 315.00cm
Package Gross Weight
6600.000kg
Product Description

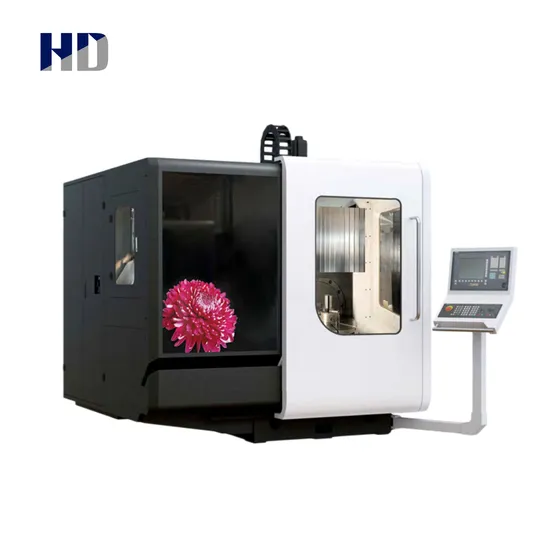

Product PictureSpecification Parameter
| Item | Name | Specification | Unit |
| Turning table | Turning-table diameter | ∅630 | mm |
| Max. Horizontal load | 500 | kg | |
| Max. Vertical load | 300 | ||
| T-groove( number*width) | 8*14H8 | Unit*mm | |
| B axis swing angle | -35°~+110 ° | ° | |
| Machining range | X axis | 600 | mm |
| Y axis | 450 | mm | |
| Z axis | 400 | mm | |
| The distance from end face of spindle to working table | Max. 550 | mm | |
| Min.150 | mm | ||
| Spindle | Cone hole (7:24) | BT40 | mm |
| Rated speed | 3000 | mm | |
| Max. Speed | 12000 | rpm | |
| Output torque of motorized spindle (S1/S6) | 70/95 | N.m | |
| Output power of motorized spindle (S1/S6) | 11/15 | KW | |
| Axis of coordinates | Rapid movement | X:36 | m/min |
| Y:36 | |||
| Z:36 | |||
| Turning table max. speed | B axis: 80 | rpm | |
| C axis: 80 | |||
| Feed motor power(X/Y/Z) | 2.3/2.3/2.3 | KW | |
| Tool changer | Type | Disc type | |
| Tool selection method | Two way proximity selection | ||
| Tool changer capacity | 24 | T | |
| Max. Tool length | 300 | mm | |
| Max. Tool weight | 8 | kg | |
| Max. dia. of tool changer | ∅80 ( full tool) | mm | |
| ∅120( Adjacent empty tool) | mm | ||
| Tool changing time | 1.8 | s | |
| Tool | Tool holder type | MAS403 BT40 | |
| Pin type | MAS403 BT40-1 | ||
| Accuracy | Execution standard | GB/T20957.4(ISO10791-4) | |
| Positioning accuracy | X/Y/Z: 0.01/0.01/0.01 | mm | |
| B axks/ C axis: 14''/14'' | |||
| Repeated positioning accuracy | X/Y/Z: 0.01/0.008/0.008 | mm | |
| B axis/ C axis: 8''/8'' | |||
| Weight | 6000 | kg | |
| Capacity | 45 | KVA | |
| Dimensions(length*width*height) | 2400*3500*2850 | mm | |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
