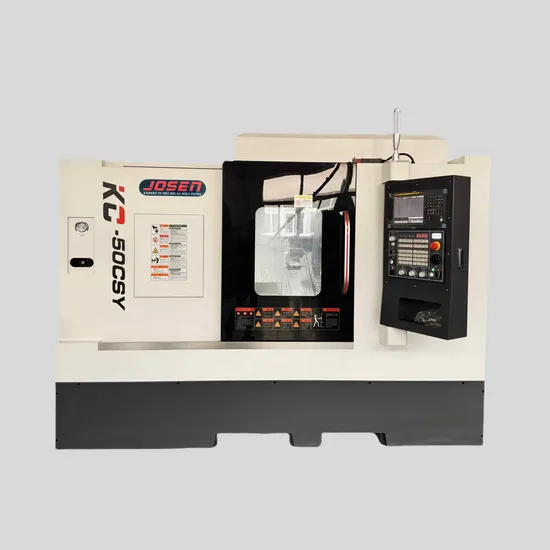

Industrial-Grade Dual-Spindle Dual-Turret Lathe for High-Efficiency Machining with Y-Axis

Product Description

Product Description
1. Equipped with high precision spindle: Eliminate spindle vibration effectively, The runout accuracy of the spindle positioning surface around than 2 μm. which provides the best workpiece stiffness, concentricity, surface roughness and roundness due to the workpiece clamping closer to the spindle bearing. It can also significantly prolong the service life of the tool.
The front end of the spindle is a labyrinth sealing structure with positive air pressure protection to prevent coolant and impurities from entering the spindle.
Twin spindle with Y axis driven turret can be from simple to complex one hit machining from raw material to finished parts .less setup time ,complete in one setup during machining process can be turning ,milling, tapping, drilling, boring , hobbing ,slotting operation .
2. The main castings are made of high-grade cast iron by resin sand casting. Adopting advanced finite element analysis technology, the design structure is reasonable and the layout is optimized. And by aging treatment, it can ensure the long-term machining stability of the performance .
3. X and Z axis servo motors are directly connected with precision ball screws through flexible couplings with high precision, and the two ends of the screws are fixed, The reinforced bearing support seat and the ball screw are pre-stretched to ensure the rigidity of the transmission and the dimensional stability of the cooling and heating machine.
4. automatic centralized lubrication system to lubricate the screw, guideway and other moving parts through the set oiling interval and oiling duration to ensure the accuracy and easy service of the machine .
5. The spindle mounting with Magnetic ring encoder, which makes the positioning and C-axis indexing more accurate.
6. The 12-station BMT driven turret with bidirectional positioning index, short tool change time and high positioning accuracy, which is conducive to improving machining accuracy.The machine adopts integral bed, high and low rail design, and 30-degree interpolation Y-axis. In the Y-axis arrangement using the upper and lower bed saddle in the inclined bed body interpolation to form a virtual Y-axis structure Through the X-axis and a certain angle with the X-axis Y'axis differential complement to realize the Y-axis (X-axis, Y "axis synthesized virtual Y-axis movement.) The advantage of virtual Y is high rigidity (no tool holder in the Y-axis overhang " drag gravity light, easy to control. The layout of the machine is reasonable cutting space, suitable for various specifications of machine tools. Compensation function of CNC system can be utilized to compensate.
The Y-axis adopts 100 MM travel (±50) off the centerline), capable of eccentric milling, drilling and tapping, and is standardly equipped with a high-torque power turret.
High-torque power turret and servo-driven C-axis are standardly equipped with 4-axis machining capability.
7. The feed system is driven by servo motor with roller screw drive for high precision and wear resistance.
8. The machine is supported by P-class large-size precision heavy-duty roller guideway with strong support rigidity and high guiding accuracy. The machine is fully protected by the outer cover to prevent the cutting fluid from splashing. Product Parameters

Description	Unit	Details
Machine performance
Maximum swivel diameter of the bed	mm	630
Maximum turning diameter	mm	300
Maximum cutting length	mm	500
Maximum distance between two chucks	mm	500
Standard Chuck Size	Inch	8/6
CNC system
Fanuc system		OITF PLUS
Spindle
Spindle type		Motor spindle
Spindle specifications/sub-spindle specifications		A2-6(motor spindle)/A2-5 (motor spindle)
Spindle/sub-spindle through-hole diameter	mm	66/53
Standard bar diameter	mm	52/42
Front bearing hole	mm	100
Standard spindle speed	rpm	50-4000 (sub spindle 50-5000)
Spindle motor power	Kw	15/22
Sub-spindle motor power	Kw	11/15
Turret
Power servo turret	mm	BMT65
Positions of turret	NO.	12
Diameter of cutter plate	mm	380
Maximum Boring Bar Diameter	mm	50
Tool size	mm	25 x 25
BMT turret power	mm	4.5
Rotating Max speed of live tool	rpm	6000
X, Z , Y axis accuracy
X, Z, Y axis positioning accuracy	mm	± 0.003 (linear scale )
X, Z, Y axis Repeat Positioning Accuracy	mm	± 0.002
X-axis parameters
X axis travel	mm	260
X-axis rapid traverse speed	m/min	24
X axis Ball Screw Diameter and Pitch	mm	40 x 10(C3 class)
X axis guideway type and dimensions	mm	35 (Roller guideway class P4)
X-axis motor power	Kw	3
Z-axis parameters
Z1 axis travel	mm	620
Z2 (secondary axis) maximum travel distance	mm	530
Z-axis rapid traverse speed	m/min	24
Z axis ball screw diameter and pitch	mm	40 x 10(C3lever)
Z axis guideway type and dimensions	mm	45 (Roller guideway class P4)
Z-axis motor power	Kw	3
Y-axis parameters
Y axis travel	mm	±50
Y-axis ball screw diameter and pitch	mm	32 x 10(C3 class)
Y-axis guideway type and size	mm	35
Y-axis motor power	Kw	3
Other
Coolant tank capacity		160
Power Chassis Capacity		35
Machine size	mm	3000 X 1800
Machine weight	kg	6500
