Efficient Vertical Machining Center Single Metal Milling Machining Center

Product Description

Good rigidity high precision stability of Taiwan's new generation of gantry machining center
Product Description
Suitable for:
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. Good processing for small parts, precision parts and non-ferrous metals. Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, Disk parts: precision shaft pin, shaft sleeve, spindle, ring Precision thread: high-grade thread joint, slightly dense spindle lock cap, tooth compound
Feature
The machine is made of high strength resin sand casting, the machining center is wide guide rail base, the screw is made of 5010/4010 double nut ball screw, driven by AC servo motor.
The machine has good rigidity, high precision stability, and the system is equipped with RS232 communication interface, which is suitable for processing various small and medium-sized parts with high precision requirements and complex shapes.
System standard Taiwan new generation.
Product Parameters

project	unit	JZ-1580
Maximum hole diameter	MM	30,50
Maximum tapping diameter	mm	M24,M27
Maximum milling cutter diameter	mm	125
Spindle speed	r.P.m	10 to 3500
Spindle motor power	kw	7.5 kw / 11 kw
Spindle taper hole	MM	BT40

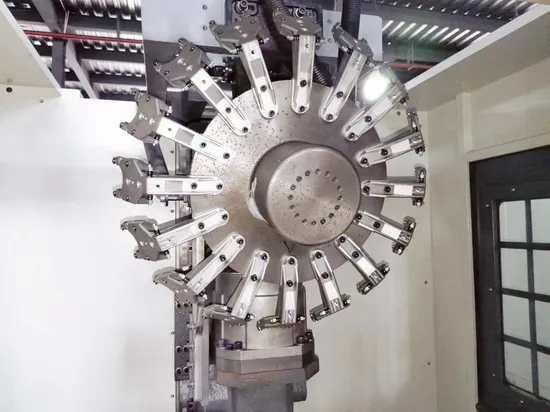

Tool storage capacity		24
Tool change time	seconds	2-3
X, Y, Z axis repeated positioning accuracy	MM	± 0.005
Table travel :X, Y, Z axis	mm/min	1500x800x600
Table fast movement: X, Y, Z axis	mm	20000
Distance between work surface and spindle end face	MM	150-750
Table size	mm	1700x700
Table T-slot	MM	4 to 18
Three-axis servo motor power	kw	X4 * Y4 * Z5.5
Three axis connection		Direct connection
Three-axis ball screw specification		X4010*Y4010*Z4010
Three axis linear guide specifications	mm	X45*Y45*Z45
Cooling pump power	kw	0.55
Machine size	MM	4000x2800x3100
Machine weight	kg	About 8000
Maximum weight of the table	kg	About 800

Detailed Photos
hot selling product

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
