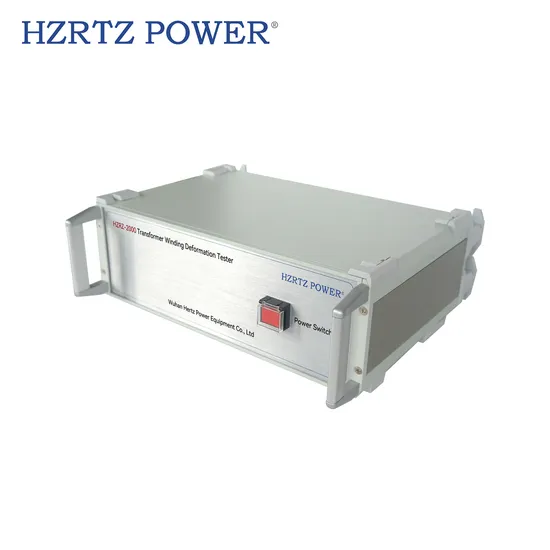

Manufacture Transformer Winding Deformation Diagnostic Tester Sfra Analyzer

Product Description

Product Description
The Transformer Winding Deformation Tester is used to test the deformation of windings inpower transformers with voltage levels of 6kV and above,as well as transformers for other specialpurposes.During operation or transportation,power transformers inevitably suffer from various faultshort-circuit currents or physical impact.Under the strong electromagnetic force generated by short-circuit currents,transformer windings may lose stability,leading to permanent deformation such aslocal twisting,bulging,or displacement.This can severely affect the safe operation of transformers.According to the national electric power industry standard DL/T911-2004,the frequency responseanalysis method is used to measure transformer winding deformation.This involves detecting theamplitude-frequency response characteristics of each winding and performing longitudinal ortransverse comparisons of the detection results.The degree of change in amplitude-frequencyresponse characteristics is used to determine potential winding deformations. Product Features
1. Sweep Frequency Measurement
2. Fast Measurement:Measurement time for a single winding is within 2 minutes
3. High Frequency Accuracy
4. Digital Frequency Synthesis
5. 5000V Voltage Isolation
6. Simultaneous Curve Loading
7. Powerful Analysis Software
8. User-Friendly Software Management
9. Simple and Intuitive Software Interface
10. Window Platform Compatibility
11. High Intelligence Level Detailed Photos
Product Parameters

Measurement Speed	Single-phase winding:1-2 minutes
Output Voltage	20Vpp
Output Impedance	50Ω
Input Impedance	1MQ(response channel built-in 500matching resistor)
Sweep Frequency Range	100Hz-2MHz
Frequency Accuracy	0.005%
Sampling Frequency per Channel	100Msps
Sweep Frequency Mode	Linear or logarithmic,sweep intervals,and pointscan be set arbitrarily
Curve Display	Amplitude-frequency curve
Measurement Dynamic Range	-100dB to 20dB
Detection Accuracy	Better than±0.5dB
Power Supply Voltage	AC220V±10%
Host Weight	3.6kg
Host Dimension	272mm*258mm*95mm

Product Dimension
