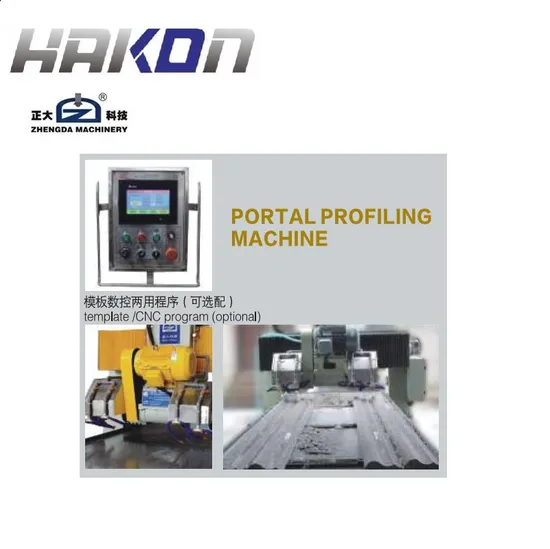

Four Blades Marble Granite Portal Type PLC Profiling Machine

Product Description

PLC automatic Profiling cutter for granite marble linesThe portal type PLC profiling machine is our latest design for processing the special-shape stone material. This machine extends the maximum width to 1580mm, and it can make 4PCS of line in one time due to 4 blades. Besides, it adopts the double triangle in the rail to improve the stability and working life.
STRUCTURE AND FEATURES: This machine is the latest design for processing the special-shaped stone material. It adopts portal structure to make the max. width of 1580 mm, and it can make 4 pcs of lines in one time processing. It also can make the square column with the length 750 mm in two lines, It adopts the ball screw in up and down movements. It adopts the double triangle in the rail. It has long using life with high efficiency which put the gear under the table. MAJOR TECHNICAL PARAMETERS:

Table size	3500×1580 mm
Saw blade diameter	350-600 mm
Main engine power	18.5 kw
Outline dimension	5800×2400×2200 mm
Weight	4500 kgs
Total power	21.3kw

FAQ: 1. Do you have more stone machines?
Yes, we can produce all series of stone processing machines with competitive price and high quality.
Bridge Saw is one of our machines.
2. Where is your factory?
Our factory locates in Linhai City, it is 1 hours Taizhou airport, 30 minitues form Linhai or Taizhou train station.
3. How much is this machine?
Please tell me your stone is granite or marble, the size, your destination port, so that I can quote you best price
4. How long can I get my product?
Normally it takes 15 days to produce our products
