1pet Flake Crushing Washing Drying and Label Removing Machine

Product Description

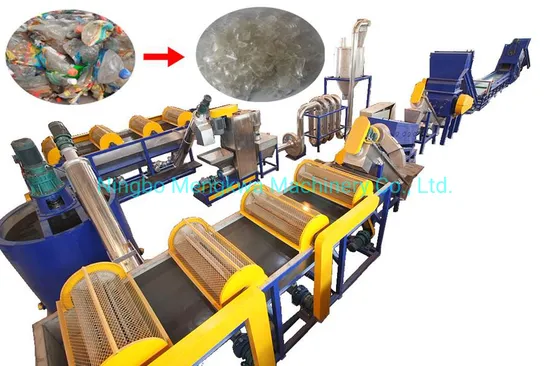

PET flakes washing and drying line : production capacity according to your requirement .
flow chart for reference :
Configuration table :

No.	Machine	Qty.	No.	Machine	Qty.
1	Belt conveyer	1set	11	Screw conveyer	1set
2	Label Scraping Machine	1set	12	High speed friction washer	1set
3	Manual Separating Table	1set	13	Screw conveyer	1set
4	Metal detector	1set	14	Floating washer	1set
5	Belt conveyer	1set	15	Screw conveyor	1set
6	Crusher	1set	16	Dewatering machine	1set
7	Screw conveyer	1set	17	Drying system	1set
8	Floating washer	1set	18	Label separator by air	1set
9	Screw conveyor	1set	19	Storage hopper	1set
10	Steam washer	1set	20	Electric elements	1set

machine specification :
Belt conveyer motor power:2.2kw, Frequently control width:590mm length of transportation: 4500mm the conveying height can be adjusted freely.
Crusher PC 800 according to production capacity of 500kgs/h motor power:37KW qty of fixed blades: 4PCS qty of rotating blades:10PCS material of blade:SKD11 Diameter of the hole of the mesh: Ф 17mm
Floating washer width:1320mm working length:4500mm power of motor for washing:2.2kw*2 Diameter of screw:300mm The contact part with the material is made of stainless steel 304 Power of motor for push flakes:3KW
Label separator by air Label absorption fan: 4kw (with valve for air quantity) Material suction fan: 7.5kw Rotary valve:1.5kw With toughened glass window With cyclone silo and dust collecting bags The parts contacted the raw material are made of stainless steel 304
Drying system power motor:7.5kw pipe diameter:219mm Heating power 36kw (Temperature Need:50-60C,just for pet) The parts contacted the raw material are made of stainless steel 304
Ningbo Mengkwa Machinery Co.,Ltd is an experienced and professional manufacturer of plastic extruder and extrusion lines for years. We can produce various equipments, including plastic pipe extrusion lines, plastic profile extrusion lines, plastic sheet/plate extrusion lines and also some recycling and pelletizing machines etc. According to different requirement s of each customer, our engineers will provide most professional mechanical design and manufacturing, and the complete processing technology to meet their special application requirements.
If you want to know any information about us and machine or equipment, please contact with us at any time .
Ningbo Mengkwa Machinery Co. Ltd
Ningbo, China


web: mengkwa.en.made-in-china.com
mengkwa.en.made-in-china.com

After-sale service
1. 24 hours technical support by email, call, video.
2. Warranty for one year after 12 months of shipment
3. Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.
Terms of payment
1.after receiving the deposit 40%, our company will arrange production;
2.After the customer check and accept compression machine, before delivery, customer need to pay off the balance payment;
