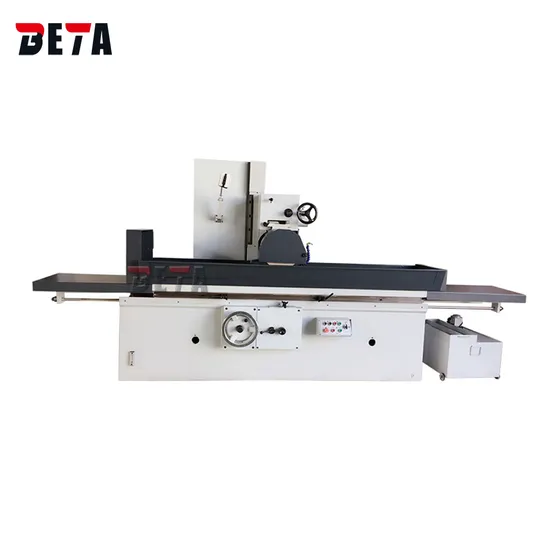

Precision Magnetic M7140 Surface Grinding Machine Price
Basic Info.
Model NO.
M7140
Type
Surface Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
Manual
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Manual Surface Grinding Machine
Model
M7140
Worktable Size
400X1000mm
Wheel Speed
1440rpm
Grinding Type
Surface Grinding for Metal
Chuck
Magnetic Chuck Table
Delivery Time
1 Month
Warranty Time
12 Months
Voltage
380V
Longitudinal Moving
Hydraulic
Grinding Wheel Size
350X40X127mm
OEM
Available
Color
Blue and White
Function
Flat Surface Grinding
Coolant
Standard
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description
M820 Manual Flat Surface Grinding Machine Price List
| Model | M7140*1000 | M7140*1600 | M7140*2000 | |||
| Working table | Table size(L * W) | mm | 1000×400 | 1600×400 | 2000×400 | |
| Max movement of working table(L * W) | mm | 1100 | 1700 | 2100 | ||
| T-Slot(number * width) | 3×18 | 3×18 | 3×18 | |||
| Speed of working table | m/min | 3--25 | 3--25 | 3--25 | ||
| Grinding head | Max distance from spindle center to table surface | mm | 575 | 575 | 575 | |
| Max travel of grinding head Cross (Manual and hydraulic) | mm | 440 | 440 | 440 | ||
| Max travel of grinding head Vertical (Manual) | mm | 400 | 400 | 400 | ||
| Spindle speed | rpm | 1440 | 1440 | 1440 | ||
| Wheel Size (Outer diameter * width * Inner diameter) | mm | φ350×40×φ127 | φ350×40×φ127 | φ350×40×φ127 | ||
| Scale on the vertical handwheel | mm | 0.01 | 0.01 | 0.01 | ||
| Grinding head feed per revolution of handwheel | mm | 1 | 1 | 1 | ||
| Total power | kw | 11 | 12 | 12 | ||
| Spindle motor | Power | kw | 7.5 | 7.5 | 7.5 | |
| Speed | r/min | 1440 | 1440 | 1440 | ||
| Rapid up and down motor | Power | kw | 0.37 | 0.37 | 0.55 | |
| Speed | r/min | 1440 | 1440 | 1440 | ||
| Oil pump motor | Power | kw | 3 | 4 | 4 | |
| Speed | r/min | 960 | 960 | 960 | ||
| Coolant pump motor | Power | kw | 0.125 | 0.125 | 0.125 | |
| Speed | r/min | 2800 | 2800 | 2800 | ||
| Oil pump | Flow | L/min | 100 | 100 | 125/50 | |
| Working pressure | MPa | 1.5 | 1.5 | 1.5 | ||
| Working precision | The parallelism of working surface to base level | mm | 1000:0.015 | 1000:0.015 | 1000:0.015 | |
| Surface roughness | µm | Ra0.63 | Ra0.63 | Ra0.63 | ||
| Weight | N.W./G.W. | kg | 3800/4200 | 5300/6000 | 6300/7000 | |
| Overall dimension (L*W*H) | mm | 2700×1750×2100 | 4400×1750×2100 | 5400×1750×2100 | ||
