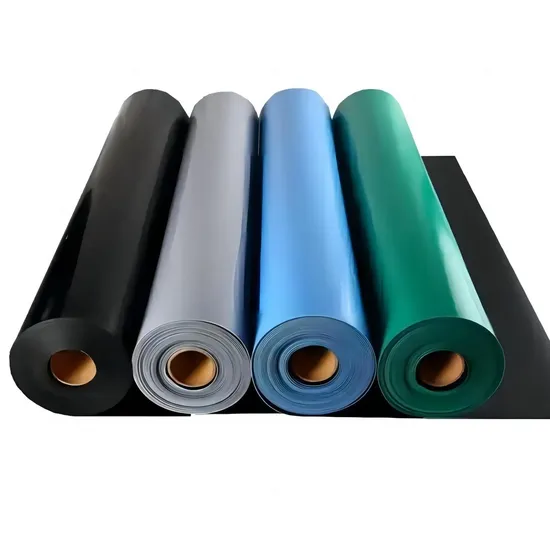

Anti-Static Mat Roll Green Grey Blue 2.0mm Thickness ESD Rubber Mat

Product Description

Product Description
Product Description:
ESD mats are designed to drain static charges from items placed on its surface They also protect the surface of the ESD sensitive devices from wear-and-tear Made from durable materials, the ESD safe mats are designed to be long-lasting whilst maintaining their antistatic properties. For a mat to effectively ground an item, the item must be either conductive or static-dissipative, as the insulative items will not allow charge to drain to ground, for example most of the plastics.
Features:
- Main material:Styrene Butadiene Rubber(SBR),Nitrile-Butadiene Rubber(NBR),Natural Rubber
- Stable color
- 2mm thick double-layer structure
- Surface layer is around 0.5mm thick static-dissipative layer
- Bottom layer is around 1.5mm thick black conductive layer
- Heat Resistance:200 ºC -250 ºC is slight discolored.300 ºC is starting to left burn mark(Instantaneous-temperature 300ºC
- Hard wearing
- Scratch Resistance: No clear scratch and well recovery
- flexible/Soft/Comfortable
- No irritant odor
- Lifespan: About 12 months under the normal environment
Application:
ESD mats are commonly found in environments where electrostatic sensitive products are present, or where static electricity can potentially cause harm. These often include: - Computer server rooms - Assembly lines - ESD Protected Areas (EPAs) - Microchip manufacturing plants -Computer repair shops -Operating rooms -Environments where flammable materials are present -Medical and dental offices -Electronics Manufacturing -Cleanrooms (flat panel manufacturing) -And more besides Mat Types:
ANTISK offer a wide variety of ESD worktop mats and ESD floor mats, including some of the following:
- Premium Smooth ESD Rubber Mat
- PremiumTextured ESD Rubber Mat
- Common ESD Rubber Mat
-Anti-static Fatigue Floor Mat
-Cushion Matting
-Vinyl Table Matting

Product name	ESD Antistatic Mats Elastic Industrial Flooring Anti Fatigue Anti-fatigue Floor Mat ESD Green Rubber Table Roll ground Mat
Material	SBR (Styrene-butadiene rubber), NBR (nitrile-butadiene rubber), Natural rubber
Minor material	Super-conductive carbon black, anti-static agent, antioxidant
Thickness:	2mm,Permissible Tolerance,±0.05mm
Surface layer	About 0.5mm
Bottom Layer	about 1.5mm
Standard Color	Green/Blue/Grey
Standar Length	10meters or 12meters
Heat resistance	200 ºC -250 ºCis slight discolored.300 ºC is starting to left burn mark(Instantaneous temperature 300ºC
Surface Resistance	10E6~10E9 ohm
Bottom Resistance	10E3~10E5 ohm
Volume resistance	10e5~10e8Ω
Working temperature	20 ºC-26 ºC
Relative humidity	40%-65%
OEM	YES
Sample	YES
