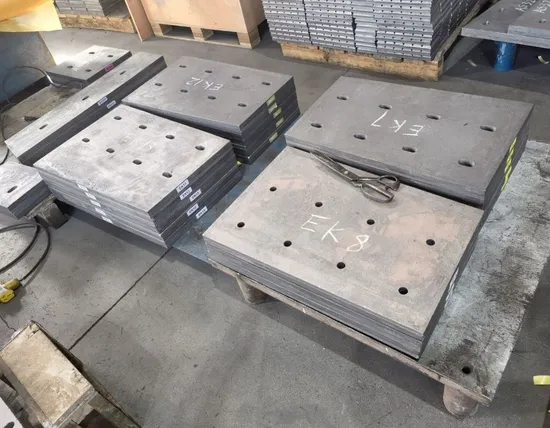

700bhn Impact White Iron Wear Plates for Abrasion Protection ASTM A532 15/3crmo

Product Description

650BHN High chromium Cast wear plates for steel mill/mining/quarrying
Advantage:
1. Hardness: 63HRC/700BHN. According to the G65 test, the usage life is at least 2 times higher compared with overlay/hardfacing wear plates, at least 7 times longer than A.R type steels 360/400BHN. The thicker ones such as 20mm above wear plates, usage life is much more longer. The wear resistant performance is the same from plate surface to the brazing joint.
2. Wear plate surface is smooth and flat, media is not easy to stick on.
3. Shapes and sizes can be made on request; Bolts, Nuts, Washers, Holes, Threads are available on request.
4. Better cost-efficient.
5. Operating temperature: 550ºC
Other technical names of this plate(700BHN Domite liners 15-40mm thick):
--Mainly for Chute and Hopper, Crusher, transfer points liner protection! with EXCELLENT IMPACT AND ABRASION PERFORMANCE!!
-- Available in a wide range of sizes, Hyster wear Plates can be used in a combination of our standard sizes to create optimum layouts that provide the greatest impact and wear protection.
-- Suitable for use in chutes, hoppers, bins, liners, impact walls, rock boxes and a variety of other applications.
-- Very easy to use, no pre or post heating when welding.
We can accept OEM&ODM orders. Please contact us for any question.
Hyster wear system is more than just a product. It is a combination of products, services and metallurgical expertise to provide superior wear protection for mining equipment and other industrial applications. A key part of this package is the Bimetallic Wear Products, a comprehensive offering of buttons, blocks, bars, runners, tiles and overlay plate to match any application.Hyster White Iron Wear Block(700BHN-63HRC)-- Range of products based on a composite white iron wear surface metallurgically bonded to a weldable mild steel backing plate. Wear block is fixed to the surface of fixed and mobile plant equipment, such as mining buckets and chutes, where protection from severe abrasion is required.
Hyster Overlay Wear Plates--Chromium carbide clad wear plate manufactured in HYSTER and marketed worldwide. Overlay plate is well suited to fixed and mobile plant equipment associated with the construction, mining and resource industries; particularly iron ore, coal, cement and steel applications.
Hyster NiHard--Abrasion and high impact resistant product. It is often cast into billets and liners and used extensively in the mining, construction and mineral processes industries, particularly in bulk handling situations. In every case, we enable customers to:
-Reduce downtime due to unscheduled break downs -Save on equipment cost & renewal costs -Save man hours on maintenance -Minimising & eliminating lost production -Increase their bottom line by achieving savings in all of the above
Typical Data Numbers - White Iron Wear Parts -Usage life is 50% greater than that of Ni Hard Irons. -At least 7 times longer than A.R. type steels 360/400 BHN -5 times the wear rate of Manganese Steel -3 times the wear rate of Tapco Weld Hardfacing -4 times the wear rate of Astralloy-Vulcan -16 times the wear rate of Carbon Steel -3 times the wear rate of 500 BHN A.R. Plate Bimetallic White Iron Wear Plate Usage Life is Three Times Higher Than Overlay Wear Plates!!
Applications---Typical applications include the following for the Sugar, Mining, Quarrying, Re-cycling, Aggregate and other Heavy Industries (to name only a few of the countless applications):
Chute Linings Apron Feeder Liners Dump& Crusher Hoppers Distribution Plates Rock Box Liners Crusher Chutes/Bars Conveyor Transfer Points Knife Inserts Feeders Loaders Flop Gates Draglines& Shovels Hammer Mill Inserts Wear Aprons/Pads Dump Hoppers & Crusher Hoppers Rolling Mill Guides Jaw Crusher Check Plates Skid Plates
Skip& Loader& Truck Bed Liners Lip& Adaptor Protectors Screen Plates
Surge Bin& Bucket& Trough Liners Rock Box& Hopper Edges/Liners Drag Line Bucket Liners Coal Transfer& Tripper Chutes
Hyster Markets
Quality Guarantee
Quality Report to be submit ahead of delivery: include Metallographic Analysis & Hardness & Chemical Composition Analysis & Welding Quality(UT) & Dimensions & G65 Dry Sand/Rubber Wheel Abrasion Test. 12 month warranty on quality.

The company is certified with ISO9001:2015. We have a dedicated R&D team that can tailor various products with special requirements (such as wear resistance, corrosion resistance, impact resistance, heat resistance, etc.) and provide professional wear resistance solutions. Since its establishment, the company has carried out a lot of experiments on improving the wear resistance and composite bonding strength, various heat treatment technology on different products, and the selection of wear-resistant alloys under different working conditions. The production process and product performance are continuously optimized.
Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.
Some of our products and services:
--Wear plates, wear liners
--Chocky bars and wear buttons
--Wear blocks, wear bars
--Custom made wear liners
--Bucket repair and protection
--Full Fabrication services
--Sugar mill hammer tips
--Drilling, milling or machining
--Casting/Investment casting
--Fast service and timely delivery

Following are our laminated wear blocks:
Types---the most common ones are:
1) Chocky bars (CB 25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. CB150)
2) Standard wear bars (DLP201A, DLP 125, DLP184, DLP528, DLP619, DLP451, DLP450, DLP2230, DLP2017, DLP4, DLP919, DLP1191, DLP515, DLP200, DLP271, DLP270, DLP508, DLP115, DLP337, DLP1101, DLP343 )
3) Shaped wear bars
4) Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196)
5) Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm)
6) Bi-metallic wear plates
7) Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm)
8) Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm)
9) Elbow wear blocks
10) Other sizes and shapes
11) Multi-function gradient cutter tooth
12) Rockbox liners
13) Micro-ledges
Bi-metallic wear blocks
Chrome Carbide Laminated Wear Blocks
Applications---Typical applications include the following for the Surge, Mining, Steel, Re-cycling, OEM, Aggregate and other Heavy Industries (to name only a few of the countless applications):
Chute Linings Ore Chutes Crusher Chutes Coal Transfer Chutes
Tripper Chutes Flop Gates Surge Bin Liners Bucket Liners
Rock Box Liners Skip Liners Trough Liners Apron Feeder Liners
Draglines Shovels Screen Plates Loaders
Wear Aprons Concentration Bins Reclaimer Buckets
Loading Pocket Liners Transition Pieces Conveyor Transfer Points
Bolt Protectors Grizzly Bars Rock Box Edges
Hopper Edges Lip Protectors Adaptor Protectors
Deflector Plates Splitter/Divider Plates Wear Pads
Fan Blades Jaw Crushers Hammer Mill Inserts
Knife Inserts Crusher Bars Rolling Mill Guides
Run Out Rolls Dump Hoppers Crusher Hoppers
Floor Liners Arm & Hub Liners Truck Bed Liners
Bucket Liners Impact Wall Liners Distribution Plates
Elastomer Bonded Liners (Noise Reduction) Vibratory Feeders
Hopper (Receiving & Discharge) Liners
Bucket Wheel Protection
More about our company and products, please do not hesitate to contact us. Thanks a lot!
