Original Factory High Accuracy Land Grader Machine Satellite Land Leveler

Product Description

Product Description

Yucheng Xinyi Machinery Manufacturing Co., Ltd.
Product Technical Parameter
Name:Original Factory High Accuracy Land Grader Machine Satellite Land Leveler
A laser land leveler is a precision tool that uses a laser beam to level uneven fields. The laser beam is emitted from the transmitter and sweeps across the field, creating a virtual plane of light.The receiver mounted on the leveling bucket detects the laser reference plane's position and sends signals to the control box.The control panel then interprets the signals and opens or closes the hydraulic control valve, which raises or lowers the bucket to achieve a desired grade.This advanced technology enables the machine to smooth out the surface of the field to its average height with a desired degree of slope, resulting in better agronomic practices, higher crop yields, efficient crop management, and water conservation.
Product Parameters:

Model	12PW-4.0	12PW-3.0A	12PW-2.8/3.5	12PW-2.5/3.2	12PW-2.5	12PW-1.5/2.2
Working Width	4	3	3.5	3.2	2.5	2.2
Control Mode	SATELLITE CONTROL
Levelling Shovel Type	Camber Beam Adiustable	Camber Beam Fixed	Straight Shovel
Type Size	10.0/75-15.3	31/15.5-15	10.0/75-15.3	10.0/75-15.3	10.0/75-15.3	23*8.50/12
Matched Power	154.4-180.5	102.9-154.4	102.9-154.4	102.9-154.4	80.4-102.9	50.4-80.9
Working Rate	0.33	0.4	0.33	0.267	0.23
Size	4800*2650*1700	4300*3120*1650	4000*2930*1350	4000*2614*1350	4000*2610*1350	2650*1600*1320
Weight	2600	1980	1480	1440	1150	1150

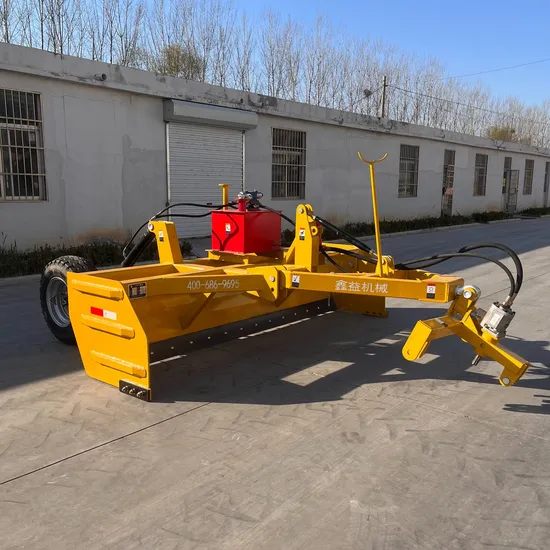

Detailed Photos

Packaging & Shipping
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.

Company Profile

Business type	Manufacturer
Location	Yucheng, Shandong,China
Year Established	2005
Occupied area	50 Acres
Company certification	CE, ISO9001
Main product	Disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on. With good quality and excellent performance, our products are annually exported to countries around the world, and we have gained absolute trust from our customers.

After Sales Service
1,All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
3,We can also provide training services to different users.
FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T , L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Xinyi for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 25 years in manufacturing farming machine
2. More Professional Sales staffs to guarantee the better service
3. More agri machines for your choice
4. More New products into your range to avoid price competition
5. Larger quantity production and shipment
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: "XINYI" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. Have received unstinting support from the Chinese government.
If you are interested in our products, feel free to contart me.
