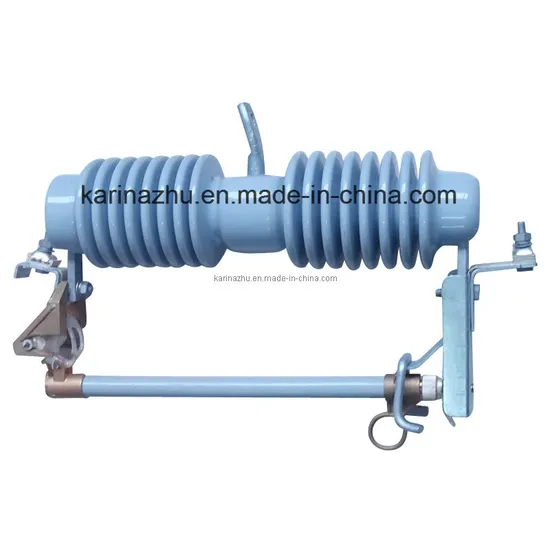

33kv High Voltage Porcelain Drop out Fuse Cutout

Product Description

Condition of Use:
1. The ambient air temperatures within the range of -30 degreeto +40 degree;
2. The altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of the A. C. Power supply not less than 48Hz and not exceeding 52Hz;
4. Earthquake intensity not exceeding 7 degrees;
5. Maximum wind speed not exceeding 35m/s.
Technical Standard:
The technical performance of the products is in confirmed to IEC291, 282.

Type	Rated voltage(KV)	Rated current(A)	Breaking current(KA)	Impulse voltage(KV)	Power-frequency withstand voltage(KV)	Leakage distance(MM)	Weight (KG)
RW12-33	33	100	8	170	70	7000	7.5

FAQ
Q:Why choose us ?
A: we are a manufacturer, we have been manufacturing arrester & fuse cutout & insulator with 13 years .
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q:Can we print our logo on your products?
A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
