High Quality 3 Axis CNC Vertical Machining Center

Product Description

Welcome to Nantong AJ Industry Limited! Explore our top factory for high-quality 3 Axis CNC Vertical Machining Centers. Send inquiries and visit us today!

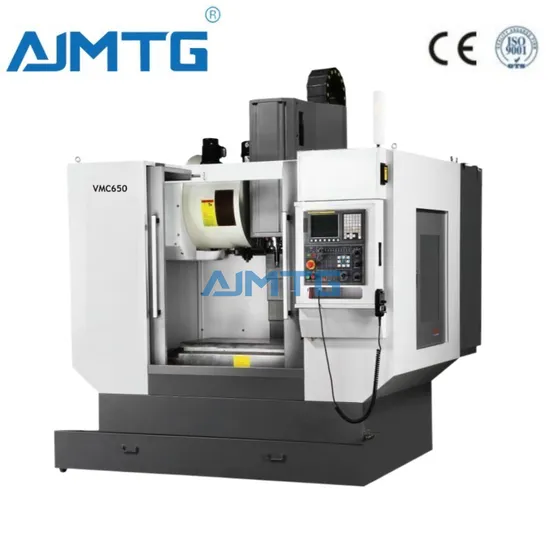

High Quality 3 Axis CNC Vertical Machining Center
Explore our Vertical CNC Machining Center for precision milling. Buy top-notch 3 Axis VMC machines from the leading manufacturer, Nantong AJ Industry Limited.
High Quality 3 Axis CNC Vertical Machining Center
Experience precision with the VMC640 featuring a 950x400mm worktable and 700x450x500mm travel. Elevate your machining capabilities with this top-notch CNC milling machine.
Product Description
Introducing the cutting-edge CNC machine from Nantong AJ Industry Limited, designed to meet the demands of precision engineering:
Specifications:
Spindle: BT40 10000rpm or 12000rpm from Taiwan
Travel: 900x600x700mm
Roller guideways: 35/45/45mm width from hiwin/pmi
Ballscrew: 40mm diameter from Hiwin with lock nuts
ATC: OKADA brand with 24 tools, side mounted for armless operation
Chip conveyor: Chain type
Main Configuration & Accessories:
Resin sand casting, Meehanite HT-300
Stainless steel telescopic cover for X, Y, Z rails
Roller type linear guideway from Taiwan
Ball lead screw from Taiwan
Belt driven spindle (optional for direct driven spindle)
Taiwan pneumatic cylinder
Taiwan ATC with umbrella and disc type options
Imported bearings and coupling
Nitrogen balance system for headstock (optional)
Full enclosed cover for safety
Rigid tapping and spindle center ring blast
Work lamp, pilot lamp, USB, and Internet interface
Manual pulse generator (MPG) and automatic lubrication system
Cooling system and heat exchanger for electrical cabinet
Leveling blocks & bolts, toolbox, and tools included
CNC controller options: KND, GSK, HNC, SIEMENS, FANUC, MITSUBISHI, FAGOR, etc
Standard Accessories:
All machines and standard accessories are supplied by Nantong AJ Industry Limited, ensuring top-quality performance and reliability.

Fanuc 0i TF control system

Taiwan Spindle: 8000rpm

X/Y/Z axes: Fanuc servo drive motor

Main motor: Fanuc spindle motor

24 tools Umbrella type

USB for information transfer

Rough cutting of thread

Full closed cover

Automatic lubrication

Coolant system,

Work lamp,

Tri-color indication lamp

Air gun

Heat exchanger in cabinet

3-Axis linear guideway from Taiwan Hiwin

Ball leadscrew from taiwan Hiwin

Enhance your machining capabilities with optional accessories for our High Quality 3 Axis CNC Vertical Machining Center.

Automatic chip conveyor & chip bucket (Chain type)

Spindle direct driven, speed 12000 rpm

Spindle center water spray

Air conditioner for electricity cabinet

Automatic chip conveyor & chip bucket (Screw type)

Spindle oil cooling

Nitrogen balance cylinder

4th Axis or 5th Axis

Export Certificate for High Quality 3 Axis CNC Vertical Machining Center by Nantong AJ Industry Limited.
