High-Performance Engineering Grinding Machine with Syntec CNC and Server Propel

Product Description

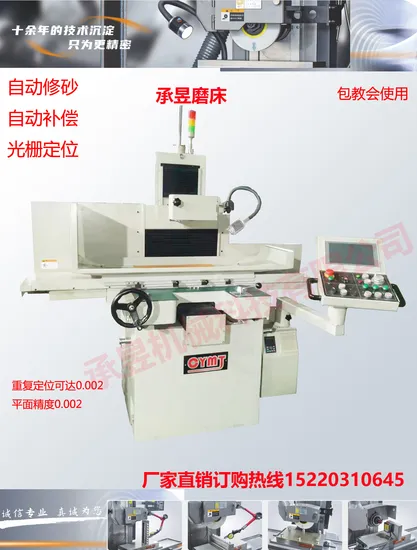

250/2550CNC Surface Grinding MachineThree Axies 250CNC Multifunction Grinding Machine Tool
Our unwavering commitment to excellence drives us to consistently refine and enhance all our offerings. We retain the right to make changes to specifications, mechanics, or design whenever necessary, without prior notice or obligation.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

Cheng Yu Machinery Technology Co., Ltd. was founded in Dongguan City, Guangdong Province. With its roots in Taiwan and three decades of expertise in grinding machine manufacturing, it brings together a group of highly skilled technical personnel with a rich legacy of accumulated knowledge. As CNC machine tools continue their rapid evolution, they are characterized by advancements in speed, precision, composite functionality, intelligence, openness, parallel drive, networking capability, and eco-friendly design. These advancements have become the pivotal trends and future directions for CNC machine tools. Dongguan Chengyu Machinery Technology Co., Ltd. excels in creating and processing machine tools, along with their accessories. Guided by a philosophy of 'technology, innovation, reliability,' and a 'meticulous' quality policy, we pledge to deliver superior products and exceptional service. Our focus starts with understanding customer processes, technological needs, production types, and quality standards. Our design and production processes are underpinned by high-level technical support, ensuring our products are continuously enhanced for greater applicability. We aim to expand the CNC industry's horizons by positioning products that offer high automation, precision, and quality. Our operations are backed by a comprehensive quality management system, top-notch equipment, and outstanding technology. Catering to market demands, Chengyu Machinery has mastered the art of designing and manufacturing high-precision CNC surface grinders, CNC forming machines, four-axis punch grinders, vertical slider grinders, and gantry rail grinders. Additionally, we excel in crafting industrial robots, automated production lines, and integrated applications. Below is a concise overview of our CNC grinding machine series: I. HS Series: Models 618 / 250 / 3060 / 4080 / 40100 (available in Servo Type / Hydraulic Type) Processing Capabilities: Surface Grinding, Grooving Features a patented hydraulic control system (Hydraulic Type) Functionality: Complete with grinding programs for flat surfaces and groove cutting. Feeding Mode: Choose from front, back, left, or right. Each grinding program includes memory feed mode. Grinding Wheel Overload Protection: Automatic Shutdown. II. Advanced Models (Servo Type / Hydraulic Type) Processing Capabilities: Surface Grinding, Grooving, Integrated Scheduling Enhanced with a patented hydraulic control system (Hydraulic Type) Functionality: Offers diverse grinding programs including surface, groove, sole, side, unequal distance, and unequal depth displacement grinding. Grinding Wheel Dressing: Automatically dresses based on set rough/fine grinding times and dressing amounts within the grinding cycle, with automatic compensation. Feeding Mode: Opt for front, back, left, or right. Each program remembers its feed mode. Equidistant and Non-equidistant Grooving, Unequal 3. Four-Axis CNC Grinding Machines: Available in Horizontal and Vertical Configurations Processing Types: Arbitrary Equal Division, Skipping Tooth Processing Waist Circle Processing: Input AB Size Triangle Fillet Processing: Input Inscribed Circle Size B and Fillet Size R Quadrilateral Fillet Processing: Input Side Lengths A & B and Fillet Size R Eccentric Circle Processing: Input Eccentricity and Starting/Ending Diameters Circle Processing: Input Starting and Ending Diameters Arc: Easily specify your desired arc size and precise rotation angle for unparalleled precision in every operation. Step Difference: Seamlessly manage rotation profiles and other intricate details with ease. Enjoy the convenience of saving your processing schedule as a file—making it effortless to recall and use for your next operation.
