China Professional Manufacturer for 100% Aramid Kevlar Rope Special Designed & Made for Quenching Cooling Section of Glass Tempering Furnace Machine with Wholes

Product Description

Brief introduction:

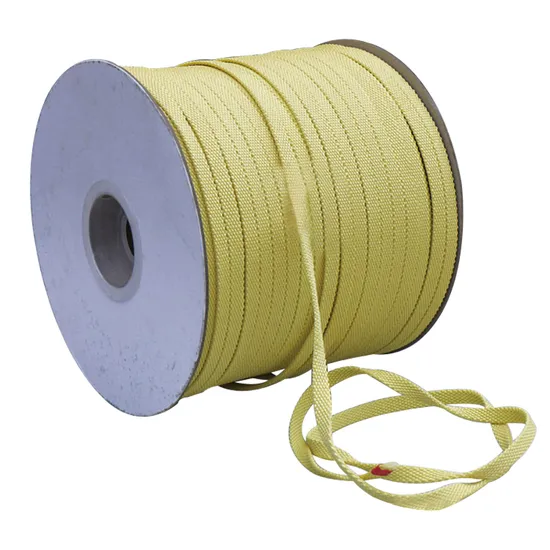

Our kevlar aramid rope is specially designed and manufactured for glass tempering furnace. It is working as the transportation rope which wrapped onto the quenching steel rollers inside cooling section. This rope is used to avoid the hot glass touch the cold steel roller and avoid any scratch on the glass surface.
After being heated by glass tempering furnace at 670-715 ºC, the glass is suddenly and fast cooled by quenching system. When the hot glass comes into touch a cold metal roller, the glass bursts due to a large temperature difference. This kevlar aramid roller rope spirally wraps around the tempering furnace quenching rollers, forming a lining between the tempered glass and the metal roller, preventing the glass from coming into contact with the low-temperature metal roller, protecting the glass from scratches, collisions, and cold explosions, facilitating the rapid transportation of high-temperature glass, Thereby improving the yield of tempered products.
There are mainly two types of roller conveyor ropes: fiberglass roller conveyor ropes and aramid high-temperature resistant roller conveyor ropes. Glass fiber used to be the main raw material for the production of roller conveyor ropes for tempering furnaces. After the application of aramid fiber in the production of roller conveyor ropes, due to the lower strength and mechanical properties of glass fiber compared to aramid fiber, aramid high-temperature resistant roller conveyor ropes are gradually replacing glass fiber roller conveyor ropes.
This kevlar fiber aramid rope has advantages such as high temperature resistance, fire retardant, high pressure resistance, wear resistance, heat resistance, chemical corrosion resistance, and good mechanical properties. The rope can withstand high temperatures and is a poor conductor of heat. Its surface is soft. When the glass burns red and reaches the softening point, it will not damage the glass surface and will not allow the glass to cool too quickly.
Aramid roller conveyor rope is mainly used for glass tempering furnace roller conveyor, tempering furnace roller winding, etc.
Other than the glass tempering furnace, this aramid kevlar rope also could be used for transportation tables of glass laminating line.
Technical features:
High temperature resistance
High pressure resistance
Abrasion resistance
Anti-static
Chemical corrosion resistance
High mechanical properties
Heat resistant
High toughness
Product features:
Adopt high quality raw material, which from USA, Tapran, Yizheng, etc
Adopt unique production process, twisting and dense weaving technique to make durable, high strength and high abrasion resistance rope
Clean surface, neat structure and free of burrs
Basic Index:

Composition	100% para-aramid (poly aramid)
Breaking strength	353N
Character	High temperature resistance (-100-500ºC)
Function	For Transport
Color	Yellow, Black, Green or White
Application	Different industry (Such as: glass tempering furnace, oil, outdoor,etc)
Shape	Flat, square, or round, webbing, etc

Kevlar Strape/Tape
No.	Size (Width x Thickness)	Min. Order Quantity	Remark
1	6x1mm	50m
2	8x1mm	50m
3	10x1mm	50m
4	20x1mm	50m
5	20x2mm	50m
6	20x3mm	50m
7	20x4mm	50m
8	25x1mm	50m
9	25x2mm	50m
10	25x3mm	50m
11	25x4mm	50m
12	30x1mm	50m
13	30x3mm	50m
14	38x1mm	50m
15	38x1.8mm	50m
16	38x2mm	50m
17	50x1mm	50m
18	50x1mm	50m
19	50x1mm	50m
20	50x1mm	50m
21	50x2mm	50m
22	50x3mm	50m
23	50x4mm	50m
24	75x3mm	50m
25	75x4mm	50m
26	80x1mm	50m
27	80x3mm	50m
28	80x4mm	50m
29	100x3mm	50m
Kevlar Rope (Flat type)
No.	Size (Width x Thickness)	Min. Order Quantity	Remark
1	8x3mm	250m
2	8x3.5mm	250m
3	8x4mm	250m
4	8x5mm	250m
5	8x6mm	250m
6	10x2mm	250m
7	10x3mm	250m
8	10x3.5mm	250m
9	10x4mm	250m
10	10x5mm	250m
11	10x6mm	250m
12	12x1.5mm	250m
13	12x2mm	250m
14	12x3mm	250m
15	12x3.5mm	250m
16	12x4mm	250m
17	12x5mm	250m
Kevlar Rope (Square type)
No.	Size (Width x Thickness)	Min. Order Quantity	Remark
1	3x3mm	500m
2	4x4mm	300m
3	5x5mm	300m
4	5.5x5.5mm	250m
5	6x6mm	250m
6	7x7mm	250m
7	8x8mm	200m
8	10x10mm	100m
9	12x12mm	100
Kelvar Rope (Round Type)
No.	Diameter	Min. Order Quantity	Remark
1	3-25mm	100m
Kelvar Sleeves
No.	Diameter	Min. Order Quantity	Remark
1	3-100mm	100m
Not all specifications listed here, pls contact us for more specifications
