Versatile Agricultural Machine for Optimal Chickpea, Peas, Soybeans, Broad Beans, Wheat Harvesting Needs

Product Description

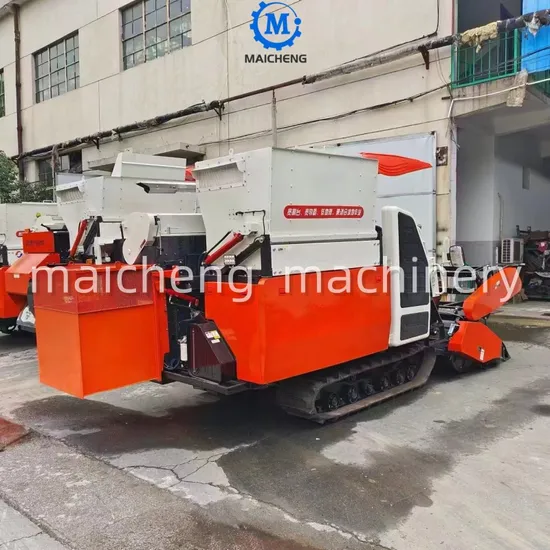

Chickpea Harvester Description
The chickpea combine harvester is a specialized agricultural machine designed for the efficient harvesting of chickpea crops. This innovative equipment is engineered to optimize the process of collecting mature chickpeas from the field, ensuring minimal loss and damage to the grains during the operation.
Working Principle
A chickpea combine harvester typically features a series of mechanisms that work in tandem to perform the tasks of cutting, threshing, and cleaning the chickpeas. The machine usually has a cutter bar at the front that severs the plants close to the ground, reducing the risk of soil contamination in the harvested grains. Once cut, the plants are fed into the threshing mechanism, where they are beaten to separate the seeds from the stalks and pods.
After threshing, the chickpeas move on to the cleaning system, which uses air flow and sieves to remove chaff, leaves, and other debris, ensuring that only clean grains are collected. Some models may also include an onboard storage facility, allowing farmers to store large quantities of chickpeas directly within the combine before unloading.
Chickpea Harvester Application
Chickpea Harvester Advantages
Chickpea combine harvesters are particularly beneficial in large-scale farming operations where manual labor would be time-consuming and inefficient. They significantly reduce the time and effort required for harvesting, thereby increasing productivity and profitability for farmers. Additionally, these machines can adjust their settings according to the specific conditions of the crop and terrain, making them versatile across different farming environments.
Technical data

Structural style	Crawler self-propelled type
Feed rate	3kg/s
Reaper width	2400mm
Cutting height	≤50mm
Supporting engine brand and model	4D35R41S1004
Supporting engine structure type	Vertical, inline, water-cooled, four stroke
Number of matching engine cylinders	4pcs
Calibration power of supporting engine	88.9kw
Matching engine calibration speed	2600r/min
Ground clearance	220mm
Working speed	0.9~7.8km/h
Fuel consumption per unit area	11~30kg/hm2
Pulling wheel diameter	Φ900mm
Number of reel plates	5pcs
Main threshing drum type	Longitudinal axial flow rod tooth type
Main threshing drum size	Φ620*2200mm
Type of cleaning device	Vibration type+wind selection
Type of transmission mechanism	Hydraulic continuously variable transmission (HST)+mechanical gearbox
Drive bridge type (front, rear)	Hydrostatic Drive
Unloading method	Mechanical automatic unloading of grain
Weight	4100kg
Dimension	5600*3000*3000mm

Production Workshop
Packaging & Shipping
FAQ
1.Can we visit your factory?
Sure.We are in Zhengzhou,Henan Province,China.For overseas clients can fly to Xinzheng International Airport.We can pick you up in the Airport.Or Zhengzhou East Railway Station. We warmly welcome you come to visit our factory.Online video visiting is also welcome.
2.How can we get the exact price?
Contact us and tell what is your raw material and request capacity,we will recommend suitable machine and price.
3.How do you control your quality?
We have passed CE certification,ISO certification.All of our products are 100% inspected and test before shipment.
4.What is the lead time?
For customized machine,it takes about 15 days after deposit.For stock machine,in 3 days.
we will tell exact time customers before order.
5.How about your after-sale service?
We offer manual instruction and engineer training before loading,after shipment we provide 24hours online support,video technical support,field installation assist,remote debugging.
If clients need,we could provide engineers for on site service until the customer can independently running the machines.
6.What is the warranty period for your machine?
12 months warranty.Long term offer spare parts at cost price.
