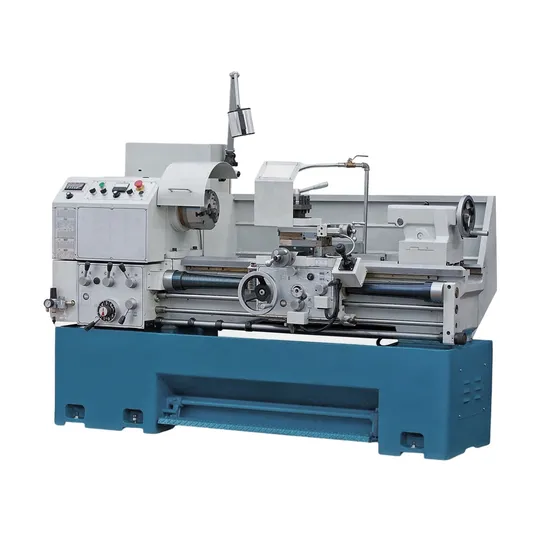

Stable Quality Variable Speed Bench Lathe Machine Mini Torno Fresadora

Product Description

Product Description

Small Precision Bench Lathe Standard accessories:
3 jaw chuck, 4 jaw chuck,steady rest,follow rest,face plate,coolant pump,work light,chang gears,dial indicator,dead center and
center sleeve,splash guard,chip pan,toolbox with tools.

Optional accessories:
CE chuck guard with micro switch,celeadscrew cover,toolpost guard,taper turning attachment,digital read out,right handwheel is alternative.
Specification

Model	C6241
Max. swing over bed	410mm
Max. swing over cross slide	255mm
Swing in gap dia. X width	580x190
Height of center	205mm
Distance between centers	1000mm
Width of bed	250mm
Total travel of cross slide	210mm
Total travel of top slide	140mm
Spindle bore	52mm
Spindle morse taper in bore	M.T.No.6
Spindle speed number	16
Range of spindle speed	45-1800R.P.M
Threads imperial pitches	2-72T.P.I (45 Nos)
Threads metric pitches	0.2-14mm (39 Nos)
Longitudinal feeds imperial	0.002-0.067/Rev (17Nos)
longitudinal feeds metric	0.05-1.7mm/Rev (17Nos)
Cross feeds imperial	0.001-0.0335/Rev (17Nos)
Cross feeds metric	0.025-0.85mm/Rev (17Nos)
Range of module pitches	0.3-3.5MP(18Nos)
Range of diameter pitches	8-44DP (21Nos)
Total travel of tailstock quill	50mm
Tailstock quill diameter	120mm
Taper in tailstock quill	M.T.No.4
Packing size(LxWxH)	2560x900x1640mm

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
