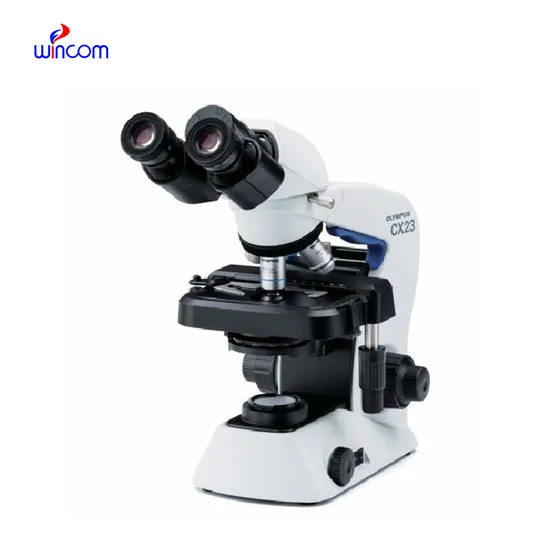

Olympus Cx23/Cx33/Cx43 Biological Compound Electronic Binocular Trinocular Microscopio Digital Microscope

Product Description

Product Description
1. Approval quality
2. In Neutro-packing
3. Certification: ISO

Olympus Biological Microscope Cx23		-B	-T
Body		Aluminum Die-cast Metal Frame, Protective Plastic Covering
Optical System		Infinity Optical System
Illumination System		Built-in Transmited Illumination System Led Power Consumption: 0.5 W (Nominal Value)
Focusing		• Stage Height Movement • Coarse Movement Stroke: 15 Mm (0.6 In.) • Coarse Adjustment Limit Stopper • Torque Adjustment For Coarse Adjustment Knob • Fine Focus Knob (minimum Adjutsment Gradations: 2.5 μm)
Revolving Nosepiece		Fixed Quadruple Nosepiece With Inward Tilt
Stage		Wire Movement Mechanical Fixed Stage • Size (w x D): 174 mm × 89 mm (6.9 In. x 3.5 In.) • Traveling Range (x x Y): 76 mm × 30 mm (3 In. x 1.2 In.) • Specimen Holder • Specimen Position Scale
Observation Tube	Type	Binocular Anti-fungal	Trinocular Anti-fungal
	Eyepiece (Anti-fungal)	10x Field Number (fn): 20 15x Eyepiece (fn): 12 (Optional)
	Tube Inclination	30°
	Light Path Selector	None	Eyepiece/Camera Port = 100/0 Or 0/100
	Interpupillary Distance Adjusting Range	48 - 75 Mm (1.9 In.-3 In.)
	Eyepoint Adjustment	370.0 - 432.9 Mm (14.6 In.-17 In.)
Condenser		• Abbe Condenser NA 1.25 With Oil Immersion • Built-in Aperture Iris Diaphragm
Objectives		Plan Achromat, Anti-fungal 4x NA 0.1 W.D. 8.0 mm 10x NA 0.25 W.D. 27.8 mm 20x NA 0.4 W.D. 2.5 mm (optional) 40x NA 0.65 W.D. 0.6 mm 100xoil NA 1.25 W.D. 0.13 mm (cx23ledrfs1 Built-in, Cx23ledrfs2/rtfs2 Optional)
Optional Accessories		Reflection Mirror (ch20-mm), Eyepiece Micrometer Dust Cover, Darkfield Stop (ch2-ds+ch2-fh) Field Diaphragm (cx23-fs)* Dedicated Wooden Case (ch20-wb2)	Reflection Mirror (ch20-mm), Eyepiece Micrometer Dust Cover, Darkfield Filter (ch2-ds)
Dimensions (w x D x H)		198 mm x 398 mm x 386 mm (7.8 In. x 15.7 In. x 15.2 In.)	198 mm x 398 mm x 430 mm (7.8 In. x 15.7 In. x 17 In.)
Weight		Approximately 5.9 Kg (13 Lb)	Approximately 6.5 Kg (14.3 Lb)
Rated Voltage/Electric Current		Ac 100 - 240 V 50/60 Hz 0.4 A
Power Consumption		Less Than 2 W

Company Profile Wincom Company Ltd. is a prfessional leading enterprisespecializing the manufacturing and supply of Laboratoy Equipments and Medical Equipments.We have our own factory to provide best quality products.We have 20 years exporting experience ,and established business relationship with 50 countries an regions in Africa,America,Europe and Asia, and win high reputation in the internation market.
We'll attended MANY MEDICAL FAIRS in many countries every year, such as Singapore, Dubi,Amercia, like
Medical Fair Asia ,Medical West Africa , FIME and so on.
Our products including three ranges, please kindly find the details as below:1)Laboratory Equipments: Microscope,Centrifuge,Water Bath,Stirrer Hotplate,Autoclave&sterilizer, (UV, VIS, UV/VIS) Spectrophotometer, Incubator & Oven and so on.2)Medical Equipments:Infant Incubator and Warmer, Xray Machine, Ultrasound Scanner, Anesthesia Machine, Medical Ventilator, Suction Apparatus,ECG Hematology Analyzer and so on.3)Medical Furnitures: Operating Table, Hospital & Examination Bed, Wheel Chair, Bedside Cabinet,Trolley, Arm Crutches, Stretcher and so on.
Related Products
FAQ 1. Q: How long is the warranty time?
A: 12 Months
2. Q: What is the payment method?
A: Westunion, TT, Moneygram, Payapl, L/C etc.
3. Q: When do you delivery?
A: Usually in 7-30 days.
4. Q: Could you offer intallation or tranning oversea?
A: Yes, we offer the service for complex machine in charge.
5. Q: It is my 1st time purchase products oversea, how to promise its safe?
A: We are vertified company by Made-in-China, and we attend many Medical Fair every year.
Welcome to visit our shop and company.
Packaging & Shipping 1. The normal package is hard carton box.
2. Accept wooden box packing in charge.
3. Pack it according to customers special request.
