Good Space Saving 9000 P/Hour Indoor Escalator
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Escalator
Use of Occasions
Indoor Type
Speed
0.5M/S
Slope Angle
30°
Width of Stair
1000mm
Cascade Level
Two
Driving Type
AC Elevator
Railing Form
EX-P
Step Road Linetype
Linear
Certification
GB7588-2003 and European En81
Voltage
1 Phase 380 V , 220V, 50Hz
Step Width
1m-0.8m
Vertical Rise
3m-10m
Warranty Period
One Year
Elevator Type
Escalator
Model Number
Escalator
Capacity
9000 P/Hour
Rated Speed
0.5m/S
Angle
30/35
Brand Name
Nova
Package
Wooden Case
Transport Package
Standard Export Package
Specification
9000 P/hour
Trademark
NOVA
Origin
China
HS Code
84284000
Production Capacity
200pieces/Year
Product Description
Good Space Saving 9000 P/Hour Indoor EscalatorDescription:
The More Trustworthy Green Channels

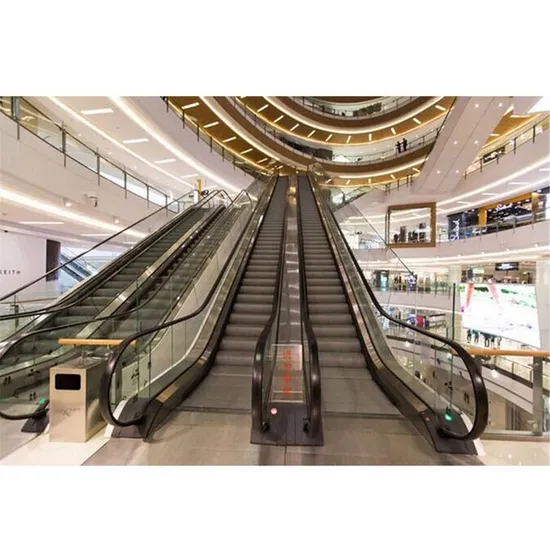

Nova escalators are exceeding your expectations! It is widely applicable for the shopping center,
supermarket, subway, airport etc. It adds one flow and bright scene to your constructions.
| Type | Step wide | Outside cladding | Construction layout opening width | Handrail spacer | Construction layout opening width | Construction layout opening width |
| A | B | C | D | E | F | |
| 600 | 600 | 1200 | 1260 | 838 | 1838 | 1260 |
| 800 | 800 | 1400 | 1460 | 1038 | 2038 | 1460 |
| 1000 | 1000 | 1600 | 1660 | 1238 | 2238 | 1660 |
| 600 | |||||||
| Type | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Vertical risw(mm) | 57 | 60 | 64 | 68 | 71 | 75 | 79 |
| Net weight(KN) | 46 | 49 | 52 | 56 | 59 | 62 | 65 |
| Reactions R1(KN) | 41 | 44 | 47 | 50 | 53 | 56 | 59 |
| Reactions R2(KN) | 5.5 | 8 | |||||
| Motor pauer(KW) | 2750 | 2780 | 2810 | 2830 | 2840 | 2860 | 2870 |
| Transport dimensions(H) | 10900 | 11890 | 12889 | 13870 | 14860 | 15860 | 16850 |
| Transport dimensions(L) | 800 | ||||||
| Type | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Vertical risw(mm) | 59 | 63 | 67 | 71 | 74 | 82 | 86 |
| Net weight(KN) | 52 | 56 | 60 | 64 | 64 | 74 | 78 |
| Reactions R1(KN) | 47 | 50 | 54 | 57 | 57 | 66 | 69 |
| Reactions R2(KN) | 5.5 | 8 | 11 | ||||
| Motor pauer(KW) | 2750 | 2780 | 2810 | 2830 | 2840 | 2860 | 2870 |
| Transport dimensions(H) | 10900 | 11890 | 12880 | 13870 | 14860 | 15860 | 16850 |
| Transport dimensions(L) | 1000 | ||||||
| Type | 3000 | 3500 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Vertical risw(mm) | 63 | 67 | 71 | 75 | 83 | 87 | 92 |
| Net weight(KN) | 59 | 64 | 68 | 73 | 79 | 84 | 88 |
| Reactions R1(KN) | 53 | 57 | 61 | 65 | 71 | 75 | 79 |
| Reactions R2(KN) | 5.5 | 8 | 11 | ||||
| Motor pauer(KW | 2750 | 2780 | 2810 | 2830 | 2840 | 2860 | 2870 |
| Transport dimensions(H) | 10900 | 11890 | 12880 | 13870 | 14860 | 15860 | 16850 |
Standard Features
1.Manual oiling
2.Built-in chain roller step
3.Inclined handrail
4.Demarcation lamp
5.Handrail inlet
6.Table type traction machine
Optional Features
1.Running direction indication
2.Handrail illumination
3.EHC colorful handrail
4.VVVF controller
5.Skirt panel brush
6.Automatic start & stop
7.Automatic oiling
8.Step lights
FAQ
1. Price
Re: please send us inquiry from Made In China, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
