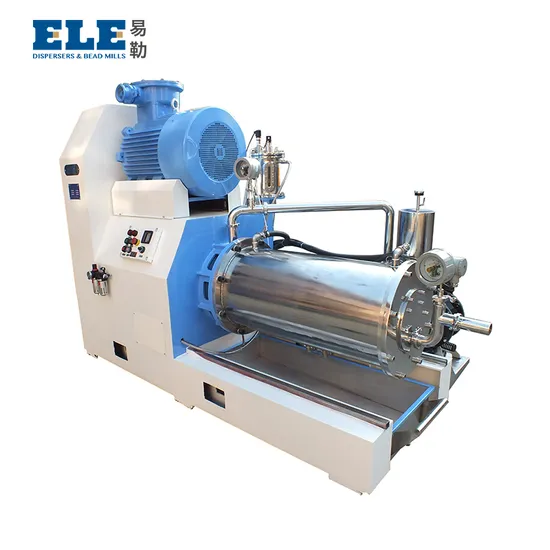

Bead Mill/Sand Mill for Car Paint
| US$2,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EDW/EBW/ENW
Controlling Mode
Electric Control System
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Ink, Paint, Pigment
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Function
Wet Grinding/ Milling
Grinding Medium
Zirconia Beads
Applicable Industry
Coating, Paint, Ink, Pigment, Latex
Bead Materials
Stainless Steel or Pure Zirconia
Usage
Industrial
Product Type
Horizontal
Material
Hard Alloy/Ss/304/316L/Ceramic
Certifcation
Ce/SGS/ISO
Performance
Nano&Micron Grinding
OEM/ODM
Acceptable
Cooling System
Circulating Liquid Cooling
Self-Protection
Auto-Stop Function
Transport Package
Wooden Case
Specification
EDW-5L----EDW-100L
Trademark
ELE
Origin
Shanghai, China
HS Code
8479820090
Production Capacity
2000
Product Description
Horizontal Bead Mill:| Model No. | Chamber Volume(L) | Motor Power(KW) | Flow(L/H) | Dimension(mm) | Weight(kgs) |
| EBW-5 | 5 | 7.5 | 50-200 | 1200X900X1550 | 400 |
| EBW-20 | 20 | 22 | 100-300 | 1850X1050X1750 | 900 |
| EBW-30 | 30 | 30 | 200-500 | 2100X1100X1900 | 1200 |
| EBW-50 | 50 | 45 | 300-800 | 2300X1350X1700 | 1800 |
| EBW-100 | 100 | 55 | 500-1500 | 2500X1400X1800 | 2500 |
| EBW-200 | 200 | 90 | 1000-2500 | 4500X1550X1900 | 3500 |
| Model | Volume Of Grinding Tank(L) | Power(KW) | Rotation Speed (rpm) | Capacity(L/H) | Dimension(mm) | Weight(KG) |
| EDW-5 | 5 | 11 | 0-1500 | 200 | 1300*1050*450 | 400 |
| EDW-10 | 15 | 22 | 0-1200 | 300 | 1600*1450*650 | 600 |
| EDW-15 | 20 | 37 | 0-1200 | 500 | 1600*1450*650 | 1200 |
| EDW-30 | 30 | 55 | 0-1000 | 1500 | 1650*1550*750 | 2200 |
| EDW-50 | 50 | 75 | 0-860 | 2000 | 1900*1850*850 | 2800 |
| EDW-100 | 100 | 110 | 0-860 | 3000 | 2300*2150*950 | 3800 |
| Model No. | Chamber Volume(L) | Motor Power(KW) | Speed(rpm) | Flow(L/H) | Dimension(mm) | Weight(kgs) |
| ENW-1.0 | 1 | 4 | 0-3000 | 2-30 | 1200X900X1400 | 260 |
| ENW-5 | 5 | 11 | 0-1500 | 30-200 | 1100X850X1600 | 400 |
| ENW-10 | 10 | 22 | 0-1200 | 50-300 | 1400X1100X1750 | 700 |
| ENW-15 | 15 | 37 | 0-1200 | 100-500 | 1550X1100X1800 | 1300 |
| ENW-30 | 30 | 55 | 0-1000 | 200-1000 | 1850X1300X1700 | 2200 |
| ENW-50 | 50 | 75 | 0-860 | 500-2000 | 2200X1500X1800 | 2800 |
Features:
1. High abrasive resistance: Materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life.
2. Dynamic fence booms: Discharge solve problems of slow discharge and grinding medium getting stuck.
3. ELE patent mechanical seal, which can bear more than 10bar pressure.
4. Corrugated cooling system increase cooling area and improve cooling efficiency.
5. Grinding beads small to 0.2mm guarantee superfine grinding/milling.
6. Meet demands of continuous production&different viscosity& fineness.
7. Inner & outer double pins improve high wet grinding/milling efficiency.
8. Ex-proof (optional) & fault alarming.
