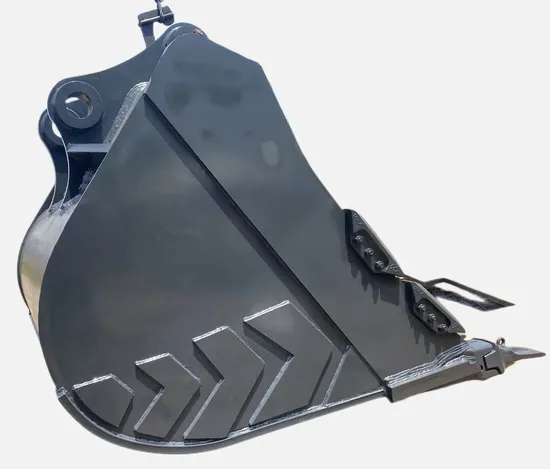

Dh500/Hitachi Brand Excavators with Rock Bucket/ Mining Bucket /Heavy Bucket

Product Description

1. Product Details

Name	Excavator bucket
Type	Heavy duty
Weight (KGS/LBS)	1840 / 4048
Struck Capacity (m³/yd³)	0.98 / 1.28
Rated Capacity (m³/yd³)	1.29 / 1.69
Opening (mm/INS)	1380 / 54.3
Depth (mm/INS)	930 / 36.6
Width (mm/INS)	1180 / 46
Lip Thickness (mm/INS)	50 / 1.97
Brand	Beneparts
MOQ	1pcs
Warranty	One Year
Bucket Design	Heavy duty flat floor design with outside bottom wear strips, upper and lower side kick plates.
Bucket Shape	Straight or spade lip, vertical shrouds, optional weld-on lip shrouds or J-bolt lip shrouds. Enhanced bucket shap allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
Superior bucket fill	Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
Application	Applicable to slope-surface trimming,waterways dredging,water ditching,etc. Designed for a wide variety of applications and materials. Kindly recommended for dirt, loam, gravel, loose clay, non-abrasive soils with limited rock.
Excavator Brands	The products we offer are fitted for all of the world famous excavator brands,

2. Bucket List

Underground	E70 E110 E120B E180 E200B E240 E300B E307
Feller	PC40-7 PC60-5-6-7 PC75 PC100-3-5 PC120-5 PC130 PC200-2-3-4-5-6-7-8 PC220-1-3-5 PC230 PC240 PC300-1-5-6-7 PC400-1-3-5
Skidder	EC55B EC60C EC140B EC200B EC210B EC240B EC290B EC360B EC460B EC550
Backhoe	EX40 EX55 ZX55 EX55-5B EX60-2-3 EX70(ZX70) EX100M EX100-1-2-3-5 EX120 EX150 EX160 EX200-1-2-3-5 ZX200 ZX210 EX220 ZX230 EX300-1-2-3-5 EX330 EX400 UH08 UH07 UH10 UH14
Tractor	SH60 SH65 SH100 SH120-A3 SH120 SH200 SH220-1-5 SH260 SH280 SH300-1-2-3 SH340 SH580-5 S25 S35 S120 S160 S250 S260 S265F2 S280 S280F2 S280FA
Scraper	SK30 SK40 SK60 SK100 SK120 SK200-1-6 SK220-1-3 SK230-3-6 SK300 SK320 SK07-1-2-7 SK07N2 SK09
Loader	DH55 DH60 DH70 DH80 DH150 DH150W DH175 DH200 DH210 DH215-7-9 DH220-3-5-7 DH225 DH255 DH258 DH280 DH300 DH320 DH330 DH340 DH370 DH400
Motor Grader	HD250 HD250SE HD400 HD450 HD500 HD510 HD550 HD550SE HD650 HD700 HD770 HD800 HD1250 HD1430
Excavator	R55 R60-5-7-9 R80 R110 R130-1-2-7 R150 R190 R200-1-2 R210 R215 R220 R225-7 R265 R290 R305 R455
Bulldozer	D20 D31 D50 D60 D65 D30 D40 D60-3 D6B D5 D80 D85 D3C D4C D4D D75 D80A-7 D4E D4H-1 D31-15 D31-18 D50-15 D50-16 D6D D5H D8N D9N D155 D

1. Excavator bucket processing flow
2. Grinding after blanking enters the rolling stage

3. Enter the drilling machine for drilling after CNC blanking
4. Enter the riveting and splicing welding stage
5. After welding, the finished products enter the inspection, sand blasting and painting
Answers to common questions in general trade
1. Ask: can I take some samples?
We are honored to provide samples for your quality inspection
2.: do you have it in stock?
Conventional sizes are, all products will be produced according to your order, package
Including samples
3. Delivery time:
It usually takes 25 working days from the minimum order quantity to the order of containers. However, the specific delivery time will vary according to the size of the order.
4. Can I mix different models in one container?
Yes, different models can be packed in the same container, and the quantity of each cannot be less than the minimum order quantity.
5. How does your factory control quality?
Quality comes first. I attach great importance to control production from the beginning to the end. Each piece of goods must be tested and inspected before packaging.
6. Your warranty period
6-12 months
7. Question: your payment method
T/T
8. What are your transportation conditions?
