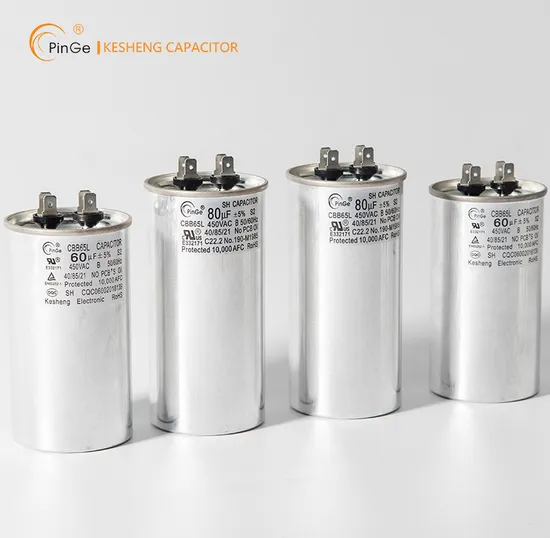

Ks Pinge AC Capacitor 450VAC Cbb65 55+3UF AC Metallized Run Capacitor for AC Unit

Product Description

rformance parameter Features and useThe capacitor has advantages of low dissipation,high insulation resistance,good self-healing character,anti-striking current,strong over-carrier capacity and steady electric performance,and reliable safety with inner anti-explosion device,etc.It is applied in air conditioning,refrigeration,it is helpful for motor's starting and running.
Product characteristics
Non-inductance winding structure
Excellent self-healing performance
Small equivalent series resistance
Fast heat dissipation,Low temperature rise
Corrosion resistant,Stable performance,high reliability
, Safety, fire and explosion protection

Model	CBB65 Motor run and start capacitor
Safety approvals	UL /TUV/VDE/CQC
Quoted standard	GB/T3667.1, UL810 ,EN60252-1
Type of working	Continuous
Operating class	CLASS B - 10000 hours CLASS C - 3000 hours
/Operating Min. / MaxTemperature:	-25/70ºC;-40/70ºC;-40/85ºC;-40/105ºC
Storage:	-40 / 70ºC
Rated Voltage UN (a.c.):	250~500 VAC
Rated Frequency fN(Hz):	50Hz / 60Hz
Voltage rise/fall time (max):	15 V/µs
Maximum Permissible Voltage:	1.10 x Rated Voltage
Maximum Permissible Current:	1.30 x Rated Current
Dissipation factor, tgδ:	20 x 10-4 at 20°C, 50 Hz
Class of safety protection:	S2(P2)
Maximum altitude:	2000 m
Capacitance Tolerance (standard)	± 5 %
Mounting:	Any position
Case	Al
Filling Resin	Oil
Dielectric	Polypropylene film
Plates	Self-healing metal layer
Voltage test terminal to terminal	2 x UN for 5 s
Voltage test terminal to case:	2200 Volt for 2 s
Insulation resistance (20ºC)	Between terminals≥2000MΩ .μF (500Vdc,60s)
Leakage - Clearance in air between parts under voltage	≥ 5mm
Vibration test	IEC 60068-2-6

KS PinGe CBB65 Electronics Component Film Motor Run High Voltage AC Power Knitting Machine Capacitor
braking resistor choke coil capacitor resistor facon capacitor distributor knitting machine capacitor capacitor price energy discharge capacitor
hisense washing machine and dryer energy discharge capacitor electrolytic capacitor super capacitor epcos capacitor polyester capacitor capacitor bank high voltage capacitor capacitor for motor starting fan capacitor CBB65cbb65 capacitor, air conditioner motor run capacitor, motor run capacitor, compressor capacitor, aluminum capacitor, washing machine capacitor.
Cbb65 AC dual capacitor 1.Widely applied to starting and running of AC
single-phase motors at 50Hz/60Hz frequency power
2. Self-healing property
3.High stability and reliablity
4.Safer with Anti-explosion design.
5.Round capacitor,can be provided oval capacitor
6.Single capacitor,Can be provided double
