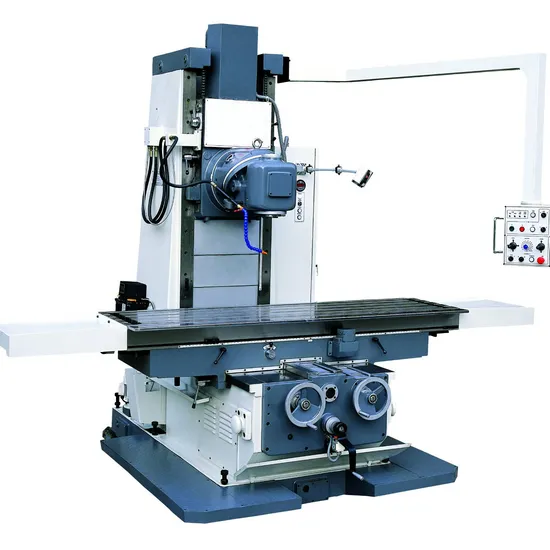

Heavy Duty Large Bed-Type Automatic X7140 Vertical Milling Machine
| US$15,890.00-17,880.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X7140
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Weight
3860kg
Transport Package
Wood Case
Specification
2290X2040X2120mm
Trademark
MacTech
Origin
Jiangsu
Product Description
Product DescriptionThe main performance characteristics:
Using MEEHANITE cast iron,
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Milling head can be rotated 30 degrees,
Import frequency conversion and frequency conversion technology to make the spindle more convenient
Application:
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,
holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries
of the ideal processing equipment.
| Specifications | X7140 | |
| Table size | mm | 1400x400 |
| Table stroke | mm | 800x400 |
| T-type slot numbers / width /space | mm | 3-18-100 |
| Distance from spindle axis to column guide way | mm | 520 |
| Distance from spindle nose to table surface | mm | |
| Spindle taper | ISO50 | |
| Spindle quill travel | mm | 105 |
| Spindle speed range | rpm | 18-1800 |
| Spindle motor power | KW | 7.5 |
| Overall dimensions | mm | 2290X2040X2120 |
| Machine weight | Kg | 3860 |
