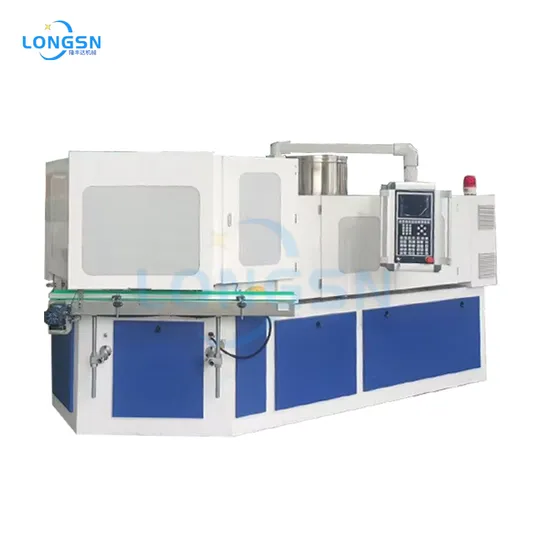

One Step Injection Stretch Blow Molding Machine Plastic Bottle Blowing Machine

Product Description

Product Description
One Step Injection Stretch Blow Molding Machine PET Pharmaceutical Bottle Blowing Machine
It is a full automatic injection molding equipment, suitable for processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN and other thermoplastic, widely used in pharmaceutical, health care products, food and beverage, cosmetics, etc..One Mold with Multi-caivity for automatic continuous production technology, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation, ensure smooth product bottle, the bottleneck of inner and outer diameter and thread high precision, no waste is the standard equipment of modern enterprise environment-friendly production.
Product Features:
1)One step fast molding without scrap, good for continuous production meeting GMP standard; 2)Neck and thread in high precision dimension to meet various sealing requirement; 3)Smooth party lines on body and bottom for perfect surface finishing, various shape available; 4)Max. Uniformity of bottle weight, thickness and volume; 5)High speed production with multi cavities available on different bottle size; 6)Suitable material: PE, PP, PS, SAN, PETG, EVA...etc for various bottles; 7)Different method as option, big space for ease mould changing. Product Parameters

Name	Unit	LSN40	LSN60	LSN80	LSN100
Screw diameter	mm	40	45	50/55	60
L/D Ratio		22:1	22:1	22:1	22:1
Injection Capacity	9	176	260	314	415
Heating power	KW	7.5	10	10.8	12
Heating section		3+N	3+N	4+N	4+N
Injection mould clamping force	KN	400	600	800	1000
The injection mold opening stroke	mm	140	140	140	150
Mould clamping force	KN	60	100	120	150
Blow mold opening stroke	mm	140	140	140	150
Injection stroke	mm	160	160	160	160
Mold Size	mm	480*340	600*390	800*400	1000*460
Min. Thickness of Mold	mm	180	240	280	280
Main motor power	KW	11	18.5	22	30
Reject Stroke	mm	210	230	230	230
Dry Cycle Time	s	3.5	4	4	4
Total power	KW	20	30	40	45
Operating power	%	52-70	52-70	52-70	52-70
System pressure	Map	14	14	14	14
Compressed air pressure	MPa	0.7-1.2	0.7-1.2	0.7-1.2	0.7-1.2
Cooling water pressure	MPa	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Product maximum diameter	mm	120	120	120	120
Product maximum length	mm	200	220	220	220
Product volume	ml	3-800	3-800	3-1000	3-1000
Dimensions	M	3*1.3*1.7	3.5*1.4*1.8	4*1.6*2	4.5*1.8*2
Equipment weight	Ton	3.5	5	8	10

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Zhangjiagang Longsn Machine Co., Ltd. is a professional manufacturer which integrating development, research, design, manufacturing, technical service and marketing to manufacture complete sets of Packaging machines .Zhangjiagang Longsn Machine Co., Ltd. factory covers an area of 8,000 square meters, has more than 10 professional design and development teams, and more than 30 professional production and installation commissioning engineers. We adhere to the policy of "market-oriented, quality-oriented, service-guaranteed and reputation-based". Longsn Machines follows the ISO 9001:2000 international quality management system, establishes and improves the quality assurance system to ensure the quality and performance of the company's products.
FAQ
Q1:Are you a trading company or a manufacturer ?A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality. Q2:What is your advantage?A2:Competitive price , Excellent technical support ,24h online service Q3:When can I get my machines after I paid?A3:We will arrange delivery on time,act according to the contract. Q4:What's your guarantee or the warranty of the quality if we buy your machines?A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years Q5:How can I install my machine when it arrives?A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
