US$95,000.00-180,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Machining Process
Pump, Pressurized
Certification
ISO9001: 2000
Color
Red, White and Yellow.
Vertical Height of Boom
39.8 M
Transport Package
Container
Specification
Total length: 11180mm Full width: 2500mm Full heig
Production Capacity
140m³ /H
Product Description
Product Description
Basic data

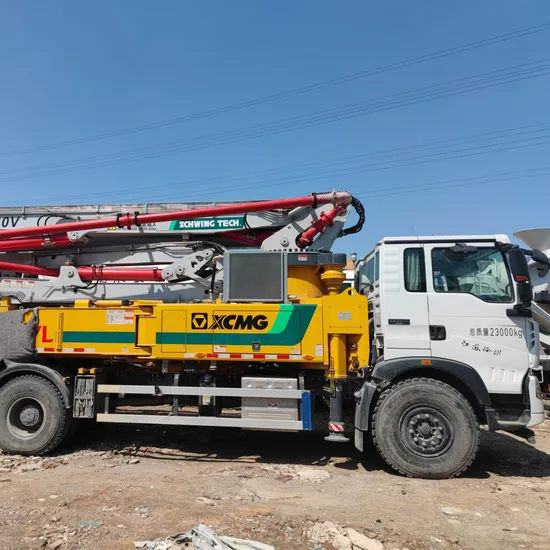

The XG HB40V is a 40-meter truck-mounted concrete pump truck designed for efficient and reliable concrete placement in construction projects. This pump truck is known for its advanced technology, excellent performance, high reliability, and superior durability. It is part of XG's "V7-series" concrete pump trucks, which incorporate top technology from Schwing, Germany, and adhere to German manufacturing process standards.
The XG HB40V 40-meter concrete pump truck is a powerful addition to any construction fleet, offering a combination of performance, safety, and efficiency that meets the demands of modern construction projects.
Parameter Specification
Model | HB40V |
Boom Length | 40m |
Maximum Reach Height | 39.1m |
Maximum Horizontal Reach | 35.1m |
Maximum Vertical Reach | 26.8m |
Overall Dimensions | 10395×2525×3820 mm |
weight of the whole machine | 23000 kg |
Key Features:
1. Advanced Technology: The HB40V features state-of-the-art skirt valve pump technology and stable reversing buffer technology, ensuring reliable operation.
2. Powerful Output: The pump truck is mounted on a Sinotruk HOWO chassis, compliant with China V emission standards, offering powerful output, large torque, high efficiency, energy conservation, and strong off-road performance.
3. Electric Control Reversing: The pumping system adopts electric control reversing, which is faster and results in less system impact, improving the actual pumping efficiency by more than 5% compared to conventional hydraulic control reversing systems.
4. Safety and Durability: The HB40V is designed with an ultimately safe boom and a lower structure of high rigidity, ensuring safety and longevity on the job site.
5. Environmental Efficiency: The pump truck effectively reduces emissions with its reversing system, contributing to a longer service life.
Detailed Photos
Product Parameters
Parameter Specification
Model | HB40V |
Boom Length | 40m |
Maximum Reach Height | 39.1m |
Maximum Horizontal Reach | 35.1m |
Maximum Vertical Reach | 26.8m |
Theoretical Output | 120 m³/h |
Engine Model | MC07.31-60 |
Maximum Net Power | 225 kW |
Emission Standard | Euro III |
Chassis Brand | Howo |
Chassis Model | ZZ5237V521GF1 |
Wheelbase | 5200 mm |
Pump Pressure | 8 MPa |
Delivery Cylinder Diameter × Stroke | φ230×1600 mm |
Outrigger Type | X |
Overall Dimensions | 10395×2525×3820 mm |
weight of the whole machine | 23000 kg |
