Aohua Factory Sales IP67 Waterproof Cable Connector M12 4pin Male Female Plug/Socket with Cable for Stage Light Waterproof Cable

Product Description

Our Advantages

Related Products

Assembly Connector	Wire to wire /Wire to panel waterproof connector,L/T screw type connector
Over-mold Connector	Nylon/PVC /Metal /Aviation waterproof connector,DC connector
T Connector	Over-mold T waterproof connector
Y Connector	Over-mold Y waterproof connector
Distributor Connector	M15/M19/M20 Series(1to2/3/4/5/6) LED waterproof connector

Lead Time:

Quantity(sets)	1 - 500	501 - 2000	>2000
Lead time (days)	4	9	To be negotiated

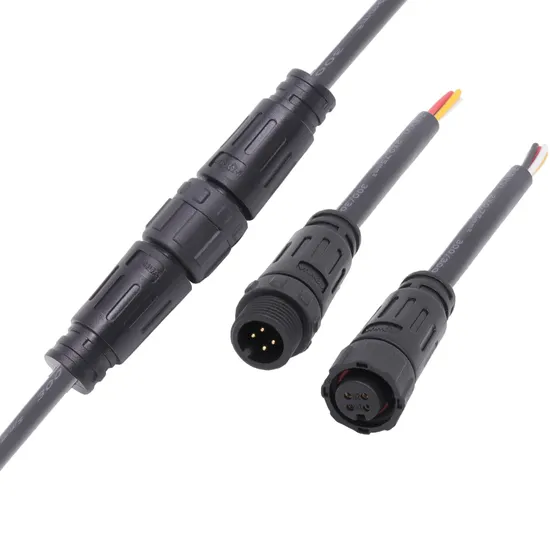

AOHUA Factory sales IP67 waterproof cable connector M12 4pin male female plug/socket with cable for stage light waterproof cable

Shell Material	Nylon PA66 UL94-V0
Pins Material	Gold-plated Brass
Pins number	2pin,3pin,4pin,5pin,6pin,7pin,8pin
Voltage and Current	300V 5A for 2pin,3pin;110V 4A for 4pin;60V 2A for 5pin;60V 1A for 6pin 7pin 8pin
Wire Connection Method	Solder type
Connector type	Assembly T type 3 ways splitter threaded lock type connector
Function	Airtight,connecting cable,protection cable, waterproof,dustproof,dampproof...
Waterproof Rate	IP67/68
Cable OD	2.6mm~7.5mm
Mechanical Life	3000 Mating Cycles.
Wire Gauge	1.0/0.75/0.5mm²;18/20/22/24AWG
Be Used For	Both cable to cable (in-line) or cable to devices
Certificate	UL/CQC/CE/RoHS/ISO9001...
Operating Rating	-40ºC~+105ºC

Before quotation, please tell us the cable details, thanks
1.Contact pin,such as : 5Pin...
2.Cable Wire size,such as: 5*22awg...
3.Cable OD,such as:5.5mm...4. Cable length,such as:Male length 1000mmm,female length 500mm...
Then we can send you a drawing to confirm,after getting your approval,making a quotauon for you at once.
Our advantages:
1.Professional R&D team, provides OEM and ODM services and accept customized orders.2.Keep improving ,high quality is our culture,cooperate with us,quality assurance and reasonable price.
3.Approved CE,UL,TUV,SAA,ISO,ROHS,etc certificates.Provide CCC,UL,VED, etc ,cable to meet the needs of the customers.
4.Professional salesman guidance to select correct product,and you can get free sample before order.5.One-stop production,We have our own factory, workshop and technology personnel.6.one to one pre-sale and after-sale services.
Exhibition scene:
Factory show:
Production Process:
Packing and shipping:
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory from China. OEM&ODM service is available,welcome to contact us.
2.Q:How can I get samples?
A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.
3.Can I choose other packing but carton?
A:Please kindly contact us,your requirement is considered.
4.How do I make sure I can get good products in your company?
A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing,therefore,we are selected by many domestic and foreign engineering and enterprises.
5.Q:Can you give me some advise about how to buy a correct product?
A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want,if you are not sure.We can give you a solution promptly.
6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.
7.What is your payment terms?
A:T/T 50% as deposit,and 50% before delivery.We'll show you the photos of the products and packages before you pay the balance.
8.Q:How to contact with you?
A:Please give me your email,it is the best and the most effective method to keep in touch with each other,and i can provide you with professional solutions in the shortest time.9.Q:Can I visit your factory?
A:Welcome to visit our factory,it is the best way to know more about us,we are full of confidence in our company capabilities.
