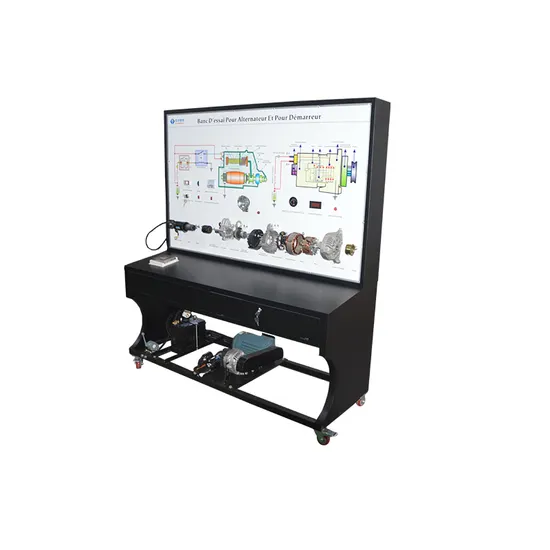

Alternator and Starter Training Platform

Product Description

Alternator and starter
1 Product overview:
The equipment is based on automobile starting system and charging system, and fully shows the composition structure and working process of starting system and charging system. It is applicable to the teaching needs of starting system, charging theory and maintenance training in secondary and higher vocational and technical colleges, general education colleges and training institutions.
2 Main components:
Starter assembly, starter disassembled parts, generator assembly, generator disassembled parts, drive motor, relay, fuse, voltmeter, ammeter, battery, ignition switch, movable bench, bench power master switch, universal caster with locking, etc.
3 Functional features:
a. The measuring panel of the training platform is painted with color spray circuit diagram, which is made of 4mm thick high-strength aluminum-plastic plate UV spray. It has the characteristics of large temperature difference resistance, wear resistance, moisture resistance, corrosion resistance, not easy to deformation, long service life, bright color and not easy to fade.
b. A detection terminal is installed on the panel of the training platform, which can directly detect the electrical signals of the pins of each sensor, actuator and transmission control unit, such as resistance, voltage, current and frequency signals.
c. The training platform is welded with high-quality steel, which has the characteristics of high strength, corrosion resistance and long service life. After plastic spraying process, it has a beautiful and high-grade appearance. The platform is equipped with self-locking caster device, which is flexible, safe, reliable and durable.
4 Technical parameters:
a. Overall dimension: 1600 × 800 × 1800mm (length × width × height)
b. Working power supply; DC 12V
5 Basic Configuration

No.	Item	Specification and Model	Unit	QTY
1	Detection control panel	Equipped with various detection terminals and color circuit diagrams	Set	1
2	Starter entirety	Volkswagen	Piece	1
3	Disassembly parts of starter	Volkswagen	Set	1
4	Generator entirety	Volkswagen	Piece	1
5	Generator disassembly parts	Volkswagen	Set	1
6	Relay	Common	Set	1
7	Fuse	Common	Set	1
8	Drive motor	AC380V 1.5KW	Set	1
9	Fault Setting System	Customized	Set	1
10	Mobile Bench(with self-locked caster device)	2400×800×1800mm(length×width×height)	Piece	1

FAQ
Q1.DO YOU ACCEPT CUSTOMIZED DESIGN? DO YOU OFFER OEM & ODM SERVICE?
A: Yes, of course! We have over 9 years' experience in customized design product.
Q2.WHAT INFORMATION SHOULD I PROVIDE FOR A CUSTOMIZED ORDER?
A: The more information you provide, the accurate solution we can prepare for you.
Such as: 1. Tenical Specification. 2. Tender process and detail requirement and other information required.
Q3.WHAT IS YOUR MOQ?
A: One unit.The more the better. The price is negotiable for large quantity.
Q4.WHAT IS YOUR PAYMENT TERM?
A: For Total ≤5000 USD, 100% T/T in advance. For Total > 5000 USD, 50% T/T in advance, balance before shipping.
Q5.WHAT IS THE DELIVERY TIME?
A: For 1-2 items,send out in 20 workdays after payment. For Large order, we can deliver in 30-45 days. lt's based on what's kinds of styles and the quantity.
Q6.HOW LONG IS THE WARRANTY TIME?
A: One year.
Q7.HOW CAN I GET THE AFTER-SALES SERVICE?
A: Usually online and vedio if necessary. Lifetime technical support.
Q8.HOW DO YOU DO TO CONTROL QUALITY?
A: We comply with IS09001 standards strictly and most of our products are CE approved.
