High Quality Plastic Film Pelletizing Machine

Product Description

High Quality Plastic Film Pelletizing Machine
Description of High Quality Plastic Film Pelletizing Machine:
PE PP plastic pelletizing machine with international advanced recycling technology and combined with the actual application condition. This plastic pelletizing recycling machine is design specializes for recycling the washed plastic PE film, such as PE plastic bags, plastic packing films, plastic shopping bags, agricultural film etc.
After PE PP plastic pelletizing machine processing, the final products are plastic pellets/granules, which can be to produce plastic bags, drainage pipes, plastic board/sheet etc.
The whole High Quality Plastic Film Pelletizing Machine line includes(customizable):

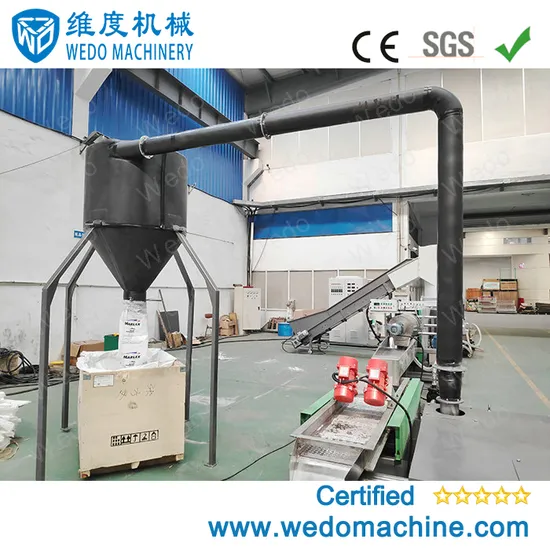

Belt conveyor → Compression barrel (agglomerator) → Efficient extruder → Non-stop hydraulic screen filter changer → Water ring cutting → Vibration machine → Dewatering machine → Blower → Storage hopper. Electric control panel
Photos of the main parts in High Quality Plastic Film Pelletizing Machine:
Belt conveyor of High Quality Plastic Film Pelletizing Machine
Compector/ agglomerator of High Quality Plastic Film Pelletizing Machine
Extruder for the High Quality Plastic Film Pelletizing Machine
Non stop screen changer unit of High Quality Plastic Film Pelletizing Machine
Watering cooling die face cutting unit of High Quality Plastic Film Pelletizing Machine
Vibriation machine of High Quality Plastic Film Pelletizing Machine
The pellets get from High Quality Plastic Film Pelletizing Machine
Function of the main parts in High Quality Plastic Film Pelletizing Machine:
1. Belt conveyor feeding: as standard design, plastic scraps such as film, bag, filament, raffia conveyed into the compacting barrel through belt conveyor; to process rolls' scraps, roll hauling off device is an optional feeding method. Motor drives of conveyor belt and hauling device cooperate with ABB inverter. Feeding speed of conveyor belt and roll hauling off is fully automatic based on compactor's barrel' space. Metal detector can combined with belt conveyor, and can interlock with control system, to warn and stop the system, in case that metal into the screw.
2. Compression barrel: crushing and compacting the material, the rotatory blades of compactor will cut up incoming scraps. Frictional heating which caused by high-speed rotatory blades will heat the scraps, and let them shrinking just below their agglomerating point. Optimal designed guide structure compacts the material and directs it into extruder screw. Crushes, dries and compacts the material, which enables a fast and stable feeding from the compactor directly into the extruder.
3. Extruder: to plasticization and degassing, a specialized single screw extruder applied to melt the pre-compacted material. The plastic scraps will well melted, plasticized in the first stage extruder, and the plastic will be extrude by the second stage extruder. With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.
4. Non-stop hydraulic screen filter changer: double stage filtering, fore filtering in the first extruder, and fine filtering in the second extruder, to reduce the frequency of filtering sieves changing. The requirements on the filter technology depend heavily on the quality of the input material as well as the planned use of granules.
5. Cutting pelletizing: die-face water ring pelletizing system as the standard granulating method in Wedo system. Self-adjusting pelletizing head for the best granulate quality, and consistently correct blades pressure can ensure long running. Rotate speed of cutting blades is automatic based on melt extruding pressure. Advanced dewatering vibration sieve combining with vertical-type centrifugal dewatering present high performance dried pellets.
Parameters of Recyled PE PP plastic film pelletizing machine:

CAPACITY (kg/h)	POWER CONSUMPTION (kw)	WATER CONSUMPTION	LABOUR	HUMIDITY CONTENT
100-150	150	Keep water cool	1-2	<2%
200-300	200	Keep water cool	1-2	<2%
300-400	280	Keep water cool	1-2	<2%
450-500	350	Keep water cool	1-2	<2%
700-800	460	Keep water cool	1-2	<2%

Advantage of Recyled PE PP plastic film pelletizing machine:
Very low labor request.
Stable running.
Automatic constant temperature control.
CE certification, ISO9001 certification, SGS certification
Configuration based on client requirement and material, and give reasonable suggest.
Wedo Produce steps: Wedo have a fully step for the Recyled PE PP Plastic Film Pelletizing Machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine. Wedo service: We do best service for you in Recyled PE PP Plastic Film Pelletizing Machine Any further about the High Quality Plastic Film Pelletizing Machine, please contact us timely we will give your professional fully support.
