European Fixed-Type Hoist for Material Handling with Pendent Control

Product Description

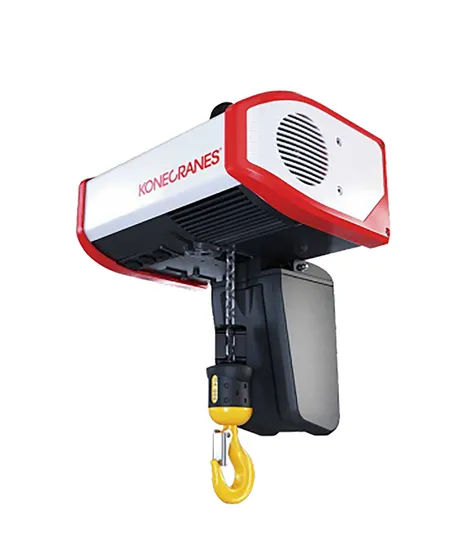

Konecranes European Fixed Type Electric Chain Hoist for Lifting Materials
Konecranes hoist is a series of electric hoist products produced by Konecranes Group. Here is the relevant introduction:

CLX chain electric hoist:

Widely applicable scenarios:
Suitable for daily material handling. It is very suitable for material handling work that is not heavy load but is laborious to handle manually. It can be used in various scenarios such as workshops, workstations, bridge cranes or cantilever cranes.
Excellent performance Has a high-quality crane core/ Adopts a sturdy aluminum alloy housing. The lifting speed is optional. The protection level reaches IP55,. Has a high working level and can be started 300 times per hour to meet the needs of frequent use.

Safe and reliable:
Equipped with safety devices such as hoist limit switches, safety brakes, and hook trolleys to ensure the safety of operators. The new chain transmission reduces the pressure on the chain, reduces the wear and failure risk of the chain, and at the same time extends the service life of the chain
C series chain electric hoist:
Intelligent and efficient: It is the new generation of chain electric hoist of Konecranes. It is built with the lifting core components of Konecranes Group. It is intelligent, durable, accurate and reliable, and the design service life exceeds 1 million times.

Some models

Lifting Weight	Model	working level Fem/Iso	Lifting speed m/min	number of chains 1/2/4
125kg	C02 08 1 012 6	3m/M6	8/2	1
250kg	C02 08 1 012 5	2m/M5	8/2	1
500kg	C05 08 1 050 5	2m/M5	8/1.3	1
1 ton	C10 08 1 100 5	2m/M5	8/1.3	1
2 ton	C25 08 1 200 6	3m/M6	8/1.3	1
3 ton	C25 04 2 320 5	3m/M6	4/0.7	2
5 ton	C25 04 2 500 5	2m/M5	4/0.7	2
10ton	C25 04 4 10T 4	1Am/M4	4/0.7	4
