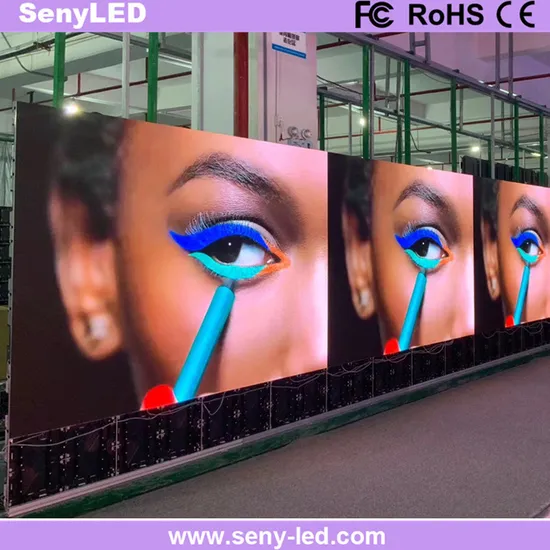

P1.86mm UHD TV Studio High Definition Video Wall Panel Digital Advertising Display Board Small Pitch Indoor Full Color LED Screen
| US$100.00-599.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SY-P1.86-43S-I
Pixel Pitch
1.86mm
Pixel Configuration
1R,1G,1B
Pixel Density
289050 Dots/M2
Scanning Mode
1/43 Scan
System Operating Platform
Win98/2000/Nt/XP
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
IP Rating
IP43
Certification
CE, RoHS, CCC, FCC
Control Mode
Synchronous Display with Control PC by DVI
Control System
Novastar, or Linsn, or Colorlight or as Required.
Display Content
Video, Picture, Cartoon, Graphics, Texts.etc.
with Video Processor
Video, VGA, HDMI, DVI, SDI/HD-SDI/3G-SDI
Cabinet Material
Die Casting Aluminum
Cabinet Size
640mm*480mm
Cabinet Weight
5.5kg Per Cabinet
OEM
Yes
Ratio
16:9
Transport Package
Flight Case or Plywood Box
Specification
P1.86
Trademark
SENY
Origin
Shenzhen, Guangdong, China
HS Code
8528591090
Production Capacity
100000
Packaging & Delivery
Package Size
76.00cm * 71.00cm * 88.00cm
Package Gross Weight
74.000kg
Product Description
P1.86mm UHD TV Studio High Definition Video Wall Panel Digital Advertising Display Board Small Pitch Indoor Full Color LED Screen Application: Applied to indoor places such as station, port, airport, meeting room, shopping mall, hotel, TV station etc. it uses as video and information display.Technical Parameter:
| Item Name | Technical Parameter | ||
| LED Parameter | |||
| Item Name | LED Type | ||
| Red LED | SMD3in1 | ||
| Green LED | SMD3in1 | ||
| Blue LED | SMD3in1 | ||
| Module Parameter | |||
| Pixel Pitch | 1.86mm | ||
| Pixel Configuration | 1R1G1B | ||
| Module Resolution | 172 x 86 pixels | ||
| Module Pixles | 14792 pixels | ||
| Module Size | 320mm x 160mm | ||
| Cabinet Parameter | |||
| Cabinet Size(W X H X D) | 640mm x 480mm x 70mm | ||
| Cabinet Resolution(dot) | 344 x 258 pixels | ||
| Module Quanity (pcs) | 6pcs | ||
| Cabinet Pixels | 88752 pixels | ||
| Pixel Density | 289050 pixels/m2 | ||
| Cabinet Type | Die Casting Aluminum, front maintenance | ||
| Cabinet Weight | 6.8kg/ cabinet | ||
| Whole Screen Parameter | |||
| Screen Brightness | 800cd/m2 | ||
| Driving Method | 1/43 scan, constant current driving | ||
| Min. Viewing Distance | 1m | ||
| Max. Power Consumption | ≤650 W/m2 | ||
| Ave. Power Consumption | ≤200W/m2 | ||
| Gray Level | 14 bits | ||
| Frame Frequency | ≥60Hz | ||
| Refresh Frequency | 3840Hz | ||
| LED Life-span | ≥100,000 hours | ||
| MTBF | ≥5,000 hours | ||
| Discrete Blind Spot Rate | <1/10000 | ||
| Continuous Blind Spot Rate | None | ||
| Blind Spot Rate | <1/10000 | ||
| Protective Scale | IP20 | ||
| Screen Plainness | <±1mm | ||
| Power Supply Mode | 220V | ||
| Working Temperature | Temperature: 0 Celsius~+40 Celsius | ||
| Storage Temperature | Temperature:-30 Celsius~+50 Celsius | ||
| Humidity | Humidity:10%~90% RH | ||
| Control Mode | Synchronous display with control PC by DVI | ||
| Control System | Novastar | ||
| Display Content | Video, picture, cartoon, graphics, texts.etc. | ||
| Interface | Standard Ethernet | ||
| Transmission Distance | Multi mode fiber <500m, single mode fiber <20km,internet cable <100m | ||
Cases:
Production Process:
Certification:
Packaging and Shipping:
Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
