Product Description

Product Description

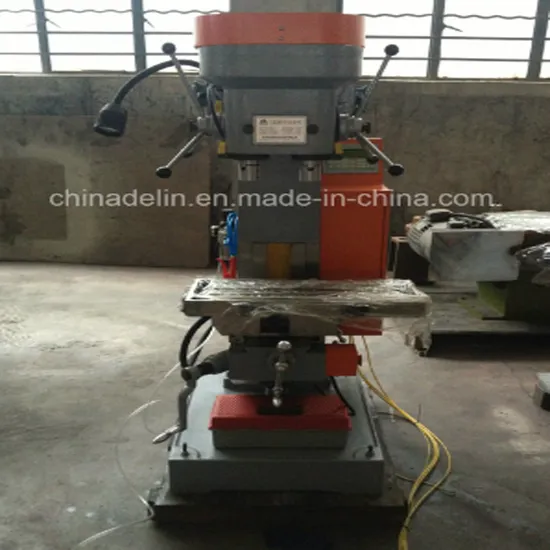

Double Spindle Compound Machine
Technical high Lights:
Applicable to batch part processing,drilling,tapping at one time with hight efficiency.
The slide base of working table uses air cylinder with buffer and pneumatic clamping,less vibration and clamp faster.
The slide base uses high-frequency quenching with lubrication,making the better perfomance.
It can achieve the function of double-drilling and double-tapping by choosing the AC-KT126*2 processor.
The total quantities of processing products can be displayed on the LCD Control panel.

	Parameter Items	Unit	Parameter
Number of spindle	Spindles number	Unit	2
	Drilling	/	Servo /power1.5KW
	Tapping	/	Cylinder
Workbench	Workbench movement	/	Cylinder
	Working size	mm	800*230
	Workbench stroke	mm	240
Spindle	Spindle wheelbase	mm	240
	Spindle forms	/	MT4
	Spindle power	kw	4KW/4P
	Rotating rotating speed	r/min	(L)50-675 (R)1000/675
	Spindle diameter	mm	Φ90
Machine specifications	Machine weight	kg	1200
	Machine dimensions	mm	1250*970*1900
Control System	PLC

Detailed Photos
Packaging & Shipping
Company Profile
Delin Intelligent Technology Co., Ltd
1.We are one manufacturer of metal foundry machinery and CNC machining machinery in China.
2.We are production automatic molding machine, gravity pressure casting machine, compound CNC polishing machine , SPM machine(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting machine, mixing sand machine and so on.
3.Our machines are extensively used in producing and machining foundry parts,metal castings,
plumbing fittings, sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please contact us!
4.We have professional technical support and after sale service. With a whole line foundry machines,good quality, reasonable prices and stylish designs.

FAQ
Q 1,Are you trading company or manufacture?
A: Yeah,Definitely We are manufacture
Q 2,Where is your factory Located?
A,Our factory is located in Quanzhou,Nanan City,Very closed to Xiamen Airport,it will take almost 1hours to the airport.
Q 3,When Can I have your price?
A:We are glad to offer you the best price, but firstly,please provide us the information of your material,with the detailed technical parameter, then we can recomment you the best suitable machine.
Q 4,How do we know how to operate and maintain the machine?
A: We will provide you the operation instruction in English Version,If you need,we will send our technician to your place and help you to train your people.
Q 5,How do you guarantee the quality?
A:That's a good questions,We are manufacture,we have our own factory,We have high repulation in China,You can check your friends or people in this line in china.
