Universal Dividing Heads /Universal Indexing Head/F4 Boring and Facing Head

Product Description

Universal Milling machine Boring and facing Head in Boring Tool / F4 Boring Heads
F4 Universal boring head:

Model	bORING BAR HOLDE SIZE	CENTER DIST BETWEEN HOLDES	Fine feed per graduation	Dia of boring
F4-18	18	23	0.005	5-250

Product name :	F1 Precision Universal Milling Machine Boring Head
Material :	Carbon steel
Hardness :	HRC46-50
Boring range :	F1-50(10-125mm);F1-75(12-225mm);F1-100(15-630mm)
Adapter:	Plastic/aluminum box
Color :	Bright
Usage :	Milling boring machine tools set

F1 4" Boring Head
Specifications:
Model: NT40-M16
Material: Steel
Boring Head: 75mm
max offset:25mm
Precision :0.01mm
Boring diameter from 12mm to 225mm
Features:
100% brand new and high quality.
NT40-M16 shank with Boring head 75mm system.
Boring head can be fine tuned,durable.
Can be boring, boring end face, cylindrical, stepped hole,and other processing.

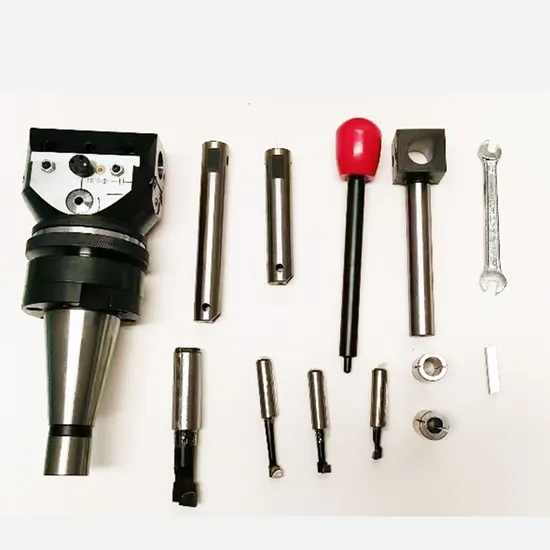

Package included:
12pcs× Boring bar
1pc× Boring head
1pc× Boring head shanks
3pcs× T wrench
F1 boring head set , NBH2084,NBJ16 Boring head set
Our main production:
Machine tool Accessories, please check below to know our main items.
Tool Holder Shanks: BT Tool Holders, DIN69871 SK Tool Holders, NT Tooling, CAT30 CAT40 CAT50
Tool Holders, HSK Tool Holders, DIN 69880 VDI Tool Holders, Morse Taper, Straight Shank Tool Holders, etc.
Tool Holders: Collet Chucks, Milling Chucks, Face Mill Holders, Weldon End Mill Holders, Morse Taper
Adapters,Drill Chucks, Tapping Chucks, Shrink Chucks, Thread End Mill Tool Holders, Screw in Milling
Cutter Holders, etc.
Collet: ER Collets, ERC Collets, ERG Collets,Milling Chuck set ,Straight Collets, OZ Collets, etc.
Accessories: Tool Holder Bushing, Nut and Spanner, Pull Stud, Tool Holder Locking Device,Machine
Vise, Live Center etc.
