Agriculture Machine Disc Harrow Withgood Quality
| US$1,800.00 | 1 Piece (MOQ) |
Basic Info.
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Green
Warranty
One Year
Overall Dimension
532*288*134
Weight
3000 Kg
Working Width
2.5
Working Depth
20
No of Disc
24
Matched Power
55-73.5
Dia.of Disc
660
Transport Package
Iron Shellframe Box
Specification
SGS
Trademark
dadi
Origin
China Shandong
HS Code
8432290000
Production Capacity
5000sets/Year
Product Description

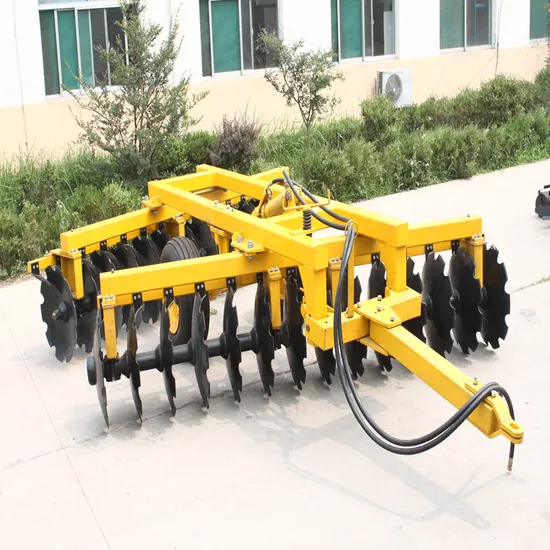

Disc Harrow Agriculture MachineThe series agricultural machinery heavy-duty off-set disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in stickly heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and chang directiong on the edge of fields.
Model | Unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
| Overall dimension | cm | 480*200*134 | 482*244*134 | 532*288*134 | 532*332*134 | 582*376*134 |
| Weight | kg | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 |
| Working width | m | 1.8 | 2 | 2.5 | 3 | 3.4 |
| Working depth | cm | 20 | ||||
| Blade spacing | mm | 230 | ||||
| No of disc | pc | 16 | 20 | 24 | 28 | 32 |
| Dia.of disc | mm | 660 | ||||
| Transport clearance | mm | >160 | ||||
| Productivity | ha/h | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 |
| Matched power | kw | 44-55 | 52.9-66.2 | 55-73.5 | 58.8-88 | 66.2-100 |
| Linkage | Trailed | |||||
