ASTM D323 Vapor Pressure of Petroleum Products Tester

Product Details

Product Description

Product Description

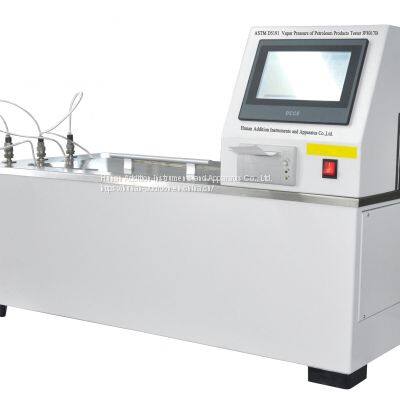

Vapor Pressure of Petroleum Products Tester
Product Model: JF8017B
Product Introduction
This instrument is mainly suitable for detecting the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products; it is not suitable for detecting the vapor pressure of liquefied petroleum gas. The apparatus uses a gas chamber filled with a cooled sample into a vapor pressure tester and connected to air at a certain temperature.
Technical Parameter
1. Applicable standard: ASTM D323 ISO3007 NFM07007 GB/T8017
2. Temperature control method: high-quality PID digital temperature controller
3. Temperature control accuracy: 37.8±0.1℃
4. Oscillation mode: horizontal automatic oscillation without manual operation
5. Working unit: two oxygen bombs
6. Pressure correction: externally connected to a precision pressure calibrator, with a fine-tuning function inside the instrument
7. Connection method: high-quality stainless steel quick connector connection, no leakage
8. Power of the whole machine: 1500W
9. Working power supply: AC220,240V 50,60HZ
10. Instrument size: 780*450*490mm
11. Net weight: 41KG
Main Feature
1. Microcomputer controller, PID function, digital display temperature (continuous display during testing), degree 0.1°C, Pt100 RTD temperature probe;
2. The instrument is made of cold-rolled steel plate, and the surface is electrostatic sprayed, which is corrosion-resistant and easy to clean.
3. The instrument welding adopts butt welding technology, no solder joints, beautiful appearance and generous appearance.
4. The instrument adopts imported pressure transmitter with high pressure display.
5. All stainless steel inner tank water bath to prevent rust.
6. High-quality quick connector, plug and use, no leakage, easy operation.
