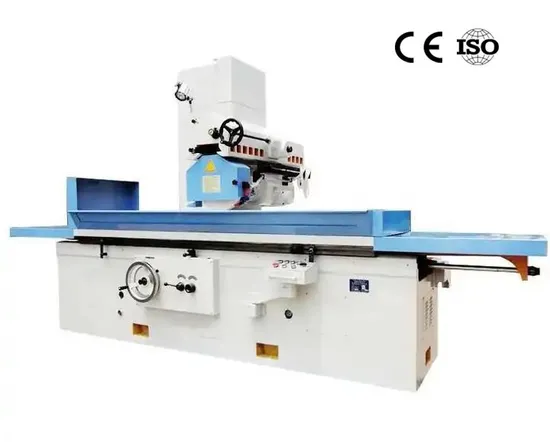

CNC Grinding M7150 Steel Flat Surface Grinding Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
M7150
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Longitudinal Motion Stroke(Hydraulic)
1350
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84601910
Product Description
| Wheel Head Moving Surface Grinding Machine M7150 Feature |
| ·The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation. ·Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous. ·The main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop. ·Grinding can be all kinds of plane and complex shaped surface,suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker. |
| Specifications | M7150 | M7150*16 | M7150*20 | M7150*30 | |
| Max. workpiece to be ground | mm | 1250*500*600 | 1600*500*600 | 2000*500*600 | 3000*500*600 |
| Longitudinal motion stroke(Hydraulic) | mm | 1350 | 1700 | 2100 | 3100 |
| Distance from table surface to spindle center | mm | 780 | 780 | 780 | 780 |
| Vertical feed wheel movement per lap | mm | 1 | 1 | 1 | 1 |
| Vertical feed hand wheel per movement | mm | 0.01 | 0.01 | 0.01 | 0.01 |
| The maximum stroke of transverse motion | mm | 550 | 550 | 550 | 550 |
| Horizontal intermittent movement speed(stepless) | m/min | 0.5-3 | 0.5-3 | 0.5-3 | 0.5-3 |
| Longitudinal velocity(stepless) | m/min | 3--30 | 3--30 | 3--30 | 3--30 |
| Spindle speeds | r/min | 1440 | 1440 | 1440 | 1440 |
| Wheel size(dia*width*bore) | mm | Ø400*40*Ø127 | Ø400*40*Ø127 | Ø400*40*Ø127 | Ø400*40*Ø127 |
| Grinding head motor power | kw | 7.5 | 7.5 | 7.5 | 7.5 |
| Total motor power | kw | 13 | 14.6 | 14.6 | 16 |
| Oil pump motor power | kw | 4 | 5.5 | 5.5 | 5.5 |
| Max loading capacity of table | kg | 800 | 1240 | 1410 | 1600 |
| Net weight | kg | 5000 | 6500 | 7500 | 9000 |
| The machined surface of the base of parallelism | mm | 1000:0.015 | 1000:0.015 | 1000:0.015 | 1000:0.015 |
| Surface roughness | μm | Ra0.63 | Ra0.63 | Ra0.63 | Ra0.63 |
| Machine size | cm | 300*190*240 | 460*190*240 | 525*190*240 | 655*190*240 |
| Standard Accessories | Optional Accessories | |
| Coolant tank | Parallel wheel dresser | |
| Standard electro magnetic chuck | Digital readout for Y/Z axis | |
| Balancing arbor | Wheel balance stand | |
| Wheel flange | Coolant tank with magnetic separator and paper filter | |
| Wheel extractor | Coolant tank with magnetic separator | |
| Leveling wedge and bolt | ||
| Tool box and tools | ||
| Standard grinding wheel | ||
| Working lamp | ||
| Wheel dresser stand(not include diamond pen) | ||
| Build in electro magnetic chuck controller |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
