Gravity Die Casting Machine for Aluminum Casting

Gravity Die Casting Machine for Aluminum Casting

US$20,000.00
1-19 Sets
US$8,100.00
20+ Sets

Basic Info.

Model NO.
JJ-CM99
Type
Gravity Casting Machine
Structure
Tilting Casting Machine
Mold Max.Installation Size
810X600 mm
Tilt Angle
0-90degree
Power
AC 380V 50/60Hz
Total Power
11kw
Name
Aluminum Gravity Casting Machine
Application
All Manufacturers of Metal Parts
Usage
Cars and Motorcycle Accessories
Machine Type
Gravity Casting Machine
Hydraulic Lube
200L
Core-Pulling
Front and Rear
Energy Saving
Yes
Casting Speed
Aadjustable
Casting Quality
High Quality
Drive Method
Hydraulic Drive
Transport Package
Standard Wood Packing
Specification
1100x7000 mm ( or customized )
Trademark
WXJINGJIEKJ
Origin
China
HS Code
845430900
Production Capacity
300set /One Year

Packaging & Delivery

Package Size
250.00cm * 200.00cm * 160.00cm
Package Gross Weight
30.000kg

Product Description

Gravity Die Casting Machine for Auto Aluminum / Brass Parts casting
Product Description

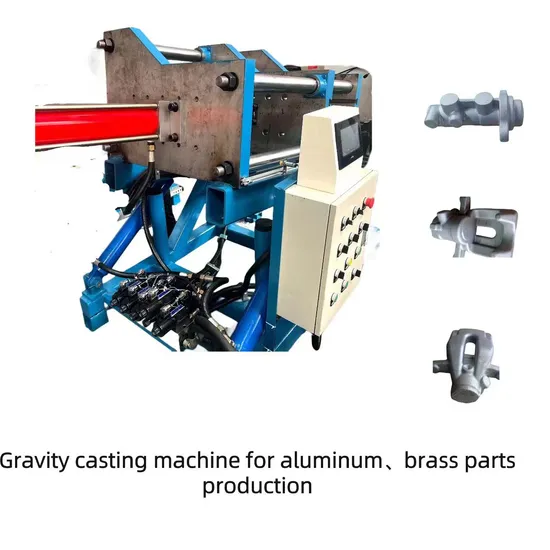

0-90°tilting gravity casting machine, it uses for pouring aluminum ,copper or brass products for auto parts or others foundry company.. Below are our gravity casting machine photos:
We use YUKEN brand solenoid valve and customized big brand oil cylinder for gravity casting machine , high quality oil tube. Make sure the casting machine quality is high for our customer. Product Parameters

Parameter / Model JJ-5040 JJ-6050 JJ-8060 JJ-1080 JJ-1210
Mold plate Max.size 700*500mm 800*600mm 1100*700mm 1300*900mm 1500*1000mm
Mold Max.installation size 510*400mm 610*500mm 810*600mm 910*800mm 1200*800mm
Mold plate thickness 50mm 70mm 85mm 115mm 130mm
Open and close main cylinder diameter/stroke Φ80*700mm (Double cylinder) Φ80*700mm (Double cylinder) Φ80*600mm (Double cylinder) Φ100*700mm (Double cylinder) Φ125*900mm (Double cylinder)
Core jacking cylinder diameter/stroke Φ63*50mm Φ63*50mm Φ63*50mm Φ63*50mm Φ63*50mm
The Max. distance between two mold plate 900mm 900mm 900mm 1000mm 1200mm
The Min. distance between two mold plate 200mm 200mm 300mm 300mm 300mm
Tilt angle 0-90° 0-90° 0-90° 0-90° 0-90°
Tilt speed Manually adjustable Manually adjustable Manually adjustable Manually adjustable Manually adjustable
Equipped with a two - way cold air system solenoid valve solenoid valve solenoid valve solenoid valve solenoid valve
Power AC 380V 50/60Hz AC 380V 50/60Hz AC 380V 50Hz AC 380V 50/60Hz AC 380V 50/60Hz
Rated power of hydraulic station 5.5KW 5.5KW 7.5KW 11KW 15KW
Hydraulic system pressure/flow ratingL/min 15Mpa/21 15Mpa/21 17Mpa/27 19Mpa/47 21Mpa/53

Our gravity casting machine have both manual and automatic function. , we accept customized .,it mainly use in aluminum / copper casting foundry ,. such as auto parts,motorcycle parts, . It also can produce casting parts with sand core.
Our Advantages
We are also a casting automatic production line manufacturer, we have gravity casting unit and turntable gravity casting production line , all use robobt to pouring ! It is easy to operate and save labour. increasingly increase prodcution ! and safe!
1.Gravity casting automatic production line
Advantage :
-14 sets gravity casting machines, large production for foundry company.
-Every 5-7minutes one circle pouring (according to product cooling time to set ),
- One robot pouring , continous pouring( can be 24 hours working )
- One 11KW hydraulic station ( power saving ) for full production line
- rotary round turntable , diameter: 10M
- Just need 1-2 workers to operate( save labour)
- It also can come true robot pick up products, can according to customers'
need to make( come true unmanned automation )

2.RobotIc gravity casting Unit
Advantage :
- Four or six gravity casting machines for one unit
- Every 5 minutes one circle pouring (according to product cooling time to set ),
- One robot pouring , continous pouring( can be 24 hours working )
- One 5.5KW hydraulic station ( power saving ) for gravity casting unit
- Just need 1-2 workers to operate( save labour)
- can pouring product with sand core,
We have our own robot pouring system, which we have gotten the patent and
software copyrights Certification.
Gravity casting automatic production line Photos :
Robotic gravity casting Unit photo:
Company Profile:
We are automatic equipment and automatic production line manufacturer in China. Mainly for metal and foam products' equipment . Such as aluminum or brass gravity casting production line ,aluminum or brass gravity casting unit, PU foam products production line , gravity casting machine, high pressure PU foam machine ...., all our automatic production line with robot pouring , SIEMENS PLC programming, robot on line tracking pouring. We have our own patent and software copy rights. we have more than 6 years experience, with experienced team . Our most customers are China mid or big companys , we have our own export rights. With high quality and best price products, we belive we can have a good cooperation.
Workshop:
Our Office
Certifications
Our company Gravity casting automatic production line and gravity casting unit with our own patent and software copyrights certification:
Packaging & Shipping
After Sales Service
One year warranty , Lifetime maintenance
We provide on line or video or customer's factory service.
Installation Instructions
For gravity casting production line, once the equipment reach customer's factory, we will arrange the workers to customer's company to install,test ,training .
Lead time : 15-30 days after receive the deposite by T/T ( for single gravity casting machine) , 90days for production line .
Payment term : 50% deposite by T/T, 50% paid before delivery

Installation :
For single gravity casting machine, we can teach how to install it by video or phone.
Service: on line / phone/ video/ oversear if need.
