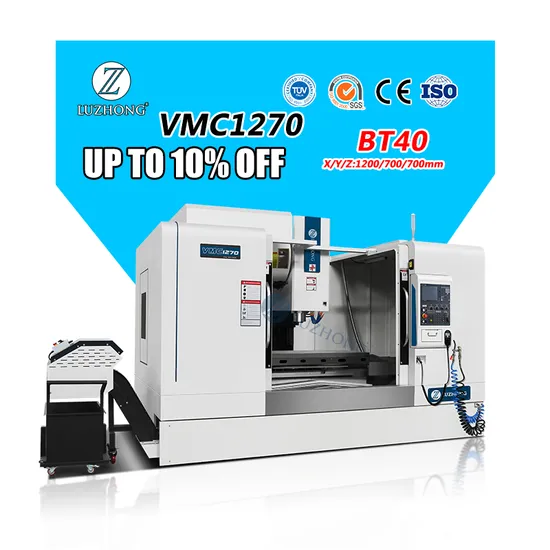

SPECIFICATIONS | Units | VMC1270 |
Table size | mm | 1260*700 |
X axis travel | mm | 1200 |
Y axis travel | mm | 700 |
Z axis travel | mm | 700 |
Max. worktable load | kg | 1000 |
T slot(number-width*pitch) | - | 5-18*110 |
Max. spindle speed | rpm | 8000 |
Spindle taper | mm | BT40 |
Main motor power | kw | 11/15 |
X/Y/Z rapid traverse speed | m/min | 24/24/18 |
Cutting feed speed | mm/min | 1-6000 |
Guide rail type | - | Linear rail |
Distance from spindle axis to column surface | mm | 750 |
Distance between spindle nose and table surface | mm | 100-800 |
Positioning accuracy | mm | 0.0075 |
Repeat positioning accuracy | mm | 0.005 |
Tool magazine | - | Arm 24 |
Max. tool diameter | mm | 78/120 |
Max. tool weight | kg | 18 |
Machine weight | kg | 8000 |
Overall dimension(L*W*H) | mm | 3400*2900*3000 |
| |
MACHINE CONSTRUCTHigh strength high quality HT300 cast iron | CONTROL SYSTEMStandard: GSK25i / KND1000 control |
TAIWAN PRECISION SPINDLE1. Taiwan spindle BT40 8000rpm 2. Passed dynamic balance ISO rating test | TAIWAN TOOL MAGAZINE1.Taiwan OKADA arm 24 tool magazine . 2. tool change time only 2-3 seconds. |
LEAD SCREW AND COUPLING1 China famous brand lead screw, 2. lead screw bearing using SKF or NACHI bearing, 3. coupling YC directly connected | TAIWAN PRECISION LINEAR RAILS 1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class 2. Brand: HIWIN or PMI |
TOOL UNCLAMP CYLINDERTaiwan spindle Tool unclamp cylinder | AIR STORAGE TANKAir storage tank to ensure the stability of spindle tool change |
STRONG CHIP PUNCHINIG Standard with strong chip punching function | LUBRICATION SYSTEM HERG Automatic centralized lubrication device . |
AIR GUN AND WATER GUNHigh-pressure air guns and high-pressure water guns | PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components |
SCHNEIDER ELECTRICAL COMPONENTS1. with Schneider safety electrical components 2. Quick plug as standard | AIR CONDITIONERwith Industrial electrical cabinet air conditioner. Cooling the electric box better . |
TESTING Each machine passed Renishaw laser interferometer testing | TESTING Each machine passed Renishaw ballbar testing |
BT40 MILLING CHUCK Standard with BT40 milling chuck . | LOCKING KNIFE BLOCK Standard with lock knife block . |
