High Performance Pipe Extruder for Durable PVC Pipe Lines

Product Description

Introduction

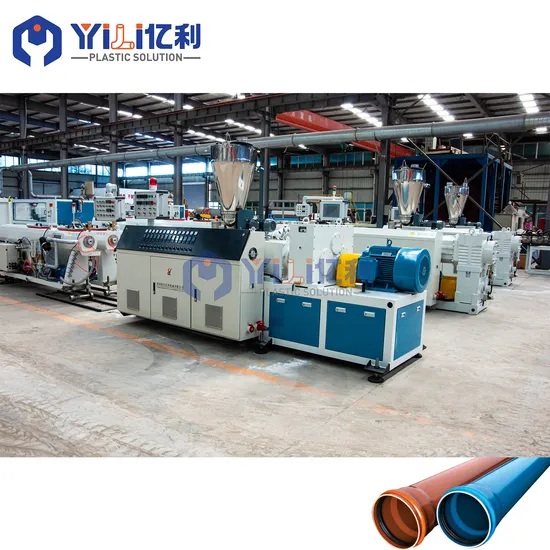

YILI Machinery proudly presents an extensive array of PVC pipe making machines, expertly engineered to handle U-PVC, C-PVC, M-PVC, and O-PVC materials. Our state-of-the-art PVC pipe extrusion lines feature a conical twin-screw extruder, an innovative spiral die head, vacuum tank, water tank, and advanced haul-off mechanisms. Additionally, you can opt for a no-dust cutter or a precision planetary cutter, alongside a belling machine that expertly crafts O-ring, rectangular, or U-type sockets. Our highly versatile machines are capable of producing pipes in diameters ranging from 16mm to 630mm with wall thicknesses varying from 1mm to 30mm, ensuring robustness and versatility for a wide range of applications.
Technical Specification

Model	Pipe Diameter (ID) (mm)	Extruder Type	Max Capacity (kg)	Max. Haul off speed (m/min)
YL-PVC32 (Four)	16mm-32mm	SJZ65/132	250	8*4
YL-PVC63 (Dual)	20mm-63mm	SJZ65/132	250	12*2
YL-PVC63	20mm-63mm	SJZ55/110	150	15
YL-PVC110	40mm-110mm	SJZ65/132	250	8
YL-PVC160	50mm-160mm	SJZ65/132	250	6
YL-PVC200	63mm-200mm	SJZ65/132	250	3.5
YL-PVC315	110mm-315mm	SJZ80/156	450	3
YL-PVC450	200mm-450mm	SJZ80/156	500	2.5
YL-PVC630	315mm-630mm	SJZ92/188	800	1.2

Tech Features & Advantages
Boasting a uniquely designed screw structure, our machines offer optimized plasticization for diverse formula types, enhancing material efficiency and quality. Our systems feature the flexibility of conical and parallel extruders, perfectly suited for pipes under varying pressure levels and CaCO3 conditions, ensuring adaptability to your specific needs. The spiral die design minimizes melt seams on the pipes while a high compression ratio guarantees pipes with exceptional density and superior mechanical properties, making them ideal for demanding applications. Equipped with a highly efficient single or dual-chamber vacuum and cooling tank, our systems ensure optimal shaping and cooling of the pipes. Employing Servo or frequency speed control alongside an independent multi-track haul-off structure, our machines ensure uniform pipe pulling without deformation, delivering consistent quality. The planetary cutter features both mechanical and hydraulic systems to feed the blades, enabling simultaneous cutting and chamfering for precision and efficiency.
Technology Process -Extruder-
-Mould-
- Vacuum tank-
-Haul-off-
- Planetary cutter-
-Automatic belling machine-
