Swat Usage Counter Terrorism See Through Wall Radar
Basic Info.
Model NO.
YSR120
Application
Special Equipment, Traffic
Detection Range
12 M
Field of View
Both 120 °in Azimuth &Elevation
Start up Time
<2s
Penetrable Wall Materials
Cement, Plaster, Brick, Concrete, Reinforced Concr
Frequency Range
600 MHz-1800 MHz
Wireless Capability
Optional Build-in Wireless Module for Remote Monit
Working Temperature
-10 C~+50 C
Battery Operation Time
>4 H
Size
240*137*140mm
240*137*140mm
1.4kg
Transport Package
Protection Packing
Trademark
Topsky
Origin
Beijing
Production Capacity
1010
Product Description

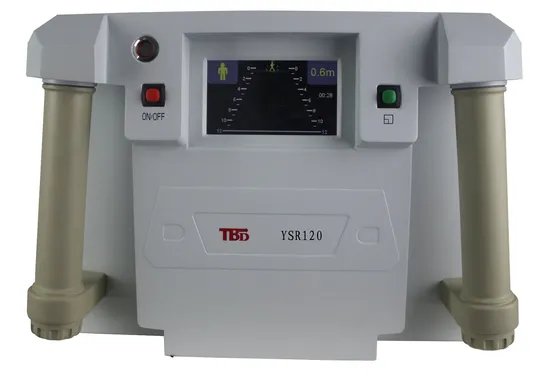

Model: YSR120
Brand: Topsky
1. General description:
TS-120 Through wall radar is an ultra-portable, handheld and durable presence of life detector. It is compact size and lightweight and can provides personnel critical information in real-time about the presence of life and its distance behind a wall.
TS-120 is professionally designed for special safety protection or emergency industry. It is widely used in tactic assult, safety protection, Hostage Recovery, search &rescue and son on.
2. Features
Gives Fast, Tactical Information regarding movement, distance, speed and direction
12 m detection range
Ultra portable and compact
Reliable detection of life behind most common wall materials
Simple user interface for clear and immediate interpretation
3. Delivery kit
1*TS-120 See Through Wall Radar
2*Lithium charge batteries
1*power charger
1*Manual book
L* Hard-suit case
| Detection range | 12 m |
| Field of view | Both 120 °in azimuth &elevation |
| Start up time | <2s |
| Penetrable wall materials | Cement, plaster, brick, concrete, reinforced concrete, adobe, stucco, drywall and many other standard building materials |
| Frequency range | 600 MHZ-1800 MHZ |
| Wireless capability | Optional build-in wireless module for remote monitoring and control |
| Working Tempreture | -10°C~+50°C |
| Battery operation time | >4 h |
| Size | 240*137*140mm |
| Weight | 1.4kg |
