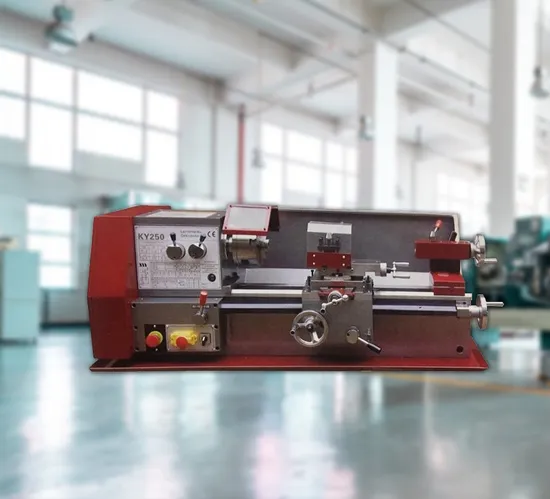

Mini Horizontal Metal Lathe Machine Torno Manual Gear Head Engine Bench Lathe Machine (KY250)
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
KY250
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Motor
750W
Height of Center
125mm
Taper of Tailstock Sleeve
Mt2
Max. Travel of Tool Post
70mm
Modulum Thread Cutting
0.1-1.25mm(10 Kinds)
Net Weight
151kg
Overall Dimensions(L*W*H)
1220*550*410mm/1470*550*410mm
4-Jaw Chuck(125mm)
1 PC
3-Jaw Chuck(125mm)
1 PC
Change Gears
1 Set
Transport Package
Plywood Case
Specification
KY250
Trademark
Can use customers′s brand
Origin
China
HS Code
84581900
Production Capacity
150-200sets/Month
Product Description
Features
1.Economical, widely useful hobby lathe.
2.V-way bed is precision ground.
3.Spindle is supported by precision tapered bearing.
4.Gear head enables to quickly change speeds.
5.Power longitudinal feed allows threading.
6.Adjustable gids for slidways.
7.Change gears has large feed and threading function.
8.Tailstock may be offset for turning tapers.
| Specifications | |
Height of center | 125mm |
Max. Distance between centers | 450(700)mm |
Max. Length cutting | 420(660)mm |
Max. Swing over bed | 250mm |
Max. Swing over carriage | 130mm |
Taper of spindle nose | MT4/27mm |
Spindle speed range(6 steps) | 115-1620mm |
Metric thread cutting | 0.2-3.5mm(20 kinds) |
Inch thread cutting | 8-56/l(20 kinds) |
Modulum thread cutting | 0.1-1.25mm(10 kinds) |
Range of longitudinal feed | 0.05-0.1mm |
Max. Travel of tool post | 70mm |
Max. Round angle of tool post | 45ยบ |
Taper of tailstock sleeve | MT2 |
Motor | 0.75KW |
Overall dimensions(L*W*H) | 1220*550*410mm/1470*550*410mm |
Net weight | 151kg |
| Optional accessories | |
4-jaw chuck(125mm) | 1 pc |
Follow rest $ Steady rest | 1 set |
Face plate | 1 pc |
Rolling center | 1 pc |
Steel cutter(6pcs) | 1 set |
Stand | 1 pc |
| Standard accessories | |
3-jaw chuck(125mm) | 1 pc |
Chip tray & splash guard | 1 set |
Safety chuck cover | 1 set |
V-Belt(0-710) | 1 pc |
| Dead center 4# 2# | 1 pc |
| 1 pc | |
Inner hexagonal wrench 6mm | 1 pc |
| Dead wrench 10mm 13mm 18(19)mm | 1 pc |
| 1 pc | |
| 1 pc | |
Change gears | 1 set |
Wrench for tool post | 1 pc |
