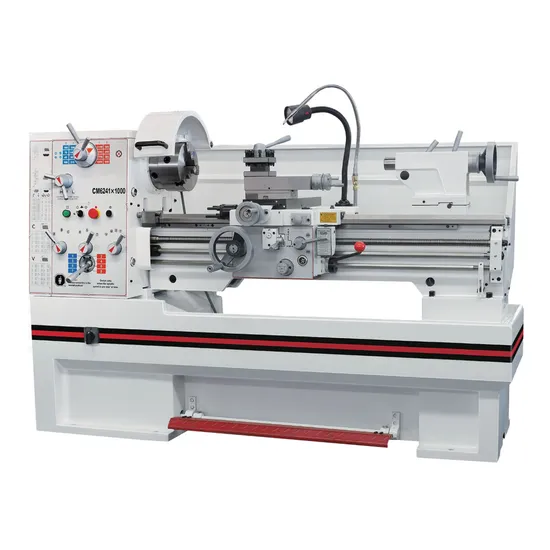

Cm6241 Cm6241V Horizontal Universal Metal Manual Lathe Machine Price
| US$6,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CM6241 CM6241V
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Name
Lathe Machine
Color
Customized Option
Keyword
Lathe C6241
Production Capacity
30 Set/Month
Product Description
CM6241 CM6241V Horizontal Universal Metal Manual Lathe Machine Price # 2 Axis digital readout system (optional)# Quick change toolpost with 5 holders (optional)# Concertina leadscrew cover (optional)# Gear drive headstock for quick change of spindle speeds# Precision V-beds are hardened and ground, incorporating a rigid webbed casting# Foot operated spindle brake with safety cut out switch# Change gears for metric and imperial thread cutting# Adjustable taper roller bearings support the spindle# Inching button is incorporated on the control panel for convenient spindle speed selection# Enclosed quick action gearbox for thread cutting and auto feeding# Powered longitudinal and cross feeds# D1-6 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard# Removable gap bed-way for larger diameter jobs| technical parameter | Specification | Models | |
| CM6241×1000/1500 | CM6241V×1000/1500 | ||
| Processing range | Capacity | ||
| Maximum workpiece turning diameter on the bed | Swing over bed | 410mm(16") | |
| Maximum workpiece turning diameter on the carriage | Swing over cross slide | 255mm(10") | |
| Maximum turning diameter in the saddle groove | Swing in gap diameter | 580mm(23") | |
| Active length of the saddle in front of the faceplate | Length of gap | 190mm(7-1/2") | |
| Two top center distance | Admits between | 1000mm(40")/1500mm(60″) | |
| Spindle center height | Center height | 205(8″) | |
| Bed width | Width of bed | 250(10") | |
| Spindle | HEADSTOCK | ||
| Spindle end | Spindle nose | D1-6 | |
| Spindle through hole diameter | Spindle bore | 52mm(2") | |
| Spindle bore taper | Taper of spindle bore | No.6Morse | |
| Spindle speed range | Range of spindle speed | 16 changes 45-1800r/min | 30-550r/min or 550-3000r/min |
| Feed and thread | FEEDS AND THREADS | ||
| Small pallet maximum longitudinal stroke | Compound rest travel | 140mm(5-1/2") | |
| Middle carriage maximum lateral travel | Cross slide travel | 210mm(8-1/4") | |
| Large screw specifications | Lead screw thread | 4T.P.I. | |
| The maximum size of the cutter bar (width × height) | Max.Section of tool (W×H) | 20×20mm(13/16") | |
| Longitudinal feed range | Longitudinal feeds range | 0.05-1.7mm/rev(0.002"-0.067"/rev) | |
| Horizontal feed range | Cross feeds range | 0.025-0.85mm(0.001"-0.0335"/rev) | |
| Metric thread range | Threads metric pitches | 39kinds 0.2-14mm | |
| Inch thread range | Threads imperial pitches | 45kinds 2-72T.P.I | |
| Diameter thread specification | Threads diametral pitches | 21kinds 8-44D.P. | |
| Modular thread specification | Threads module pitches | 18kinds 0.3-3.5M.P. | |
| Tailstock | TAILSTOCK | ||
| Tailstock sleeve diameter | Quill diameter | 50mm(2") | |
| Tailstock sleeve stroke | Quill travel | 120mm(4-3/4") | |
| Tail sleeve inner hole taper | Quill taper | No.4 Morse | |
| Lateral adjustment | Cross adjustment | ±13mm(±1/2") | |
| Motor | MOTOR | ||
| main motor power | Main motor power | 2.2/3.3kW(3/4.5HP)3PH | |
| Cooling pump power | Coolant pump power | 0.1KW(1/8HP),3PH | |
| Dimensions and weight | DIMENSION AND WEIGHT | ||
| Dimensions (length × width × height) | Overall dimension(L×W×H) | 194×85×132cm/244×85×132cm | |
| Box size (length × width × height) | Packing size(L×W×H) | 206×90×164cm/256×90×164cm | |
| Net weight / gross weight | Net weight/Gross weight | 1160kg/1350kg 1340 kg /1565 kg | |
