Finger Jointing Shaper Finger Joint Shaper Wood Jointer Production Line Making Finger Joint Cutter Machine

Product Description

Finger Jointing Shaper Finger Joint Shaper Wood Jointer production line Making Finger Joint Cutter Machine Product Description
Finger Joint machine can be used for cutting teeth for the production of fine wood, furniture, etc. It is suitable for the reprocessing of waste engineering wood. It is a mechanical processing equipment to improve the utilization rate of wood and the performance of wood.It is widely used in wood processing industry, especially suitable for construction company.
Wood finger joint machine is mainly used for making finger shape of wood, smear the glue on the tenon,and then put into the finger jointingt machine to make the wood connect tight, then use the wood cutter machine to cut the wanted length.
Finger Joint machine can make both horizontal and vertical finger joint, just adjust in the machine, no need to change or increase anything.
Finger Jointing Shaper Finger Joint Shaper Wood Jointer production line Making Finger Joint Cutter Machine
Finger Jointing Shaper Finger Joint Shaper Wood Jointer production line Making Finger Joint Cutter Machine
Finger Jointing Shaper Finger Joint Shaper Wood Jointer production line Making Finger Joint Cutter Machine
Product Parameters
Technical Parameter of Finger Joint Machine

Model	ELA-150A	ELA-150B
Feed length	150-850mm	150-850mm
Shaping Thickness	20-150mm	20-150mm
Width for workbench processing	550mm	550mm
Pressing thickness	30-100mm	30-100mm
Pressing width	30-150mm	30-150mm
Spindle diameter	40mm	40mm
Spindle speed	6750rpm	6750rpm
Saw blade spindle power	1.5kw*2	4kw*2
Saw blade spindle power	1.5kw*2	/
Spindle motor power	15kw*2	11kw*2
Belt conveyor power	0.75kw*5	/
Total motor power	42.75kw	30kw

Technical Parameter of Finger Joint Press

Model	ELA-80
Max. assembled length	2500mm
Max. working width	80mm
Max. working thickness	30mm
Min working length	100mm
Min working width	30mm
Min working thickness	10mm
Blade speed	2800r/min
Saw blade diameter	200mm
Saw motor power	2.2kw
Oil pump motor power	4kw
Working air pressure	0.5-0.8Mpa
Max thrust for oil pressure	3500kg
Max output	25m/min
Overall dimensions	4265*830*1470mm

Product Features
Features of Wood Finger Joint Machine :
1. Stable performance, high precision, long service life
2. The connection length can be adjusted as required
3. The spindle is precisely machined, assembled accurately, runs smoothly, and has good accuracy
4. Multiple sets of pressing wheels are used in the receiving of materials to ensure stable feeding and precise connection.
5. Reuse of waste wood to reduce business costs.
6. Fully automatic operation, saving a lot of labor.
7. The finger-joined plate has a long service life and is not easy to deform, which greatly improves the quality of the finished product.
8. It has a wide range of applications and can be applied to a series of wood products such as door panels, door frames, and desks.
9. The finger joint assembly machine part adopts a long + short design, through this structure, a very short workpiece can be assembled and the cost is reduced.

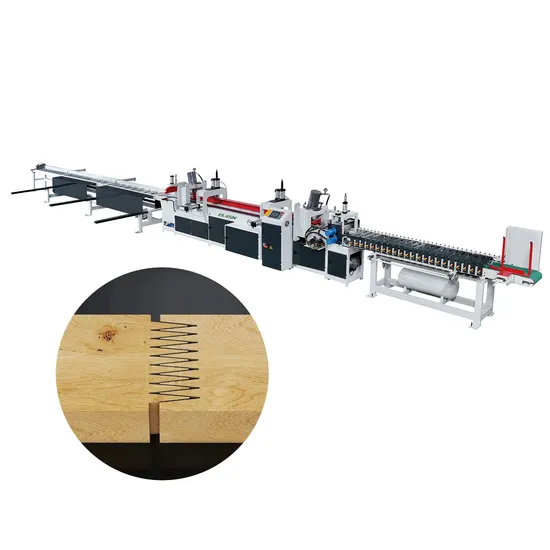

Whole Production Line
The finger joint machine is mainly used for splicing comb tenons of medium and short woods, such as the production of blockboard, transportation zygote, pillars, furniture, etc. It is to improve the utilization rate of wood, so as to longitudinally glue and join to make long-size specifications. Ideal processing equipment.
Product Line:
A: Strap conveyor → B: Finger joint shaper → C: Transition strap conveyor → D: Finger joint shaper(with Gluing) → E: Strap conveyor → F : Flip connection machine → G: Pre-press → H: Finger joint assembler → I: Saw cuuting platform
Finish Products:
1.Splicing Wood Strips
2.Wooden Strips Into Board

Detailed Photos
Company Profile
Henan Elasn Machinery Equipment Co., Ltd is located in Zhengzhou, central area of China, a traditional industrial city with rich culture and history. Away from Xinzheng international airport only half an hour, also have train to every main city of China.
"Business integrity, Quality first" is our principle. Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers.
"To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China."
All members of ELASN welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
Packaging & Shipping
After Sales Service-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.Technical Support- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
FAQ

Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
